Icon Forged Pistons · IC806KTD.064

Part #: IC806KTD.064
UPC: 800745177124

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Flat Top Piston and Ring Kits

Log in to order

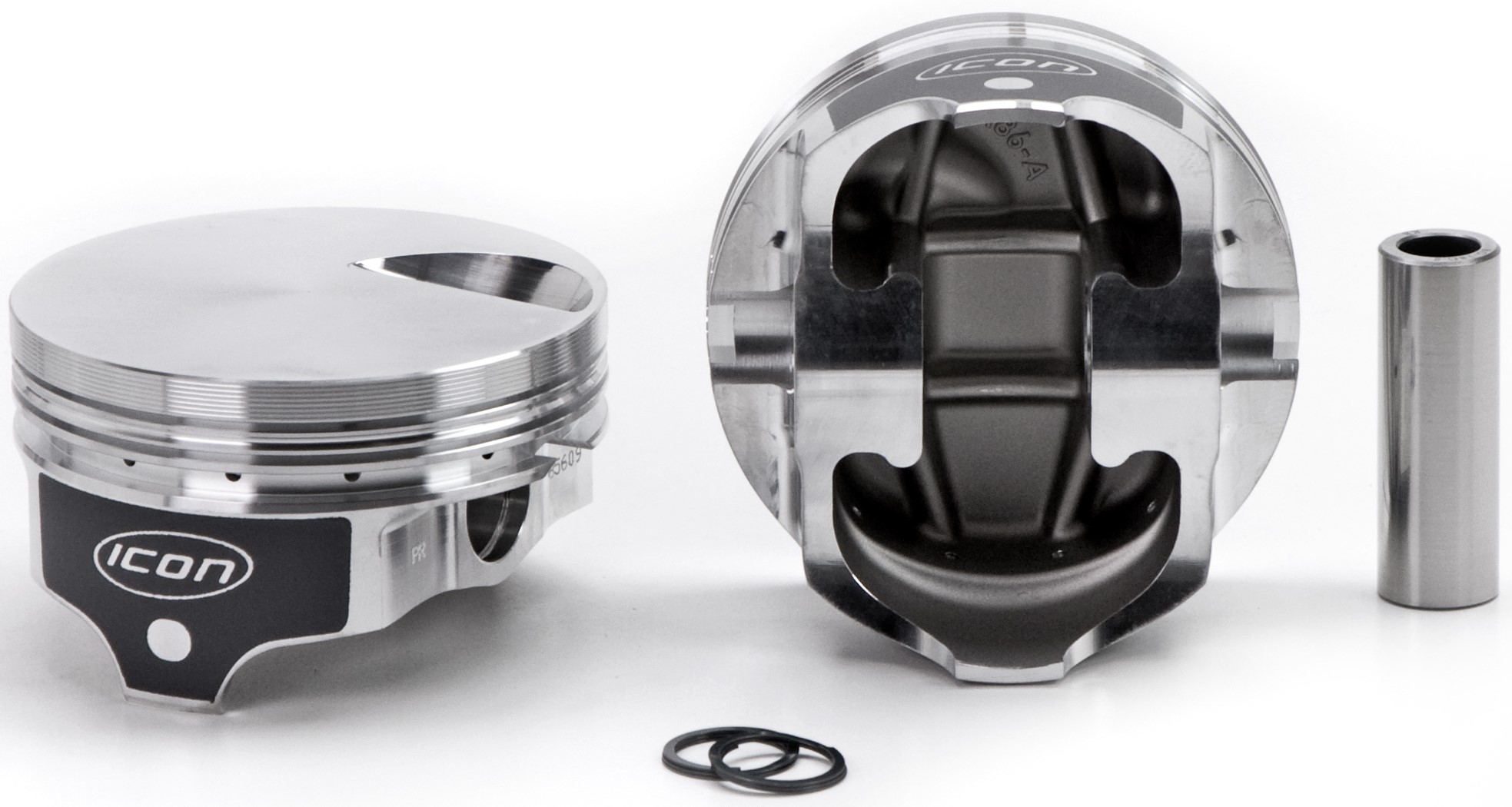

Description: ICON Forged Piston - Chevy 502 Rod 6.385 Flat Top +3cc 1V Kit with Rings

Description

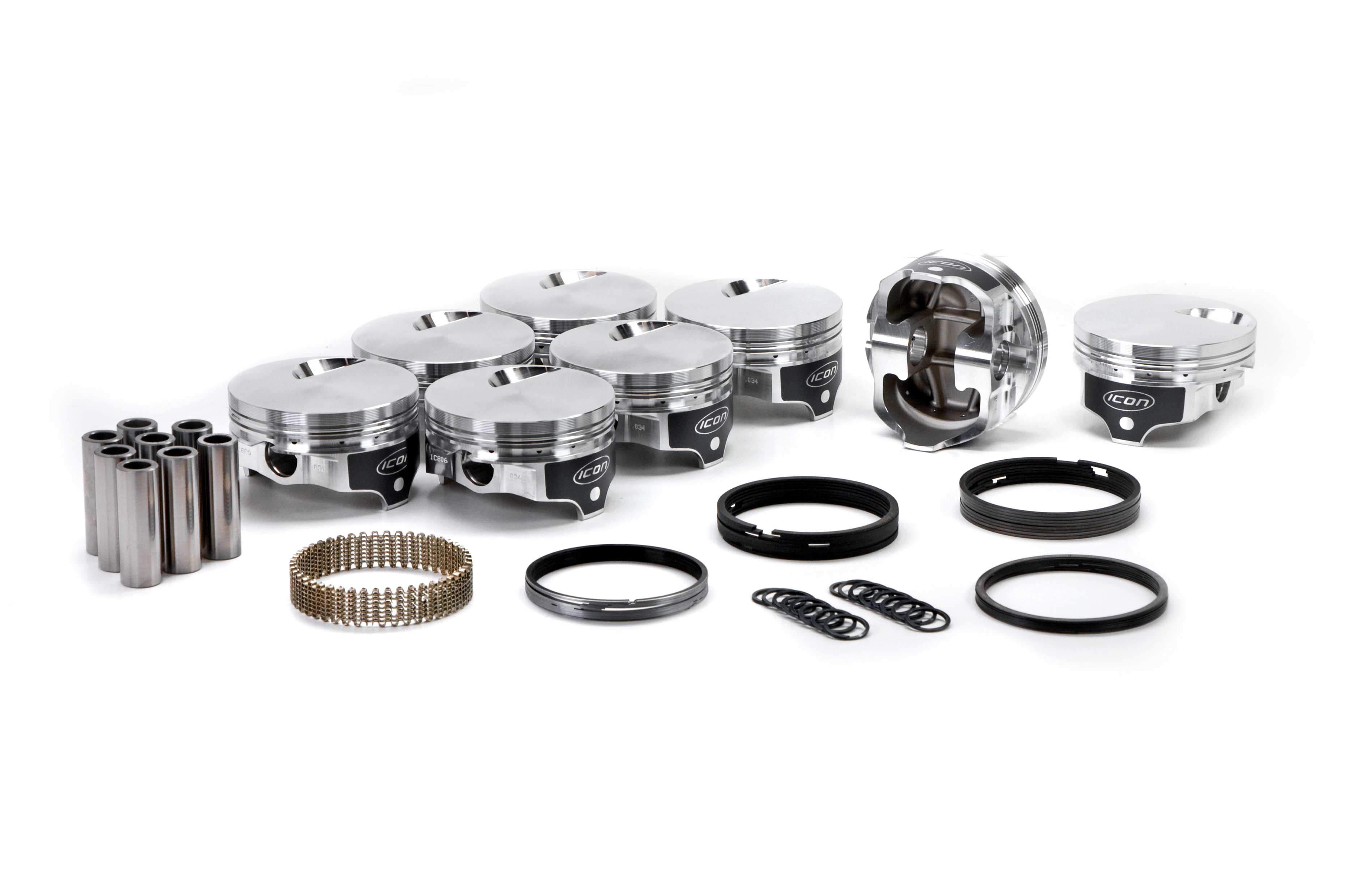

ICON Forged Piston - Chevy 502 Rod 6.385 Flat Top +3cc 1V Kit with Rings

Features & benefits

Centered pin. Includes spacer ring.

Specifications

GTIN: 00800745177124
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC806
Bore (in): 4.466
Bore (mm): 113.4
Compression Ratio: 96.5-10.5, 115-9.1, 119-8.9
Crown (cc): +3cc
Crown Type: FLAT TOP 1V
Eng. Disp Liters: 8.2
Eng. Disp. In.: 502
Engine Family: Chevrolet BB V8 Mark IV
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .302/2.374
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .064
Oversizes: .004 .034 .064 .100 .134
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.385
Rod (mm): 162.179
Sold As: KIT W/RINGS
Stroke (in): 4
Stroke (mm): 101.6
Top Land: .330
Year From: 1979
Year Range: 1979-1991
Year To: 1991

Fitment status

This product is universal and will fit your application.
