Icon Forged Pistons / IC784KTD.060
Part #: IC784KTD.060
UPC: 800745175533
Loading...
Notify me when this item is in stock.
Description: ICON Forged Piston - Chevy 427 Rod 6.385 Flat Top +3cc 1V or Chevy 489 Rod 6.135
Description:
Description

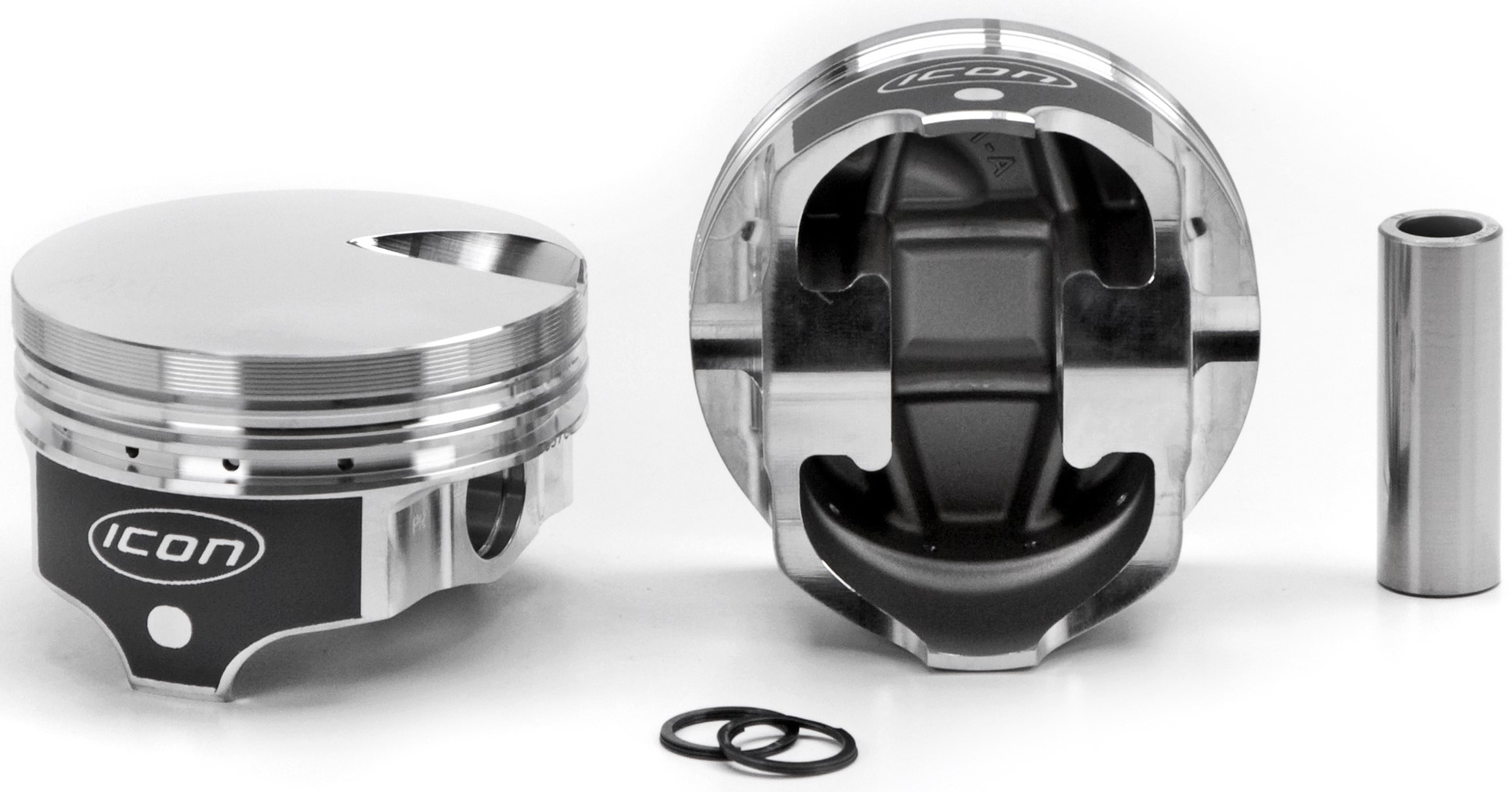

ICON Forged Piston - Chevy 427 Rod 6.385 Flat Top +3cc 1V or Chevy 489 Rod 6.135
Features & benefits
- Centered pin.
Specifications
- GTIN
- 00800745175533
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC784
- Bore (in)
- 4.25
- Bore (mm)
- 108.0
- Compression Ratio
- 96.5-9.7, 108-8.4, 119-7.7
- Crown (cc)
- +3cc
- Crown Type
- FLAT TOP 1V
- Eng. Disp Liters
- 7
- Eng. Disp. In.
- 427
- Engine Family
- Chevrolet BB V8 Mark IV
- Engine Manufacturer
- Chevrolet
- Intake Valve Depth/diameter
- .287/2.300
- Lock
- PRG110-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.8
- Oversize
- .060
- Oversizes
- STD .030 .040 .060 .070 .100
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.385
- Rod (mm)
- 162.179
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.76
- Stroke (mm)
- 95.5
- Top Land
- .350
- Year From
- 1963
- Year Range
- 1963-2015
- Year To
- 2015
Fitment status
This product is universal and will fit your application.

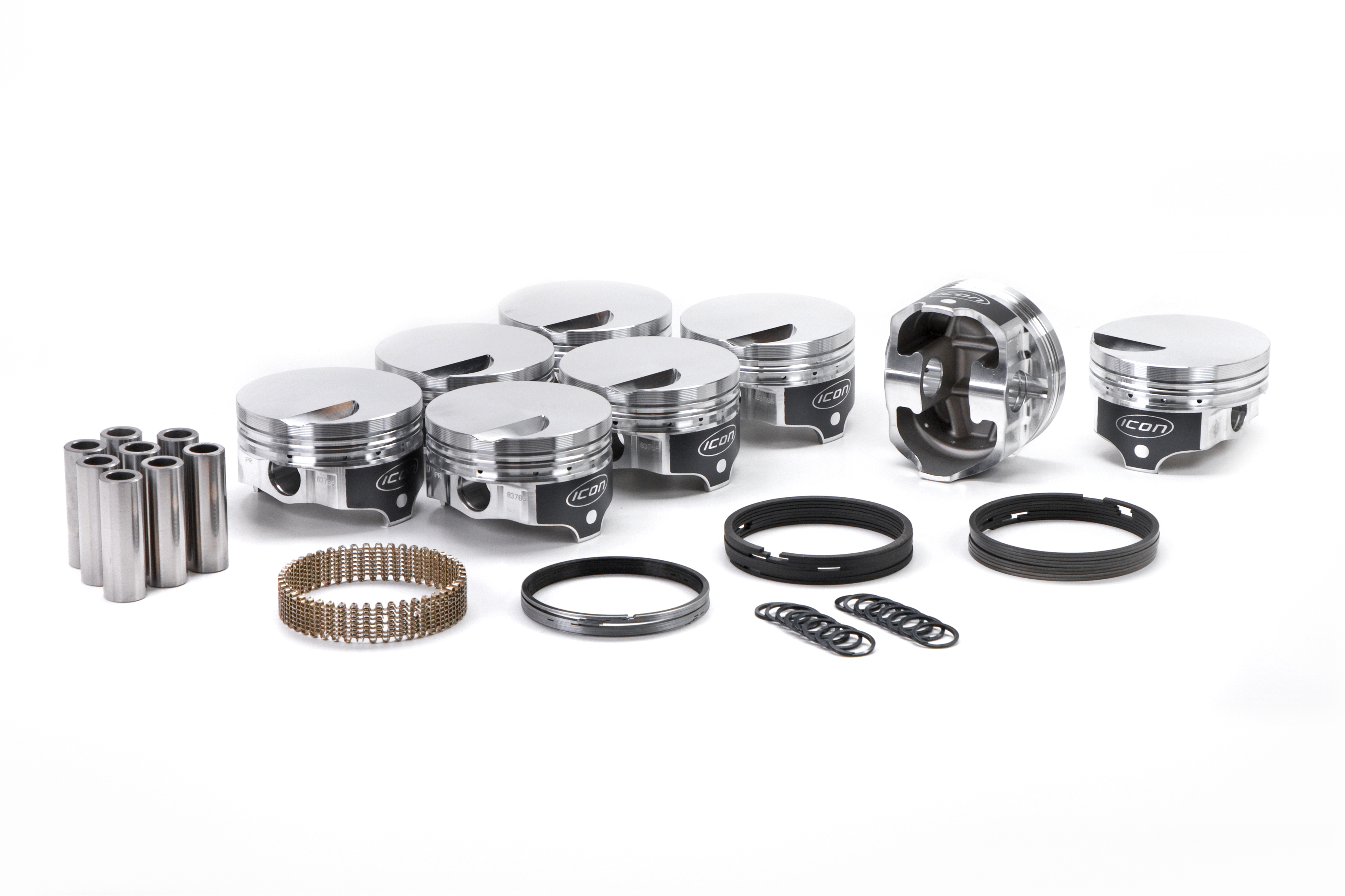

Icon Forged Pistons IC784KTD.060
