Icon Forged Pistons · IC782KTD.070

Part #: IC782KTD.070
UPC: 800745175427

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Hollow Dome Piston and Ring Kits

Log in to order

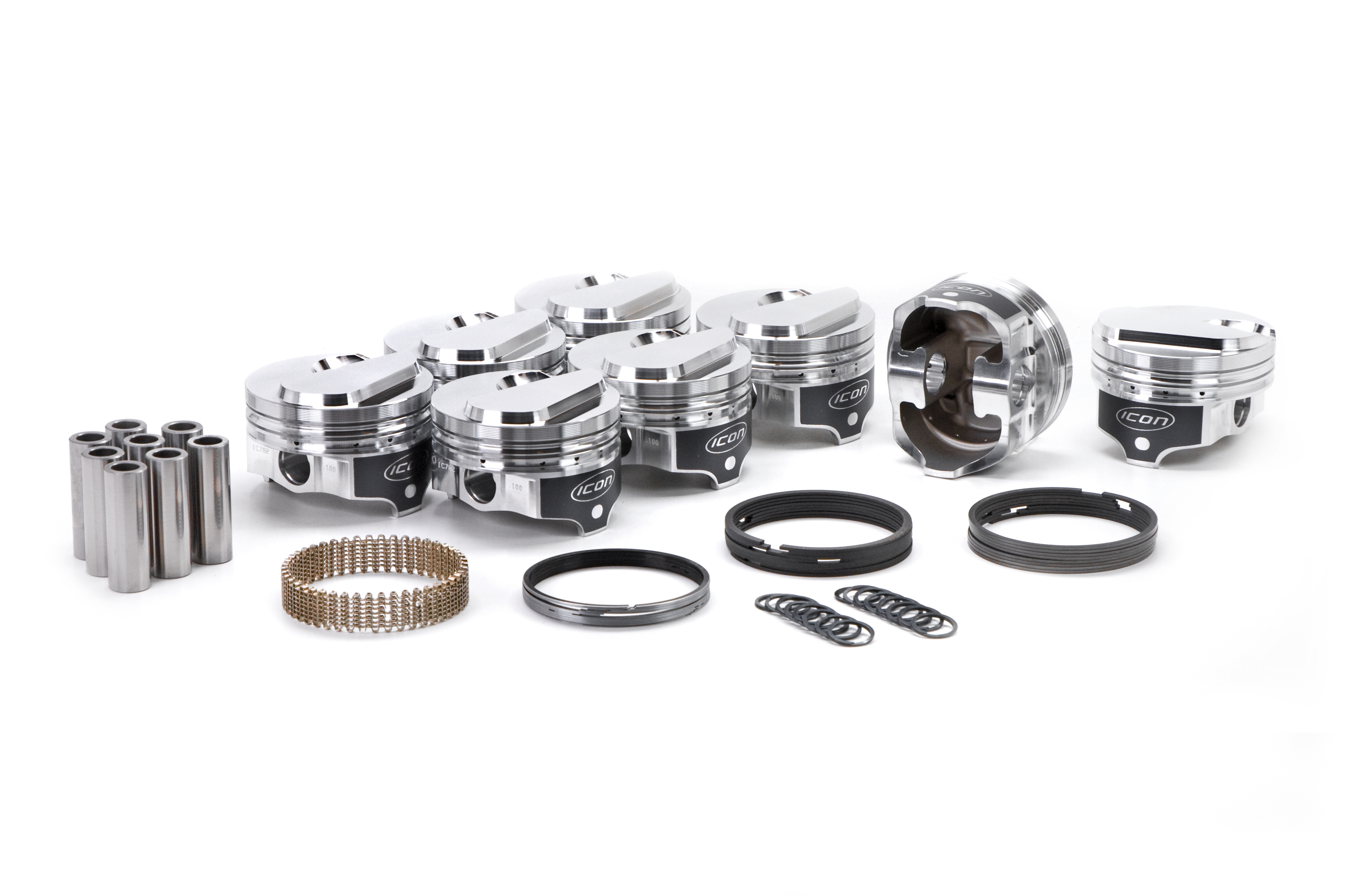

Description: ICON Forged Piston - Chevy 454 Rod 6.135 cc Hollow Dome -27cc 1V Kit with Rings

Description

ICON Forged Piston - Chevy 454 Rod 6.135 cc Hollow Dome -27cc 1V Kit with Rings

Features & benefits

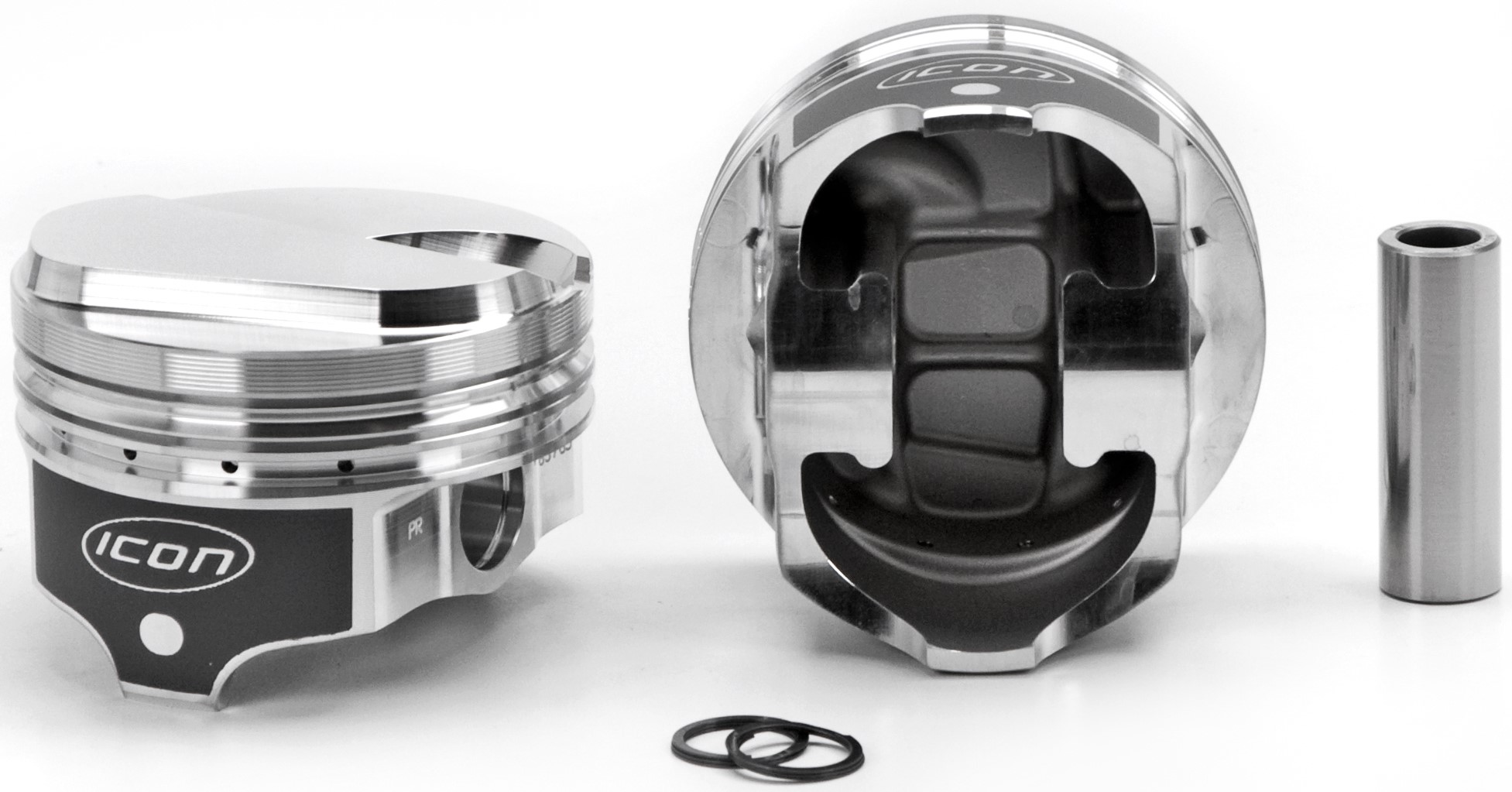

Closed Chamber design. Centered pin. Edelbrock and OE style heads. Does not fit Mark 6 heads.

Specifications

GTIN: 00800745175427
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC782
Bore (in): 4.25
Bore (mm): 108.0
Compression Ratio: 96.5-12.9, 115-10.7, 119-10.3
Crown (cc): -27cc
Crown Type: .290" HOLLOW DOME 1V
Eng. Disp Liters: 7.4
Eng. Disp. In.: 454
Engine Family: Chevrolet BB V8 Mark IV
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .286/2.300
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .070
Oversizes: STD .030 .040 .060 .070 .100
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.135
Rod (mm): 155.829
Sold As: KIT W/RINGS
Stroke (in): 4
Stroke (mm): 101.6
Top Land: .365
Year From: 1970
Year Range: 1970-2000
Year To: 2000

Fitment status

This product is universal and will fit your application.
