Icon Forged Pistons · IC749KTS.030

Part #: IC749KTS.030
UPC: 800745274250

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Dome Piston and Ring Kits

Log in to order

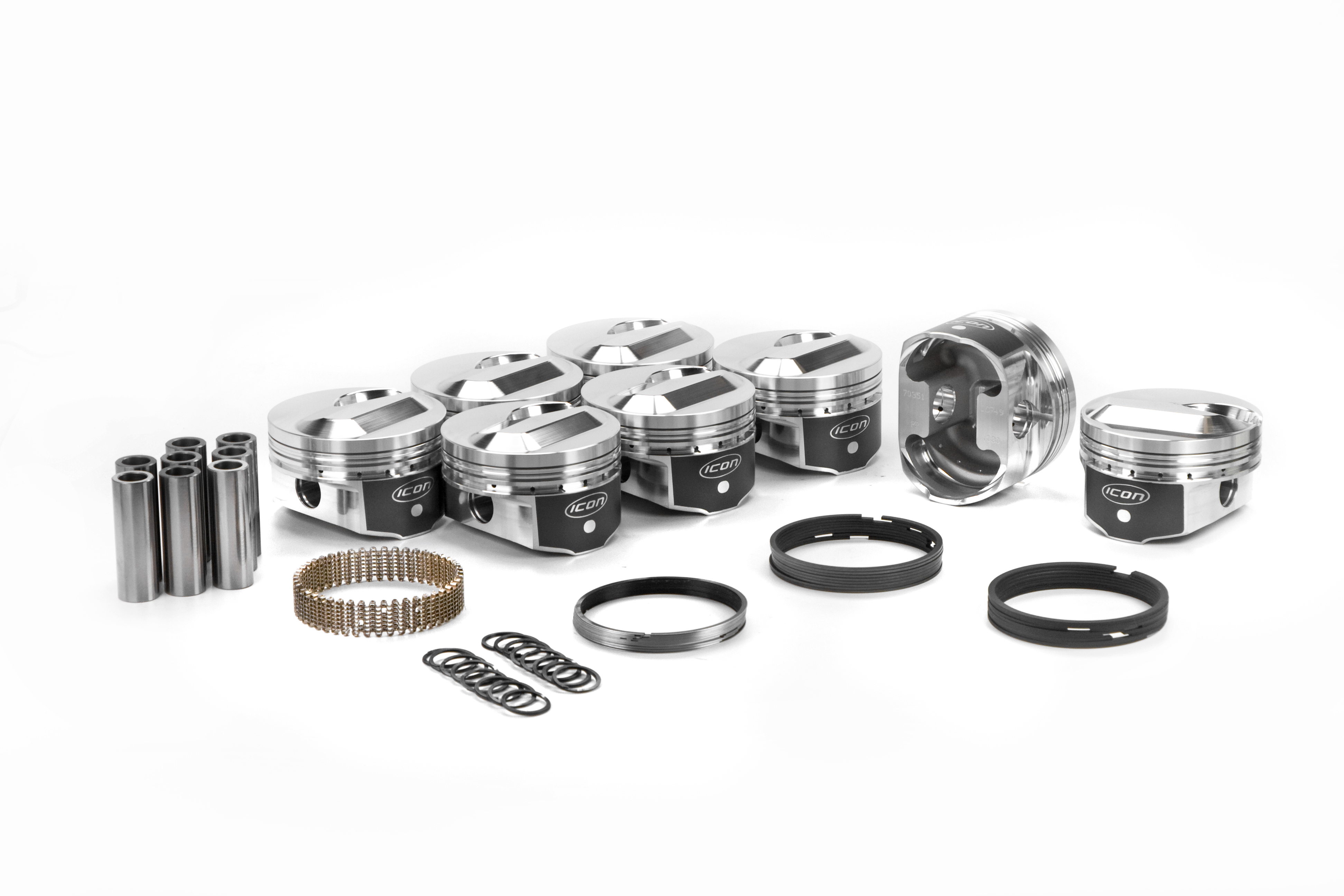

Description: ICON Forged Piston - Chevy BB, 4.500 Bore, -17cc OC Dome. Kit with Rings

Description

ICON Forged Piston - Chevy BB, 4.500 Bore, -17cc OC Dome. Kit with Rings

Features & benefits

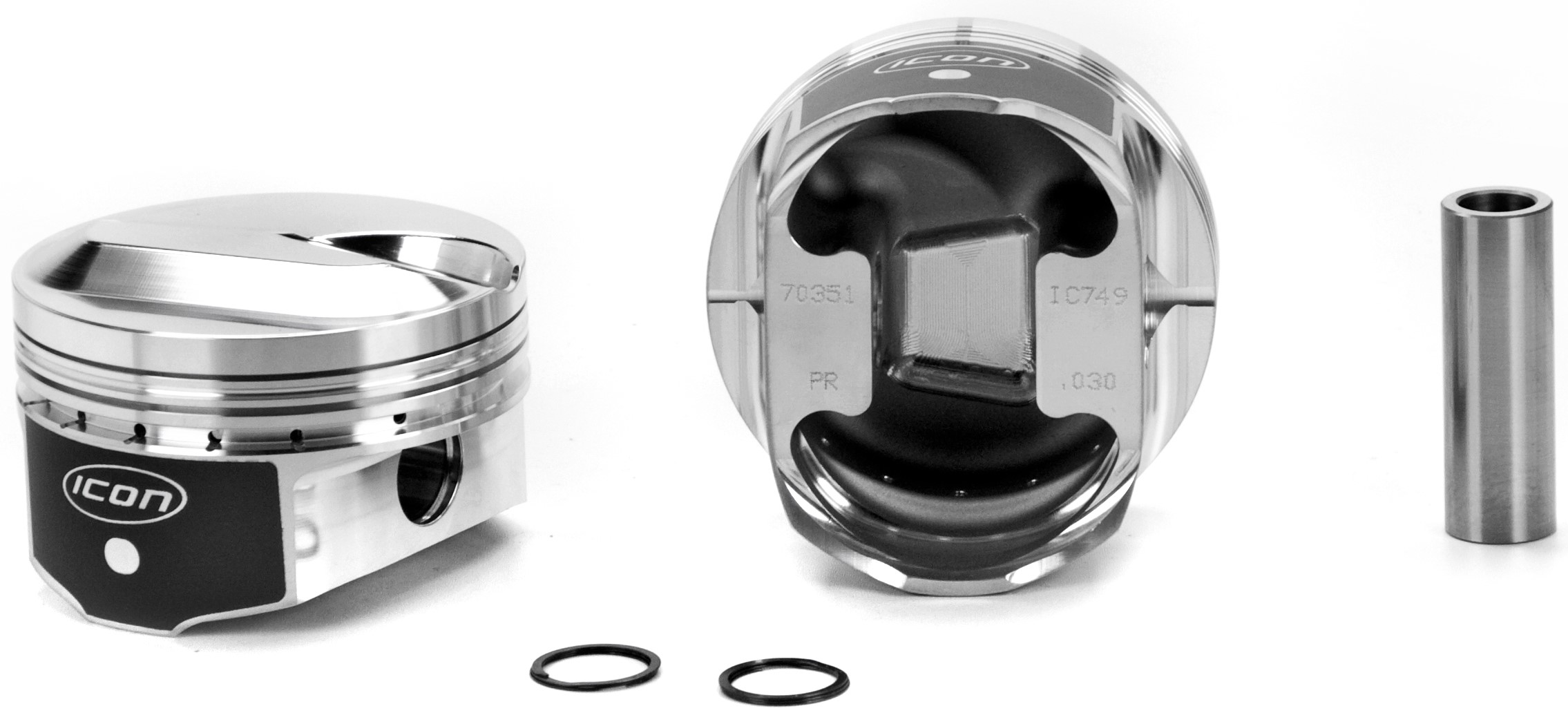

Centered pin. Open chamber hollow dome.

Specifications

GTIN: 00800745274250
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 4032
Base Number: IC749
Bore (in): 4.5
Bore (mm): 114.3
Compression Ratio: 119-10.3
Crown (cc): -17cc
Crown Type: DOME SOLID 2V
Eng. Disp Liters: 8.3
Eng. Disp. In.: 509
Engine Family: Chevrolet BB V8 Mark IV
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .340/2.536
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.800
Oversize: .030
Oversizes: STD .030 .630 .100 .110 .125
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: G9902930185
Pin Type: Press or Floating
Ring Pack: .043", 1/16, 3/16
Rod (in): 6.135
Rod (mm): 155.829
Sold As: KIT W/RINGS
Stroke (in): 4
Stroke (mm): 101.6
Top Land: .350
Year Range: -

Fitment status

This product is universal and will fit your application.
