Icon Forged Pistons · IC745KTD.STD
Part #: IC745KTD.STD
UPC: 800745172976
Log in for inventory
Notify me when this item is in stock.

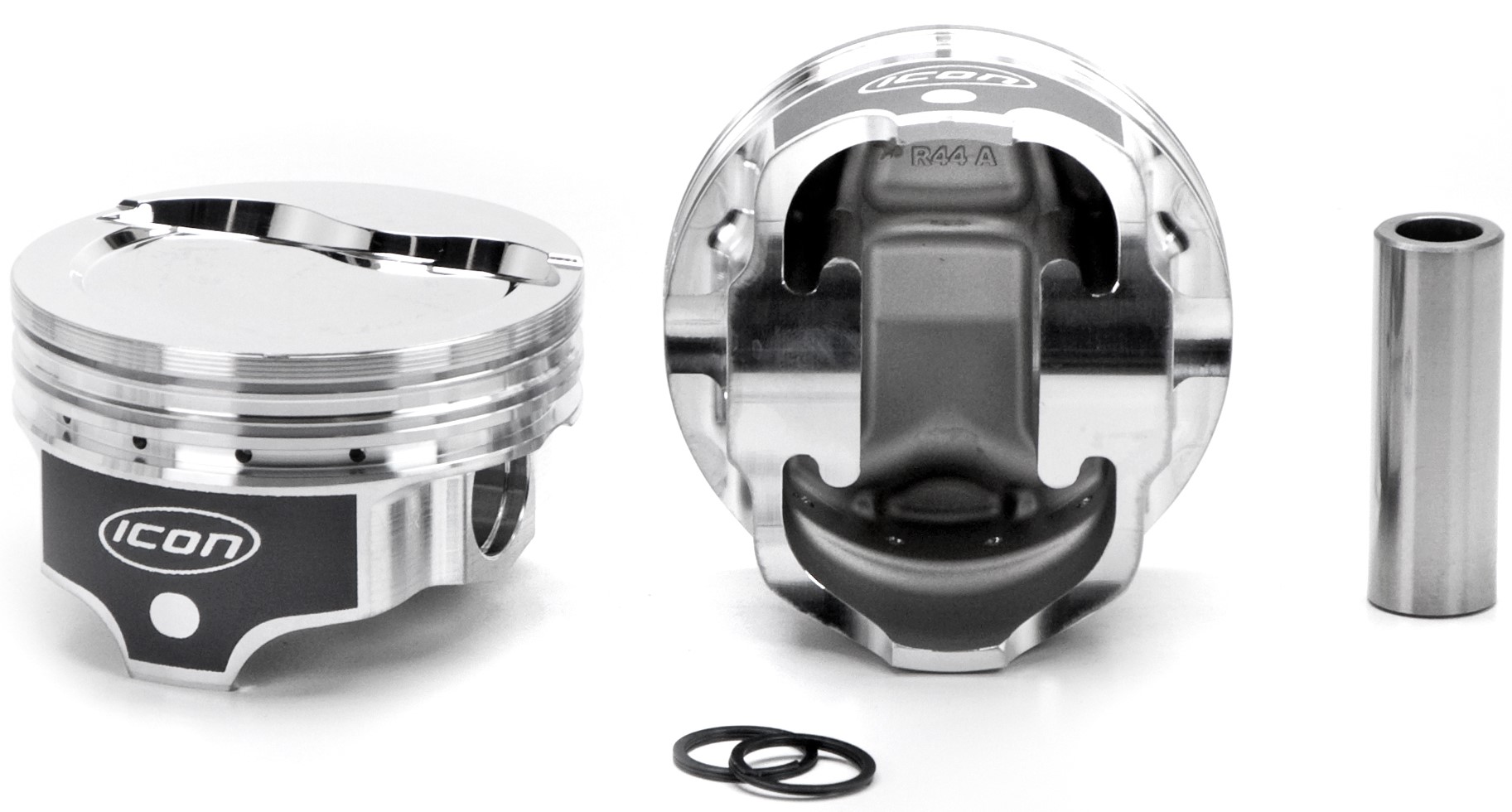

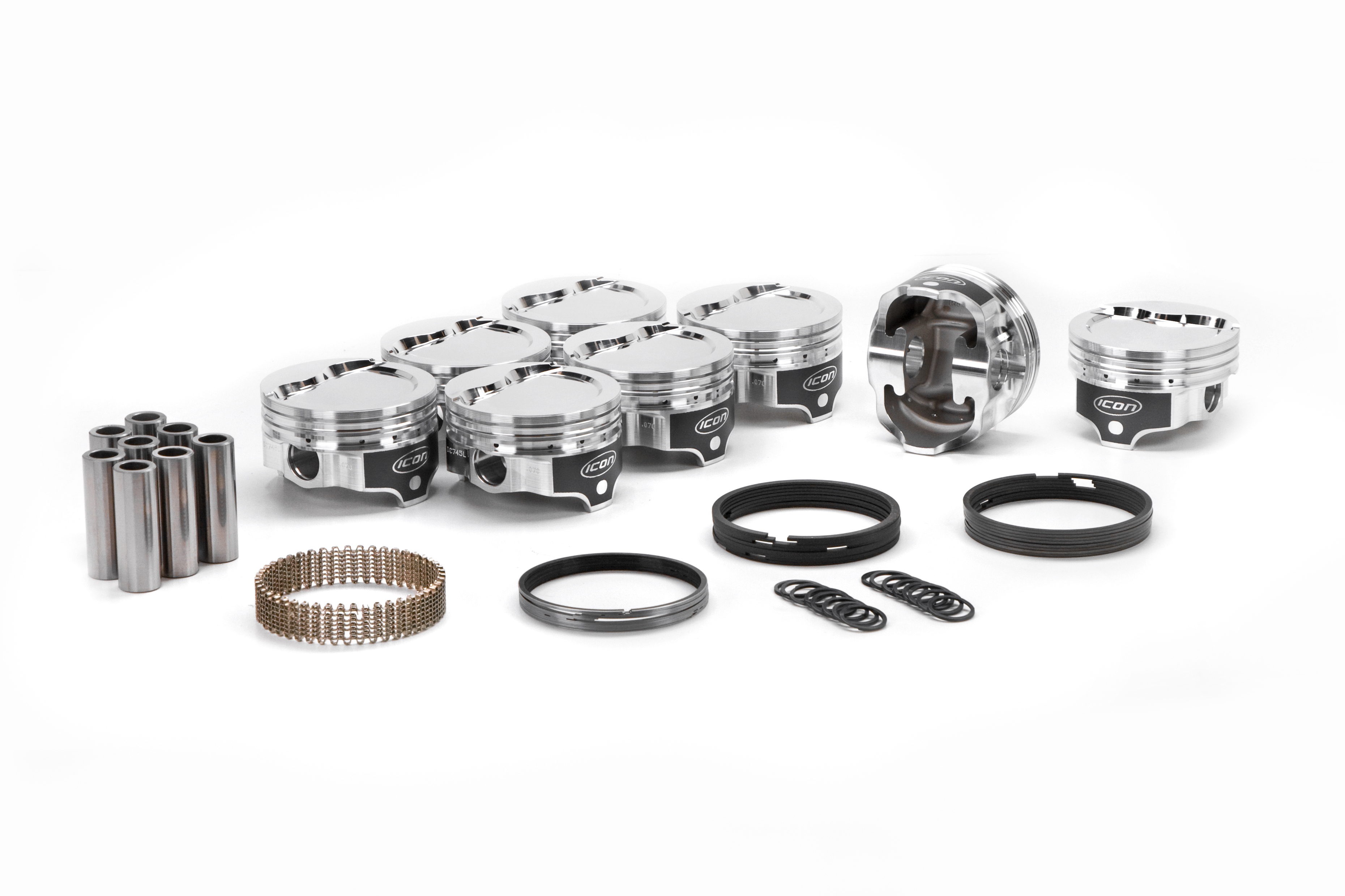

Description: ICON Forged Piston - Chry 408 Rod 6.123 Step Dish +20.5cc 2V Kit with Rings
Description:
Description
ICON Forged Piston - Chry 408 Rod 6.123 Step Dish +20.5cc 2V Kit with Rings
Features & benefits
- Centered pin. May require thicker head gaskets on 1992 and later Magnum truck blocks. Some stock rods may need to be narrowed. LA rod must be narrowed to 1.000.
Specifications
- GTIN
- 00800745172976
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC745
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 60-10.4, 65-9.9, 70-9.4
- Crown (cc)
- +20.5cc
- Crown Type
- STEP DISH 2V
- Eng. Disp Liters
- 6.7
- Eng. Disp. In.
- 408
- Engine Family
- Mopar Small Block LA
- Engine Manufacturer
- Chrysler
- Exhaust Valve Depth/diameter
- .231/1.720
- Intake Valve Depth/diameter
- .243/2.200
- Lock
- PRH107-3
- Make For Engine Family
- Mopar
- Oe Deck Height
- 9.599
- Oversize
- STD
- Oversizes
- STD .030 .040 .060 .070 .080
- Pin Configuration
- Centered
- Pin Diameter (in)
- .984
- Pin Diameter (mm)
- 25.0
- Pin Number
- .984x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.123
- Rod (mm)
- 155.5242
- Sold As
- KIT W/RINGS
- Stroke (in)
- 4
- Stroke (mm)
- 101.6
- Top Land
- .272
- Year From
- 1959
- Year Range
- 1959-2010
- Year To
- 2010
Fitment status
This product is universal and will fit your application.
