Icon Forged Pistons · IC689KTD.060
Part #: IC689KTD.060
UPC: 800745237002
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Chry 431 Rod 6.760 Flat Top +4.5cc or Rod 6.535 Flat Top
Description:
Description

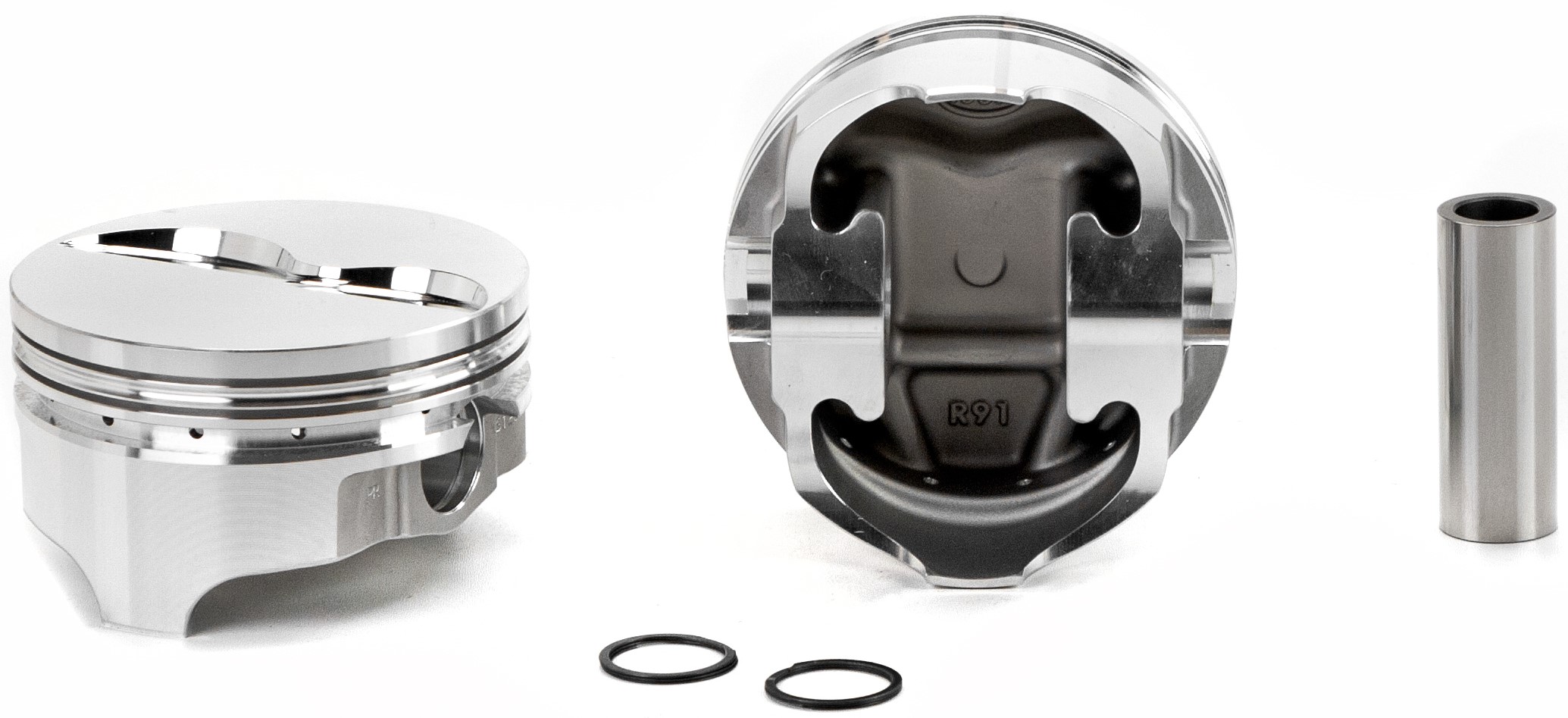

ICON Forged Piston - Chry 431 Rod 6.760 Flat Top +4.5cc or Rod 6.535 Flat Top
Features & benefits
- Centered pin. Fits Indy, Edelbrock, 440 Source and OE heads. No STD size. Designed for 383 block with 3.750 stroke and 6.760 rod. Ratios calculated with block machined to .000 deck clearance. .990 wrist pin.
Specifications
- GTIN
- 00800745237002
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC689
- Bore (in)
- 4.25
- Bore (mm)
- 108.0
- Compression Ratio
- 75-12.3L, 80-11.7, 88-10.8
- Crown (cc)
- +4.5cc
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 7.1
- Eng. Disp. In.
- 431
- Engine Family
- Mopar Big Block B
- Engine Manufacturer
- Chrysler
- Exhaust Valve Depth/diameter
- .199/1.880
- Intake Valve Depth/diameter
- .218/2.300
- Lock
- PRG110-3
- Make For Engine Family
- Mopar
- Oe Deck Height
- 9.98
- Oversize
- .060
- Oversizes
- STD .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .990
- Pin Diameter (mm)
- 25.1
- Pin Number
- .990x300K
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 6.76
- Rod (mm)
- 171.704

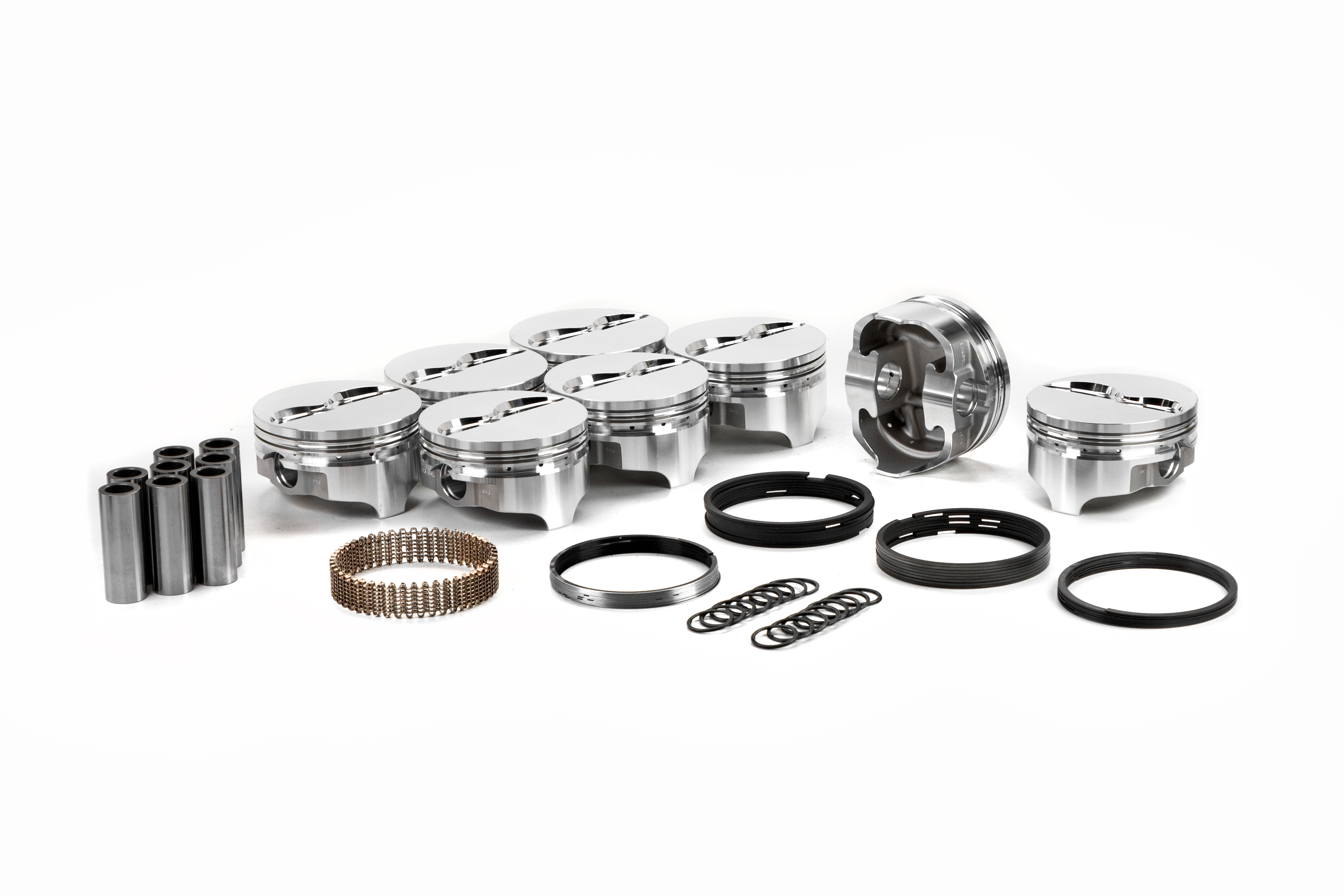

- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.75
- Stroke (mm)
- 95.3
- Top Land
- .250
- Year Range
- -
Fitment status
This product is universal and will fit your application.
