Icon Forged Pistons · IC686KTD.030
Part #: IC686KTD.030
UPC: 800745235282
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Ford Boss 302 Rod 5.155 Dome -6cc V8 - Kit with rings
Description:
Description

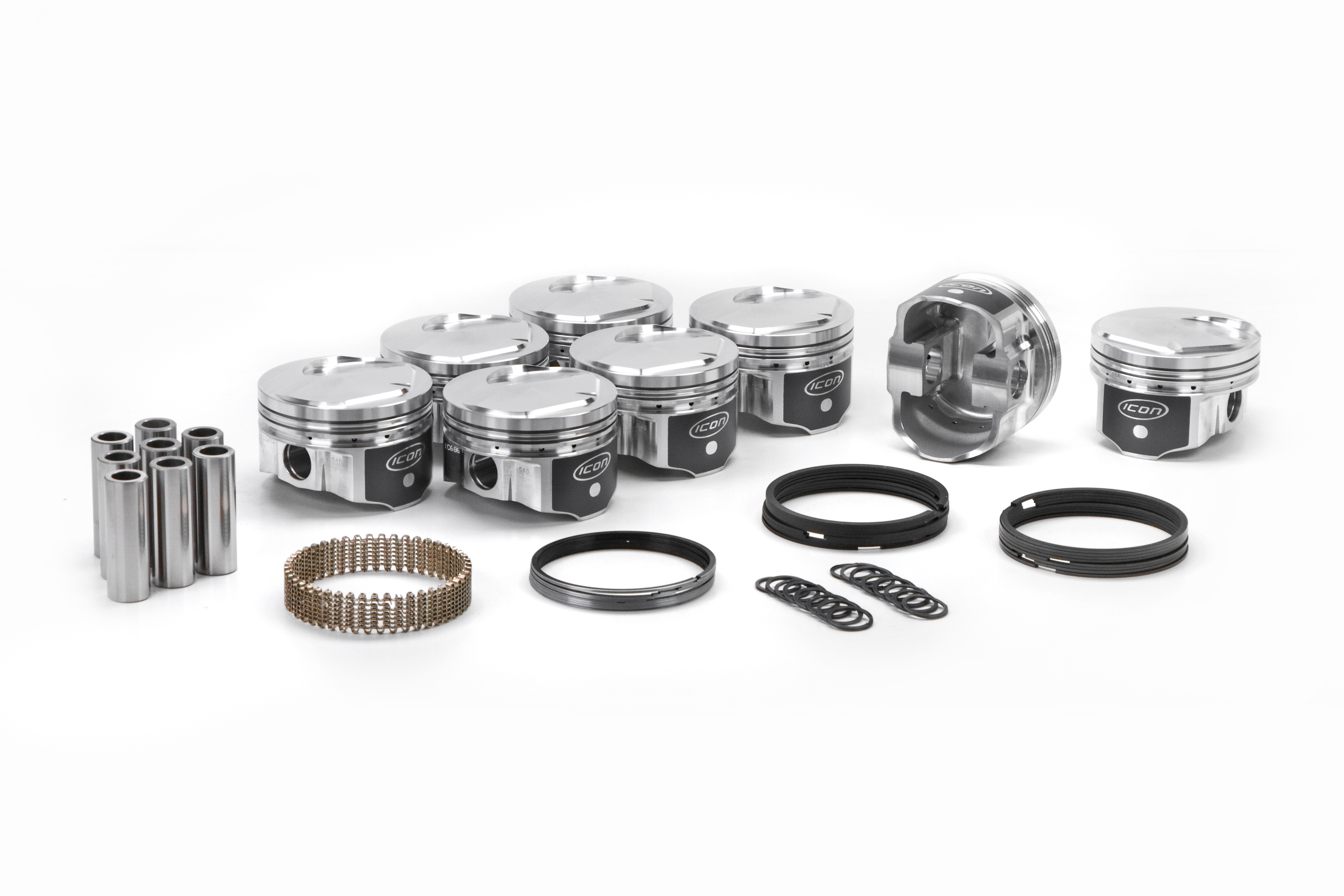

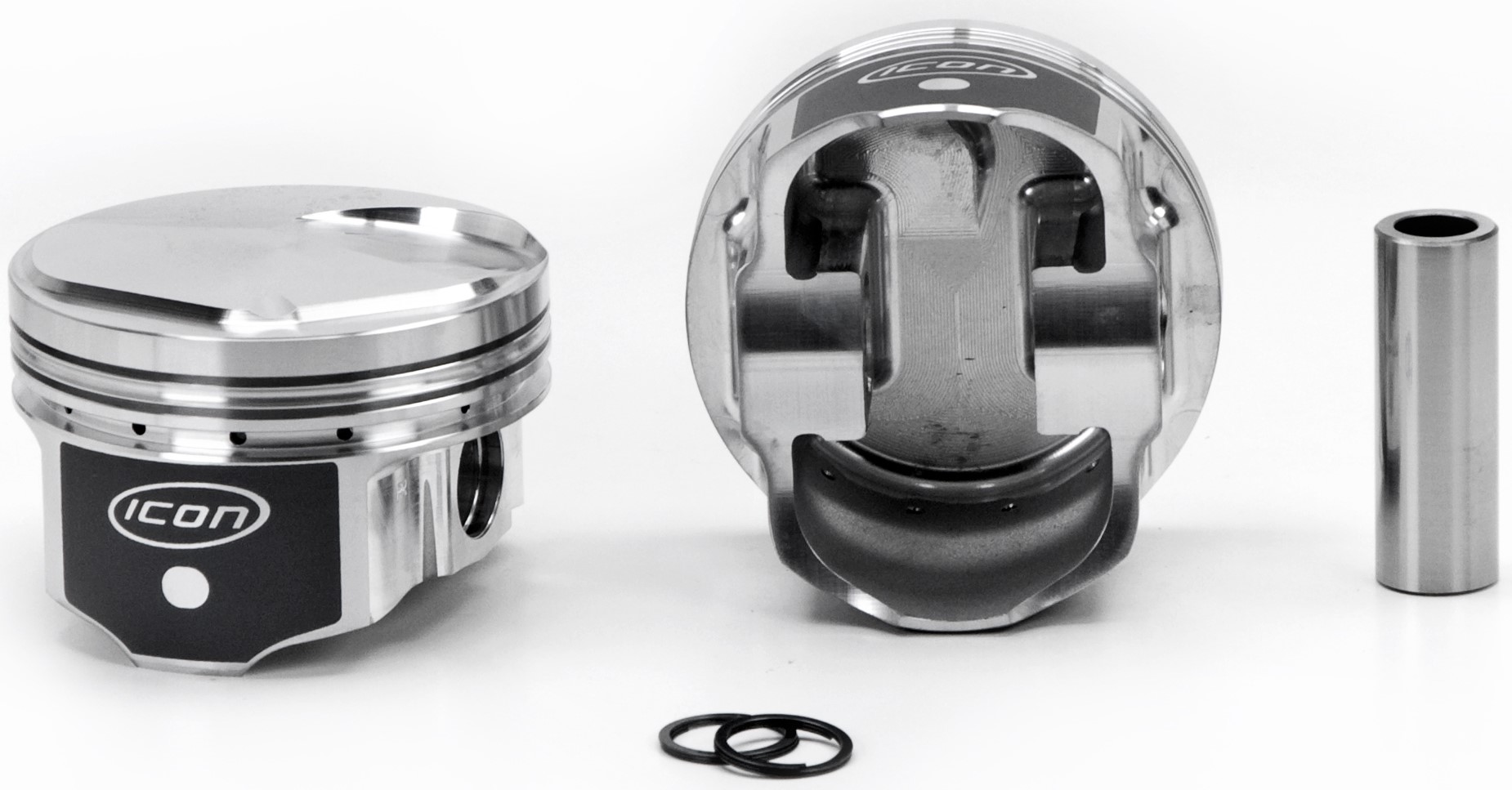

ICON Forged Piston - Ford Boss 302 Rod 5.155 Dome -6cc V8 - Kit with rings
Features & benefits
- Centered pin. Designed for factory or clone Boss 302 with Cleveland style heads.
Specifications
- GTIN
- 00800745235282
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 4032
- Base Number
- IC686
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 52-12.5, 60-11.0, 64-10.5
- Crown (cc)
- -6cc
- Crown Type
- DOME
- Eng. Disp Liters
- 5
- Eng. Disp. In.
- 302
- Engine Family
- Ford SB V8 Windsor
- Engine Manufacturer
- Ford
- Intake Valve Depth/diameter
- .186/2.360
- Lock
- PRL99-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 8.206
- Oversize
- .030
- Oversizes
- STD .020 .030 .040
- Pin Configuration
- Centered
- Pin Diameter (in)
- .912
- Pin Diameter (mm)
- 23.16
- Pin Number
- .912x2.750
- Pin Type
- Press or Floating
- Ring Pack
- 1/16, 1/16, 3/16
- Rod (in)
- 5.155
- Rod (mm)
- 130.937
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3
- Stroke (mm)
- 76.2
- Top Land
- .301
- Year From
- 1942
- Year Range
- 1942-2018
- Year To
- 2018
Fitment status
This product is universal and will fit your application.
Icon Forged Pistons IC686KTD.030
