Icon Forged Pistons · IC672CKTD.STD
Part #: IC672CKTD.STD
UPC: 800745234100
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston Kit - GM 6.0L LS2 V8 +4.3cc Flat Top with Rings
Description:
Description

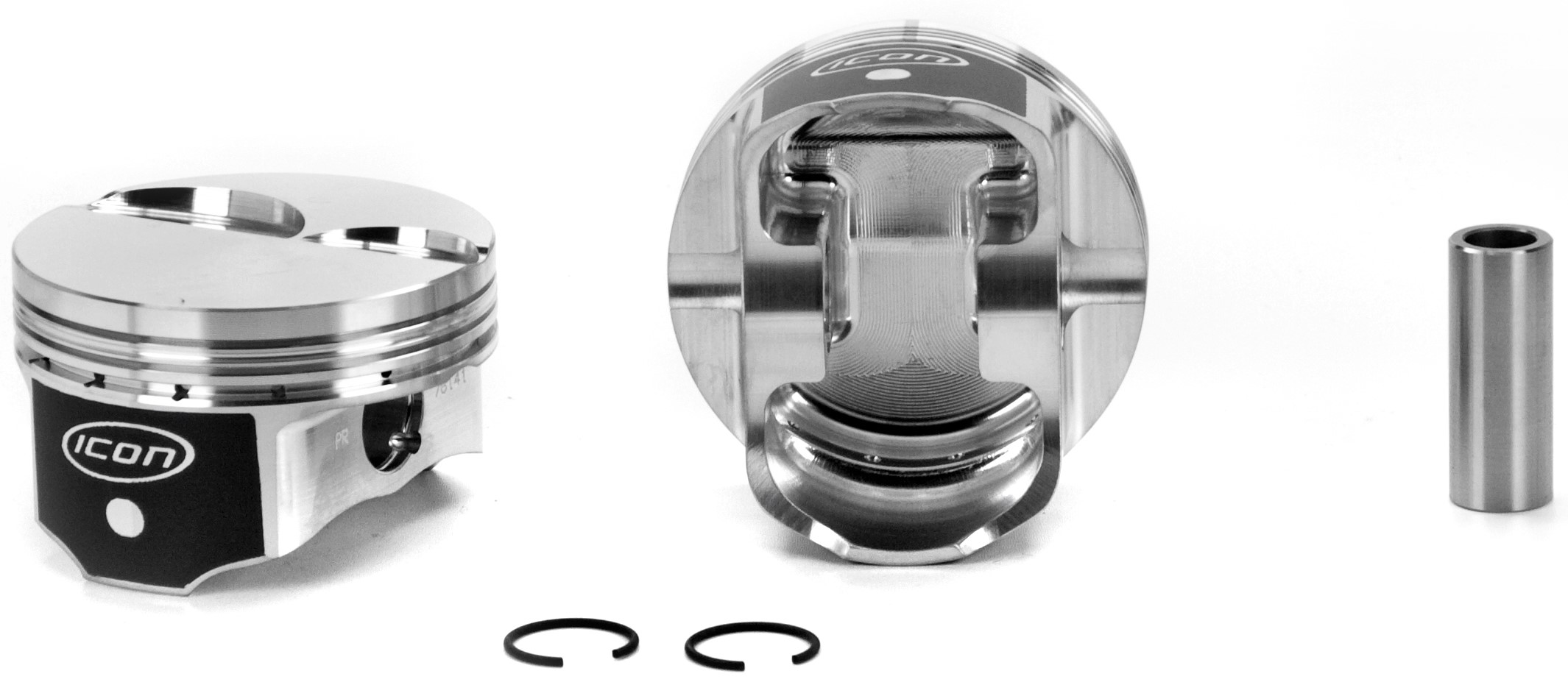

ICON Forged Piston Kit - GM 6.0L LS2 V8 +4.3cc Flat Top with Rings
Features & benefits
- Centered pin. 15 degree valve angle. Standard skirt coating.
Specifications
- GTIN
- 00800745234100
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 4032
- Base Number
- IC672C
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 64.5-10.5, 68.4-10.1, 70-9.9
- Crown (cc)
- +5.7cc
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 6.0
- Eng. Disp. In.
- 364
- Engine Family
- Chevrolet SB V8 Gen III/IV (LS2/LS3/LSA/LS9/L99 6.0/6.2L Block)
- Engine Manufacturer
- GM
- Exhaust Valve Depth/diameter
- .170/1.720
- Intake Valve Depth/diameter
- .243/2.270
- Lock
- SRW-025
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.24
- Oversize
- STD
- Oversizes
- STD .005 .010
- Pin Configuration
- Centered
- Pin Diameter (in)
- .945
- Pin Diameter (mm)
- 24.0
- Pin Number
- 945x2.250x.150C
- Pin Type
- Press or Floating
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 6.098
- Rod (mm)
- 154.8892
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.622
- Stroke (mm)
- 92.0
- Top Land
- .270
- Year Range
- -
Fitment status
This product is universal and will fit your application.
