Icon Forged Pistons · IC631KTD.010

Part #: IC631KTD.010
UPC: 800745229335

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Flat Top Piston and Ring Kits

Log in to order

Description: ICON Forged Piston - Pont 455 Big Bore Rod 6.8 Flat Top +15.4cc Kit with Rings

Description

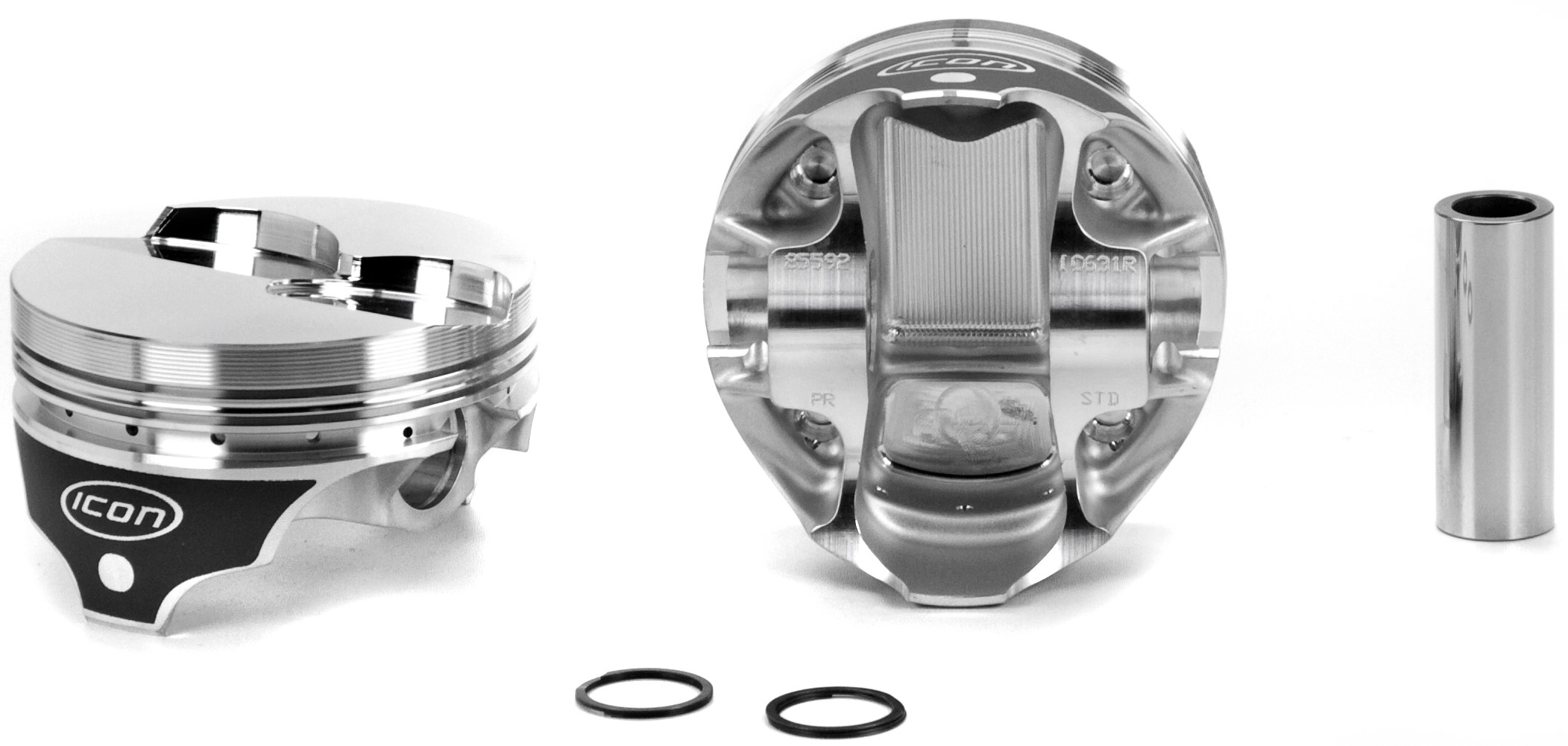

ICON Forged Piston - Pont 455 Big Bore Rod 6.8 Flat Top +15.4cc Kit with Rings

Features & benefits

Centered pin, .990 pin for use with aftermarket rods. Standard bore for this piston is considered 4 .350. Ring set 4320BD8 .035 for STD and .005, 4320BD8 .040 for .010 .

Specifications

GTIN: 00800745229335
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC631
Bore (in): 4.35
Bore (mm): 110.5
Compression Ratio: 50-14.4, 65-12.2, 72-11.5, 87-10.1
Crown (cc): +15.4cc
Crown Type: FLAT TOP 2V
Eng. Disp Liters: 8.3
Eng. Disp. In.: 505
Engine Family: Pontiac V8
Engine Manufacturer: Pontiac
Exhaust Valve Depth/diameter: .336/2.012
Intake Valve Depth/diameter: .334/2.508
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 10.25
Oversize: .010
Oversizes: STD .005 .010
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: .990x2.750
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.8
Rod (mm): 172.72
Sold As: KIT W/RINGS
Stroke (in): 4.25
Stroke (mm): 108.0
Top Land: .386
Year Range: -

Fitment status

This product is universal and will fit your application.
