Icon Forged Pistons · IC617KTD.030
Part #: IC617KTD.030
UPC: 800745229052
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Ford 369 Rod 5.400 Hollow dome -4.87cc Kit with Rings
Description:
Description

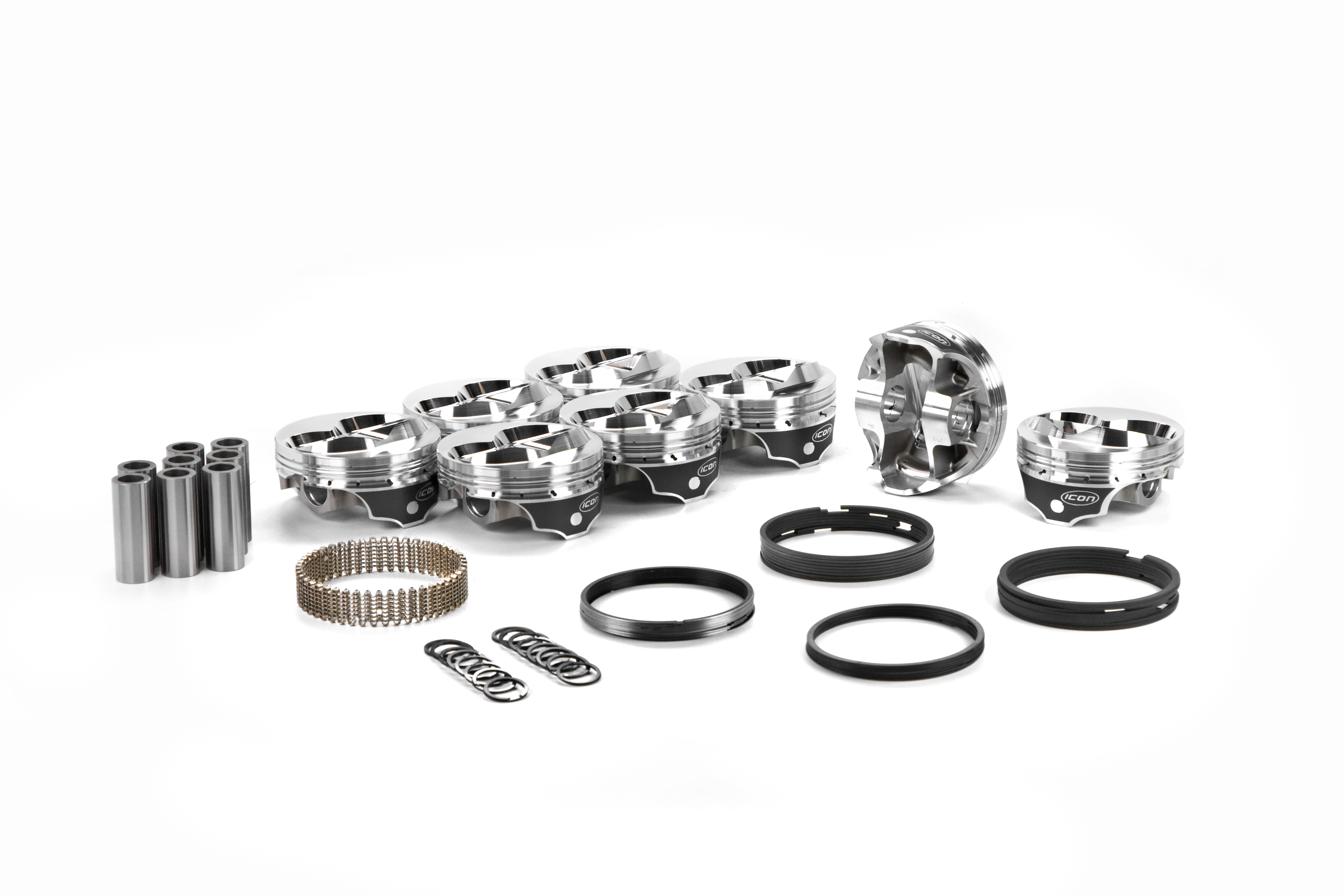

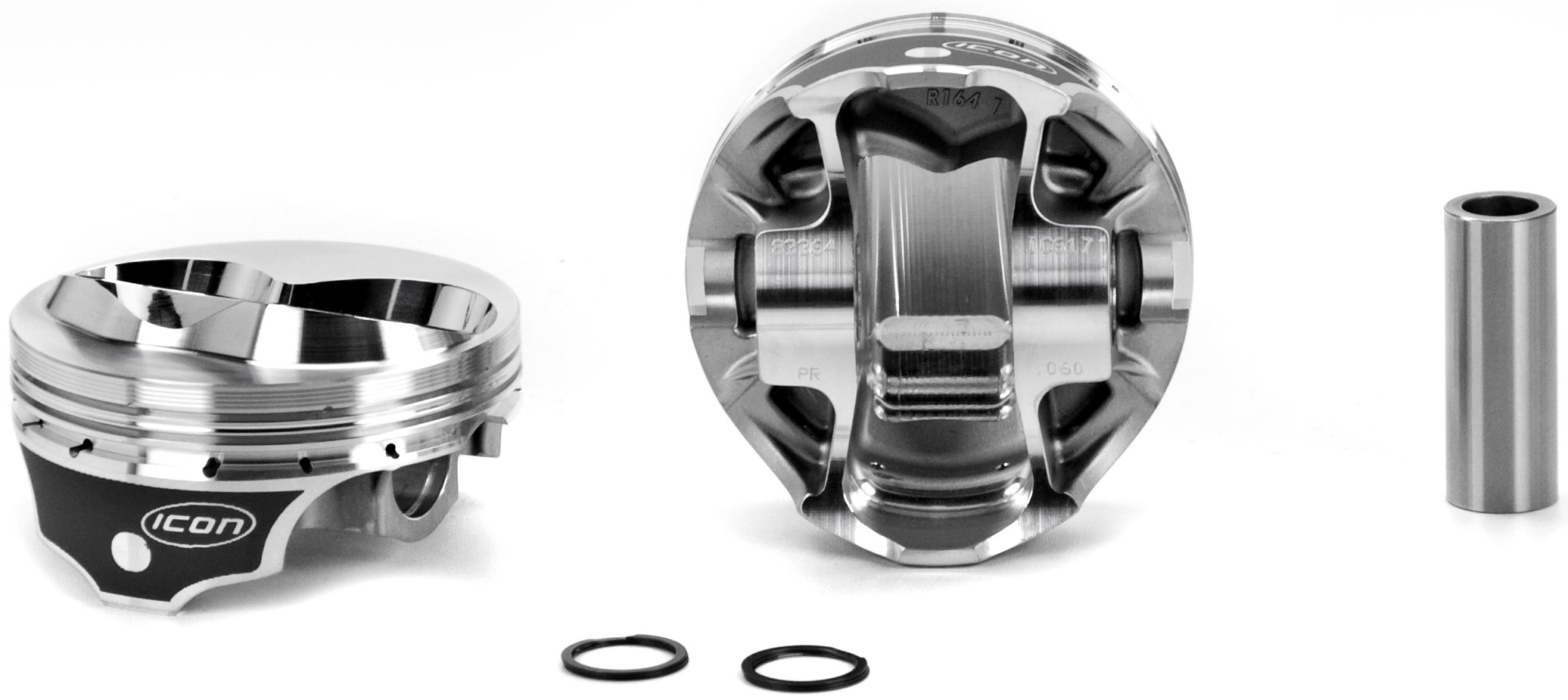

ICON Forged Piston - Ford 369 Rod 5.400 Hollow dome -4.87cc Kit with Rings
Features & benefits
- Lateral gas ports. Centered pin. Can be used with Dart, Edelbrock, Pro-Comp, RHS & World Products cylinder heads. Cylinder heads not listed or that have been modified must be checked for proper clearance.
Specifications
- GTIN
- 00800745229052
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC617
- Bore (in)
- 4.125
- Bore (mm)
- 104.8
- Compression Ratio
- 54-14.0, 58-13.2, 64-12.1
- Crown (cc)
- -4.9cc
- Crown Type
- .405" HOLLOW DOME
- Eng. Disp Liters
- 6.0
- Eng. Disp. In.
- 369
- Engine Family
- Ford SB V8 Aftermarket Block
- Engine Manufacturer
- Ford
- Exhaust Valve Depth/diameter
- .262/1.850
- Intake Valve Depth/diameter
- .331/2.250
- Lock
- PRJ100-3
- Make For Engine Family
- Ford
- Oe Deck Height
- 8.2
- Oversize
- .030
- Oversizes
- STD .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 927x2.500
- Pin Type
- Press or Floating
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 5.4
- Rod (mm)
- 137.16
- Sold As
- KIT W/RINGS
- Stroke (in)
- 3.4
- Stroke (mm)
- 86.4
- Top Land
- .245
- Year From
- 1956
- Year Range
- 1956-2010
- Year To
- 2010
Fitment status
This product is universal and will fit your application.
