Icon Forged Pistons · IC611KTD.040
Part #: IC611KTD.040
UPC: 800745245021
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston - Chevy 434 Rod 6.000 Flat Top +8cc 2V Kit with Rings
Description:
Description

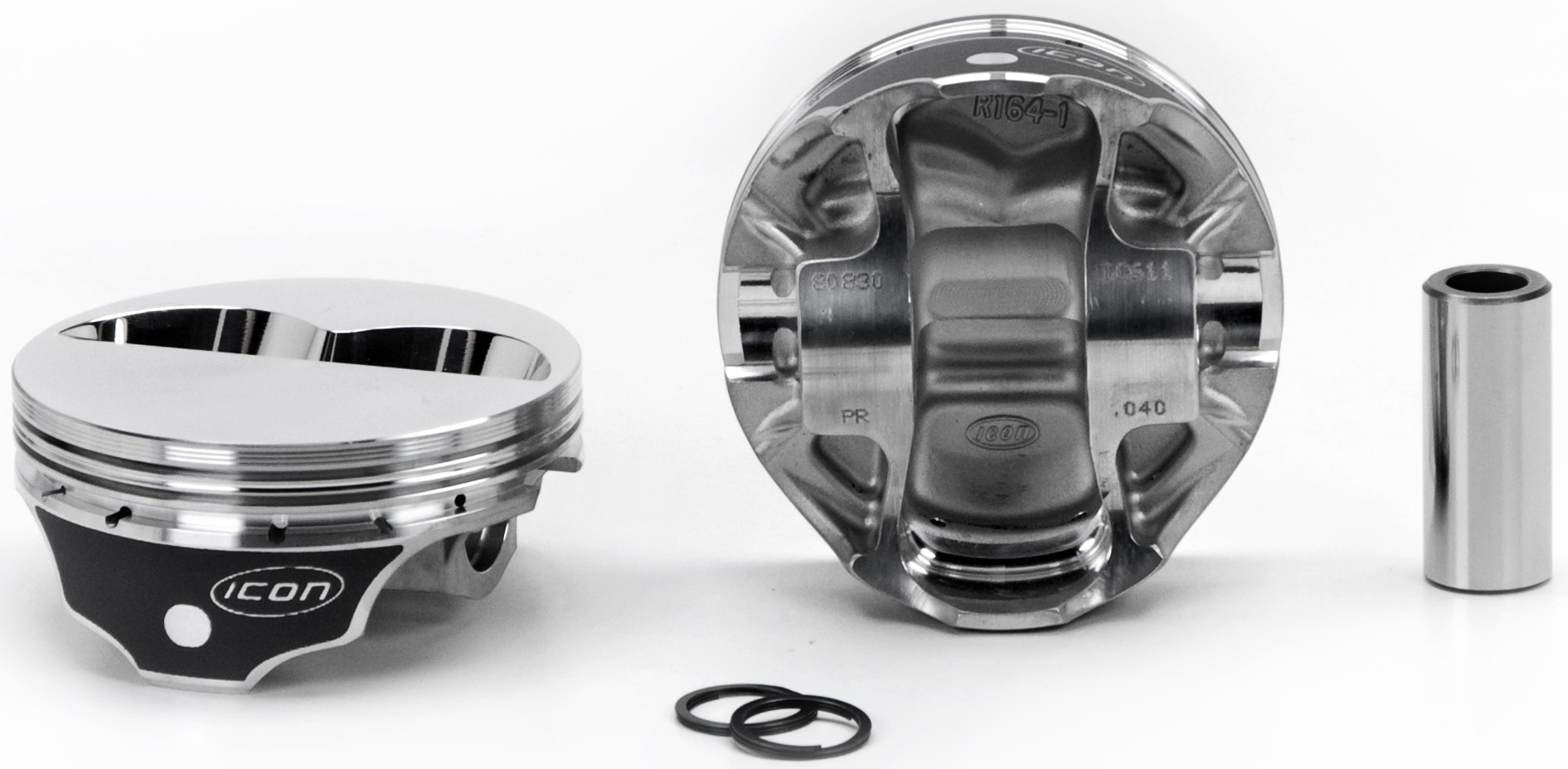

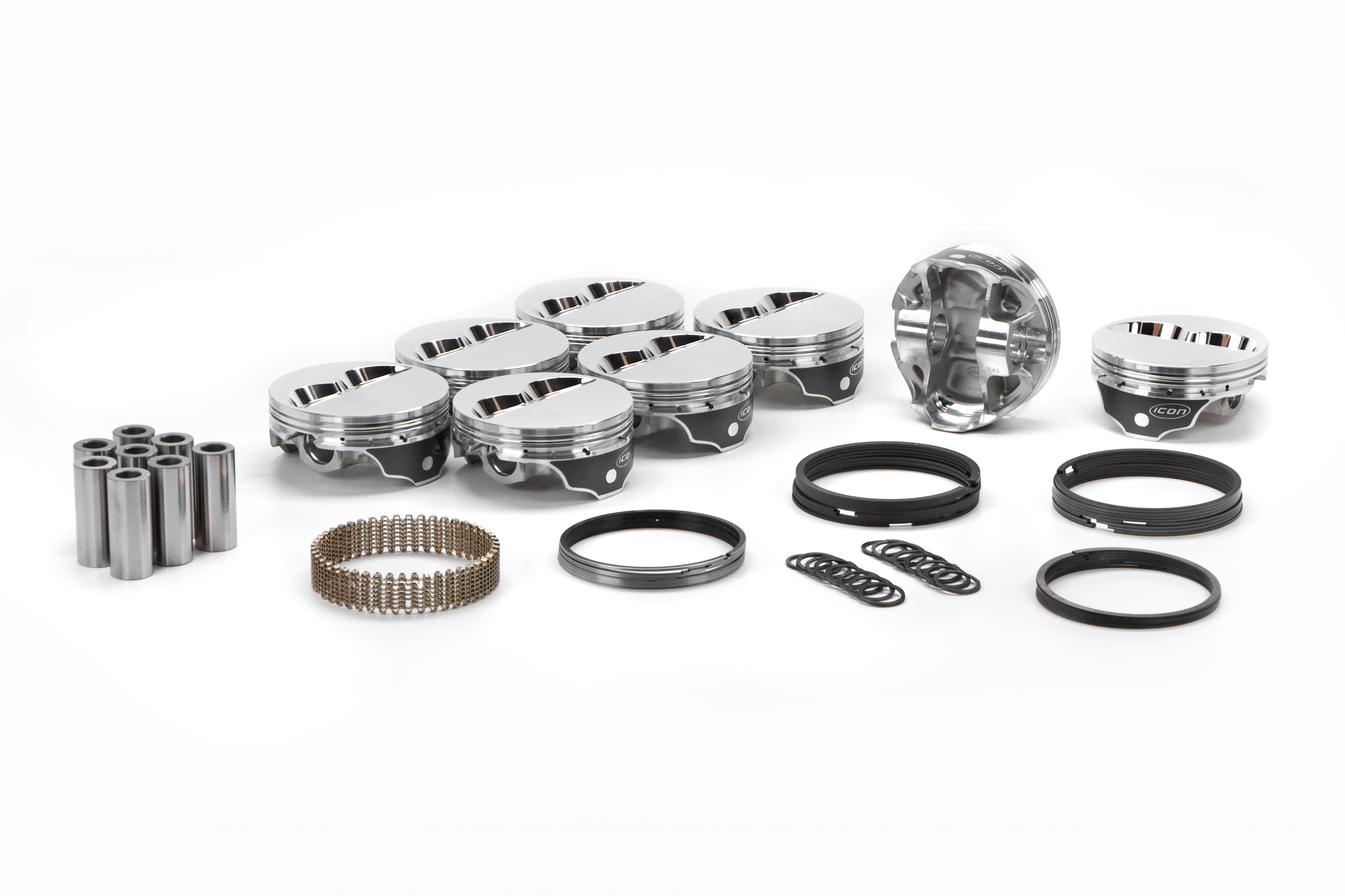

ICON Forged Piston - Chevy 434 Rod 6.000 Flat Top +8cc 2V Kit with Rings
Features & benefits
- Symmetrical valve reliefs. Centered pin.
Specifications
- GTIN
- 00800745245021
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC611
- Bore (in)
- 4.125
- Bore (mm)
- 104.8
- Compression Ratio
- 64-12.0
- Crown (cc)
- +8cc
- Crown Type
- FLAT TOP 2V
- Eng. Disp Liters
- 7.1
- Eng. Disp. In.
- 434
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Exhaust Valve Depth/diameter
- .326/2.200
- Intake Valve Depth/diameter
- .326/2.200
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- .040
- Oversizes
- STD .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- .927x2.500
- Pin Type
- Press or Floating
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 6
- Rod (mm)
- 152.4
- Sold As
- KIT W/RINGS
- Stroke (in)
- 4
- Stroke (mm)
- 101.6
- Top Land
- .206
- Year From
- 1973
- Year Range
- 1973-1998
- Year To
- 1998
Fitment status
This product is universal and will fit your application.
