Icon Forged Pistons · IC553C.075

Brand: Icon Forged Pistons Series: Forged Coated Piston Sets

Description: ICON Forged Coated Piston - GM LS2 LS3 LSA LS9 6.0L and 6.2L

Description

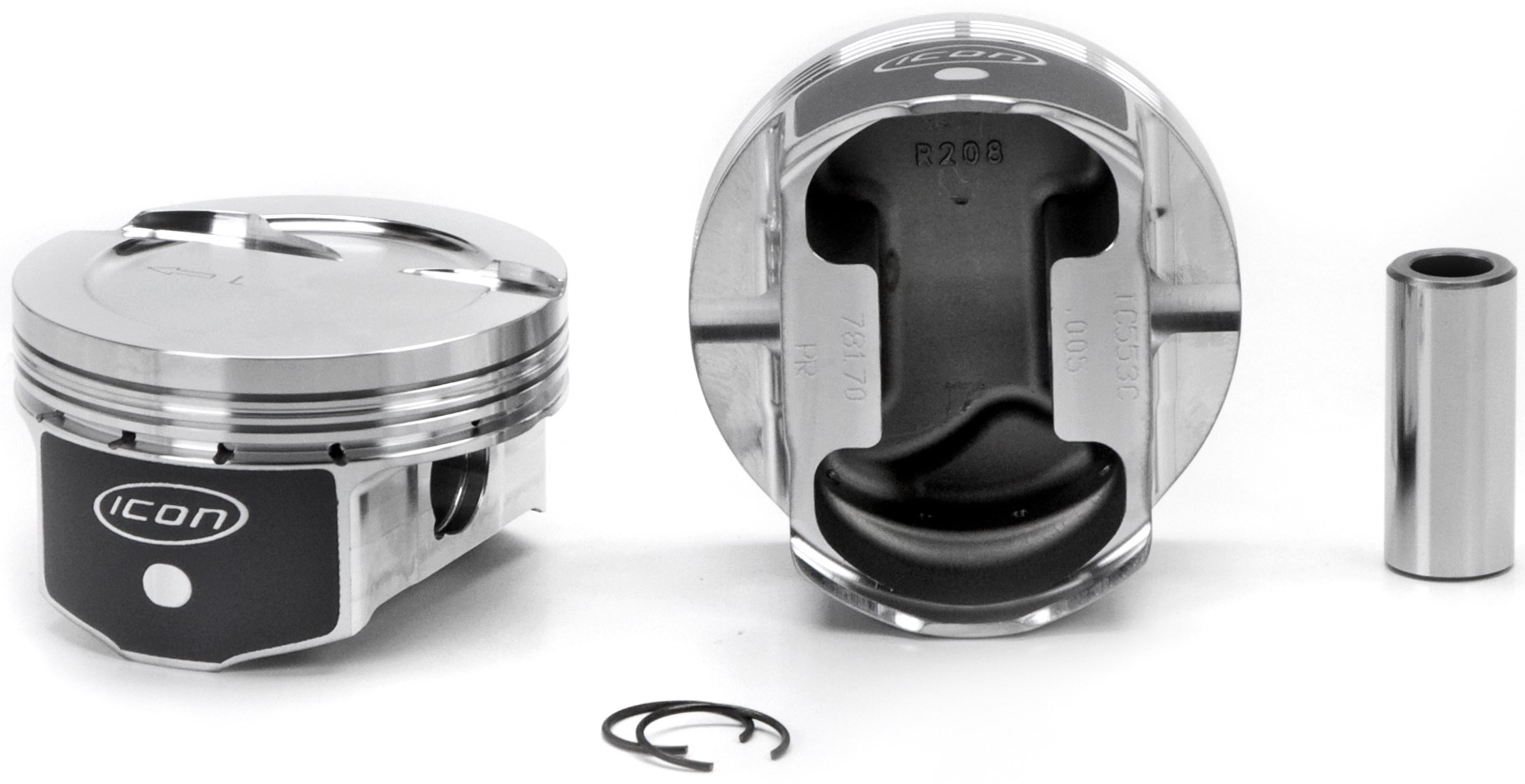

ICON Forged Coated Piston - GM LS2 LS3 LSA LS9 6.0L and 6.2L

LS2 LS3 LSA LS9 6.0L and 6.2L, 15 degree valve angle. Offset pin. UltraWear M42 skirt coating.

Alloy: 4032
Base Number: IC553C
Bore (in): 4
Bore (mm): 101.6
Compression Ratio: 64.5-9.8, 68.4-9.5, 70-9.3
Crown (cc): +12.5cc
Crown Type: DISH
Eng. Disp Liters: 6.0
Eng. Disp. In.: 365
Engine Family: Chevrolet SB V8 Gen III/IV (LS2/LS3/LSA/LS9/L99 6.0/6.2L Block)
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: .149/1.730
Intake Valve Depth/diameter: .196/2.326
Lock: BR8894-1
Make For Engine Family: General Motors
Oe Deck Height: 9.24
Oversize: .075
Oversizes: .005 .010 .020 .030 .065 .070 .075 .080
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: 927x2.250x.180C-SCR415H
Pin Type: Press or Floating
Ring Pack: 1.2mm, 1.2mm, 3.0mm
Rod (in): 6.125
Rod (mm): 155.6
Sold As: PISTON SET
Stroke (in): 3.622
Stroke (mm): 91.99
Top Land: .275
Year Range: -

This product is universal and will fit your application.

Warehouse	In Stock
