Icon Forged Pistons / IC529CAKTS.005

Brand: Icon Forged Pistons Series: Forged Coated Anodized Piston and Ring Kits

Description: ICON Piston - GM 403ci/6.6L (V8) Kit with Rings

Description

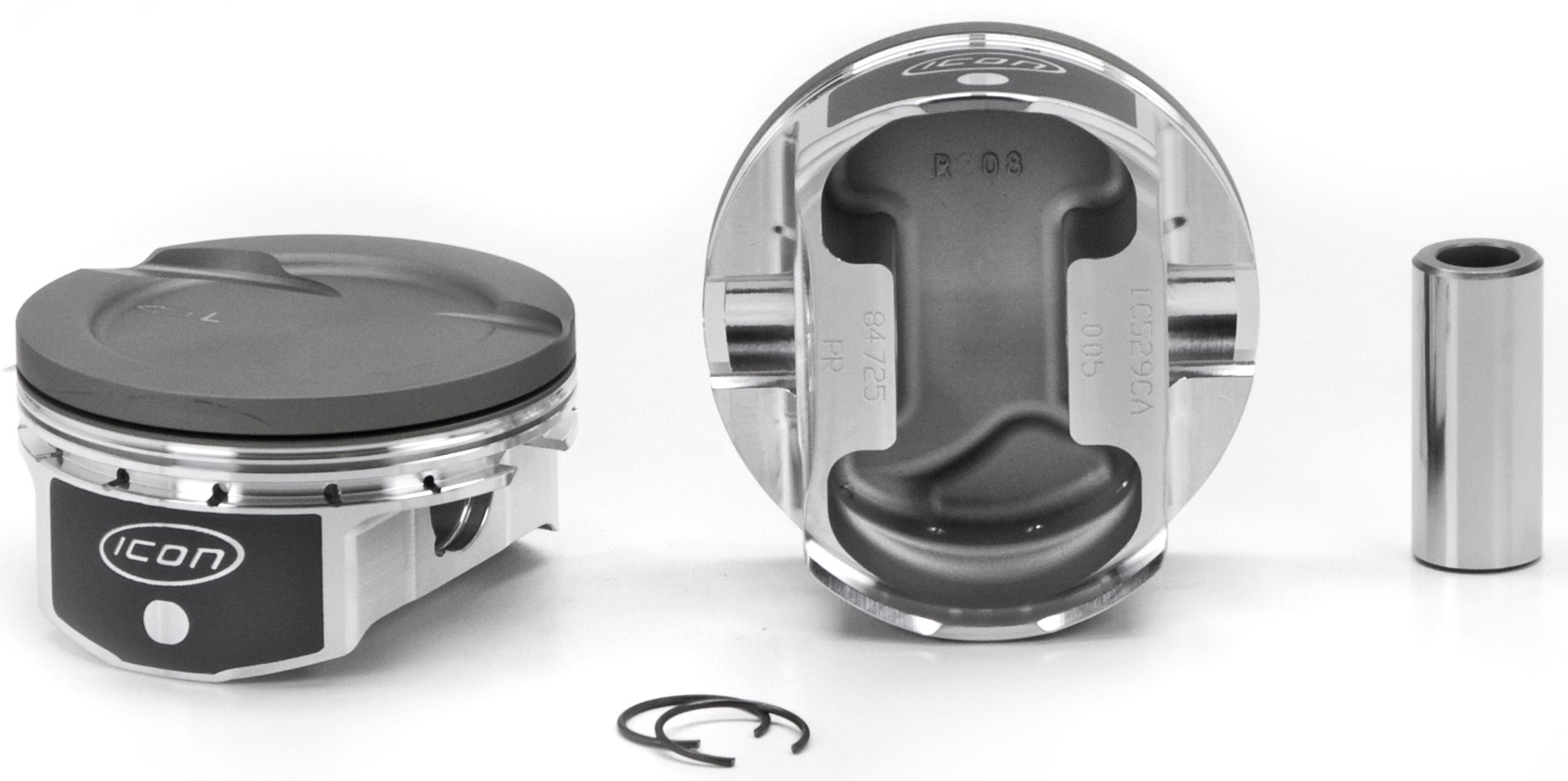

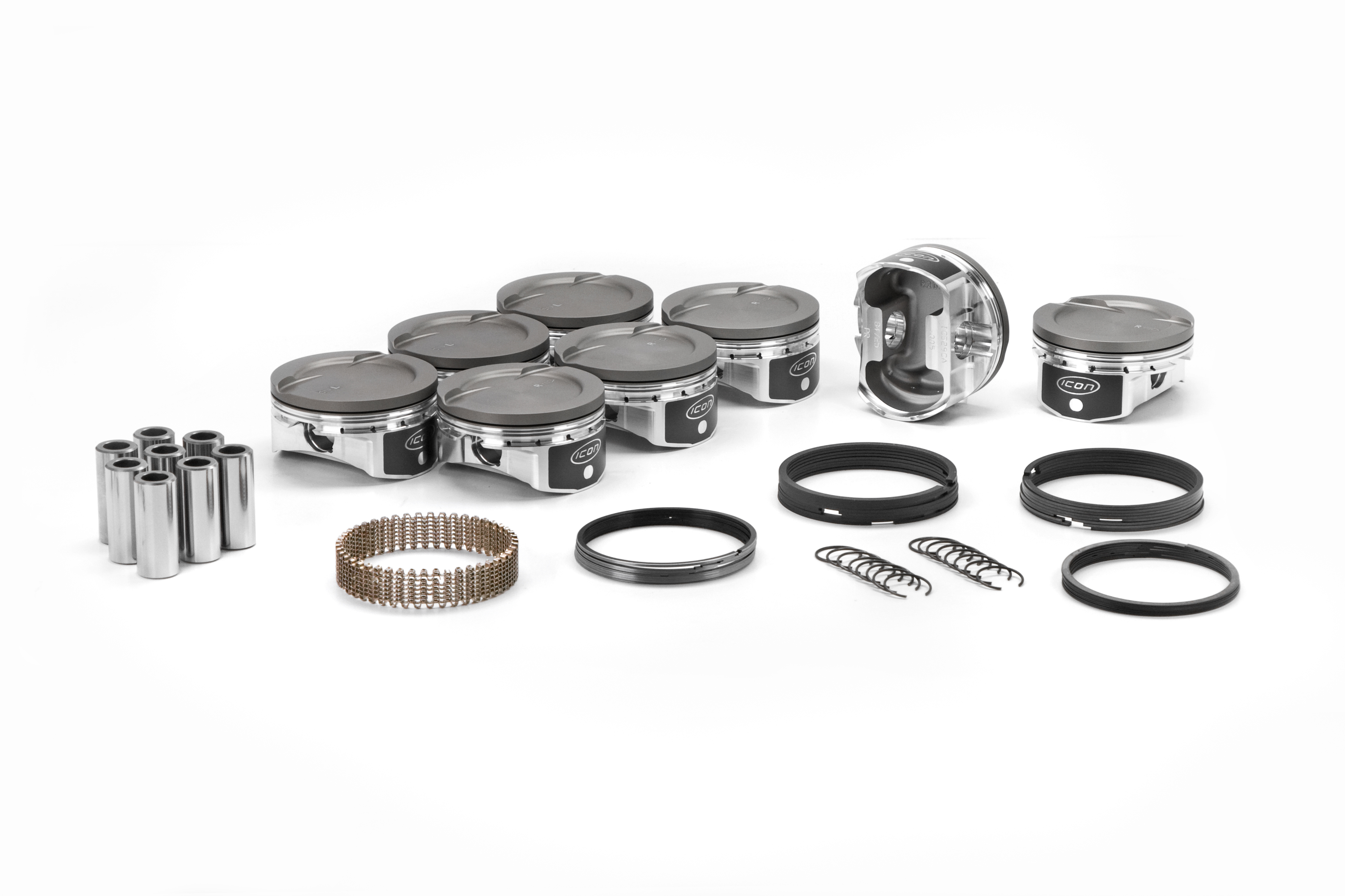

ICON Piston - GM 403ci/6.6L (V8) Kit with Rings

LS2 LS3 LSA LS9 6.0L and 6.2L with 4.000 stroke. Boosted applications. 15 degree valve angle. .030 offset pin. Anodized top ring groove and crown and with UltraWear M42 skirt coating.

Alloy: 2618
Base Number: IC529CA
Bore (in): 4
Bore (mm): 101.6
Compression Ratio: 64.5-10.4, 68.4-10.0, 70-9.9
Crown (cc): +15cc
Crown Type: DISH
Eng. Disp Liters: 6.6
Eng. Disp. In.: 403
Engine Family: Chevrolet SB V8 Gen III/IV (LS2/LS3/LSA/LS9/L99 6.0/6.2L Block)
Engine Manufacturer: GM
Exhaust Valve Depth/diameter: .149/1.730
Intake Valve Depth/diameter: .196/2.326
Lock: BR8894-1
Make For Engine Family: General Motors
Oe Deck Height: 9.24
Oversize: .005
Oversizes: .005 .010 .030 .065 .070 .075 .080
Pin Configuration: Offset
Pin Diameter (in): .927
Pin Diameter (mm): 23.5
Pin Number: G9272250180C
Pin Type: Press or Floating
Ring Pack: 1.2mm, 1.2mm, 3.0mm
Rod (in): 6.125
Rod (mm): 155.6
Sold As: KIT W/RINGS
Stroke (in): 4.000
Stroke (mm): 101.6
Top Land: .275
Year Range: -

This product is universal and will fit your application.
