Icon Forged Pistons · IC513KTD.030

Part #: IC513KTD.030
UPC: 800745249272

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Flat Top Piston & Ring Kits

Log in to order

Description: ICON Forged Piston - Chry 383, Rod 6.760 Flat Top 4.5cc Kit with Rings

Description

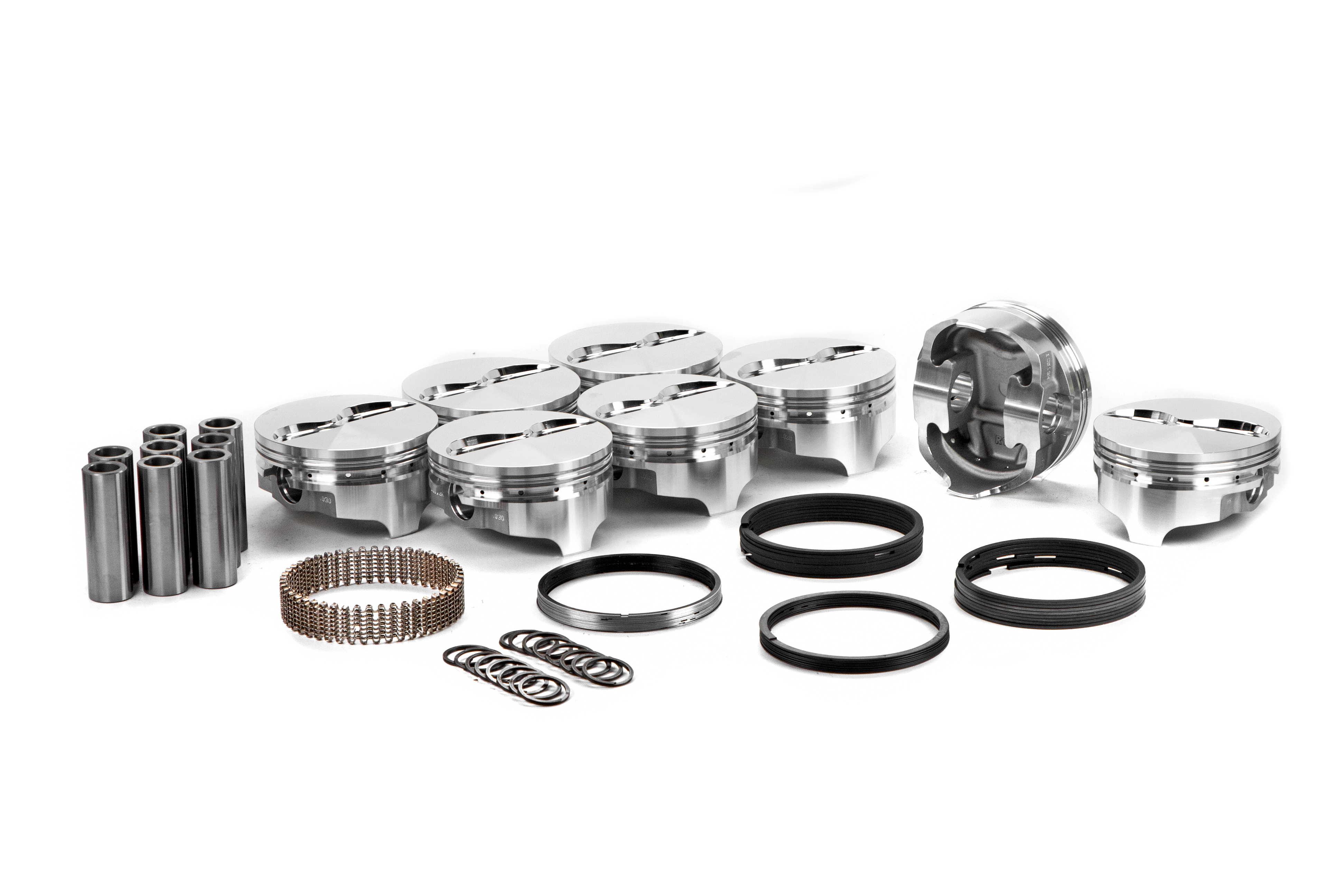

ICON Forged Piston - Chry 383, Rod 6.760 Flat Top 4.5cc Kit with Rings

Features & benefits

Centered pin. Chrysler 383 block with 4.150 stroke and an aftermarket 6.760 rod using a .990 pin.

Specifications

GTIN: 00800745249272
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC513
Bore (in): 4.25
Bore (mm): 108.0
Compression Ratio: 78-11.5, 80-11.3, 84-10.9
Crown (cc): +4.5cc
Crown Type: FLAT TOP
Eng. Disp Liters: 7.8
Eng. Disp. In.: 478
Engine Family: Mopar Big Block B
Engine Manufacturer: Chrysler
Exhaust Valve Depth/diameter: .199/1.880
Intake Valve Depth/diameter: .215/2.300
Lock: PRG110-3
Make For Engine Family: Mopar
Oe Deck Height: 9.98
Oversize: .030
Oversizes: .030 .040 .060
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: 0990x300K
Pin Type: Press or Floating
Ring Pack: 1/16, 1/16, 3/16
Rod (in): 6.76
Rod (mm): 171.7
Sold As: KIT W/RINGS
Stroke (in): 4.15
Stroke (mm): 105.4
Top Land: .220
Year Range: -

Fitment status

This product is universal and will fit your application.
