Icon Forged Pistons · IC511KTS.030

Part #: IC511KTS.030
UPC: 800745251190

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Piston & Ring Kits

Log in to order

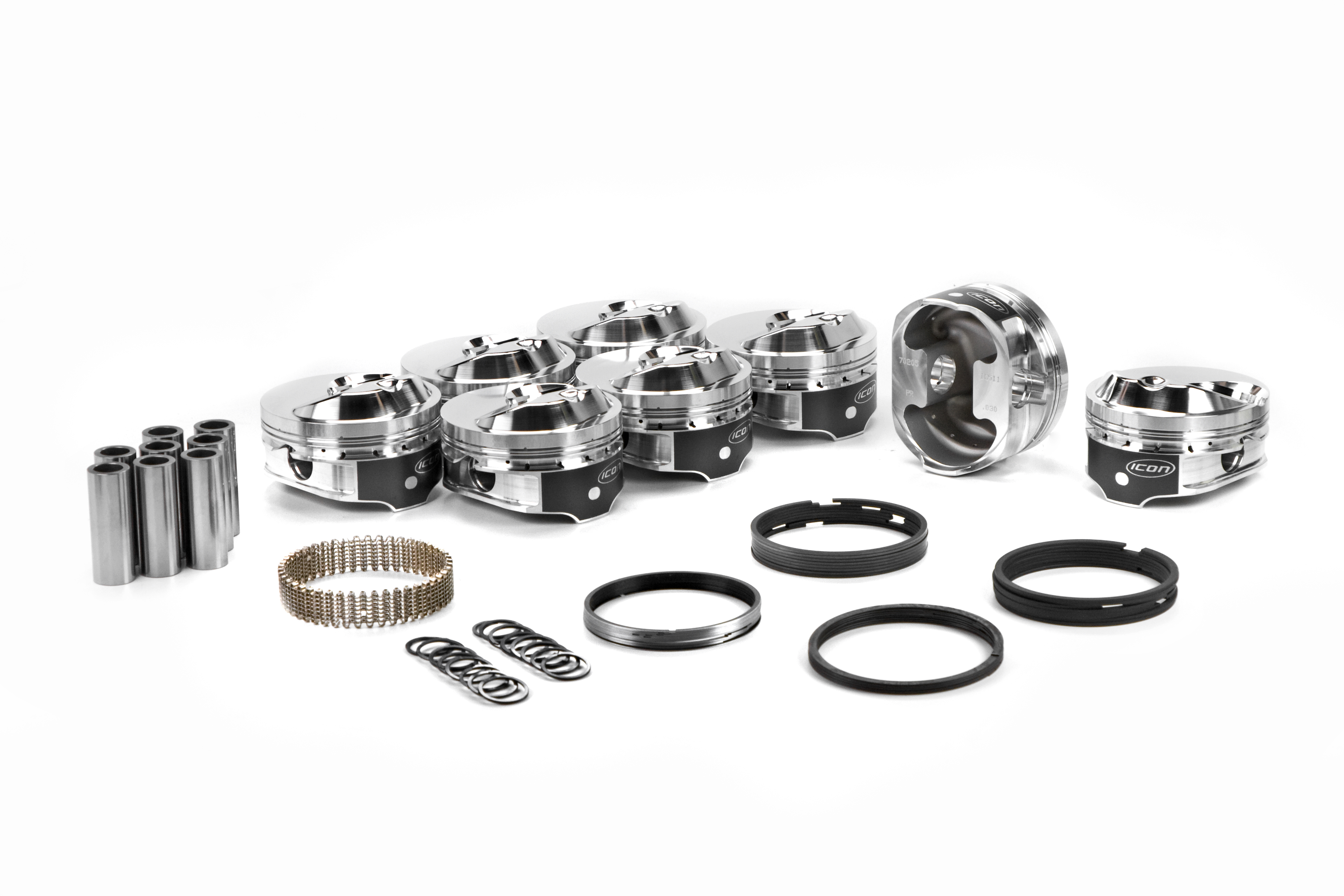

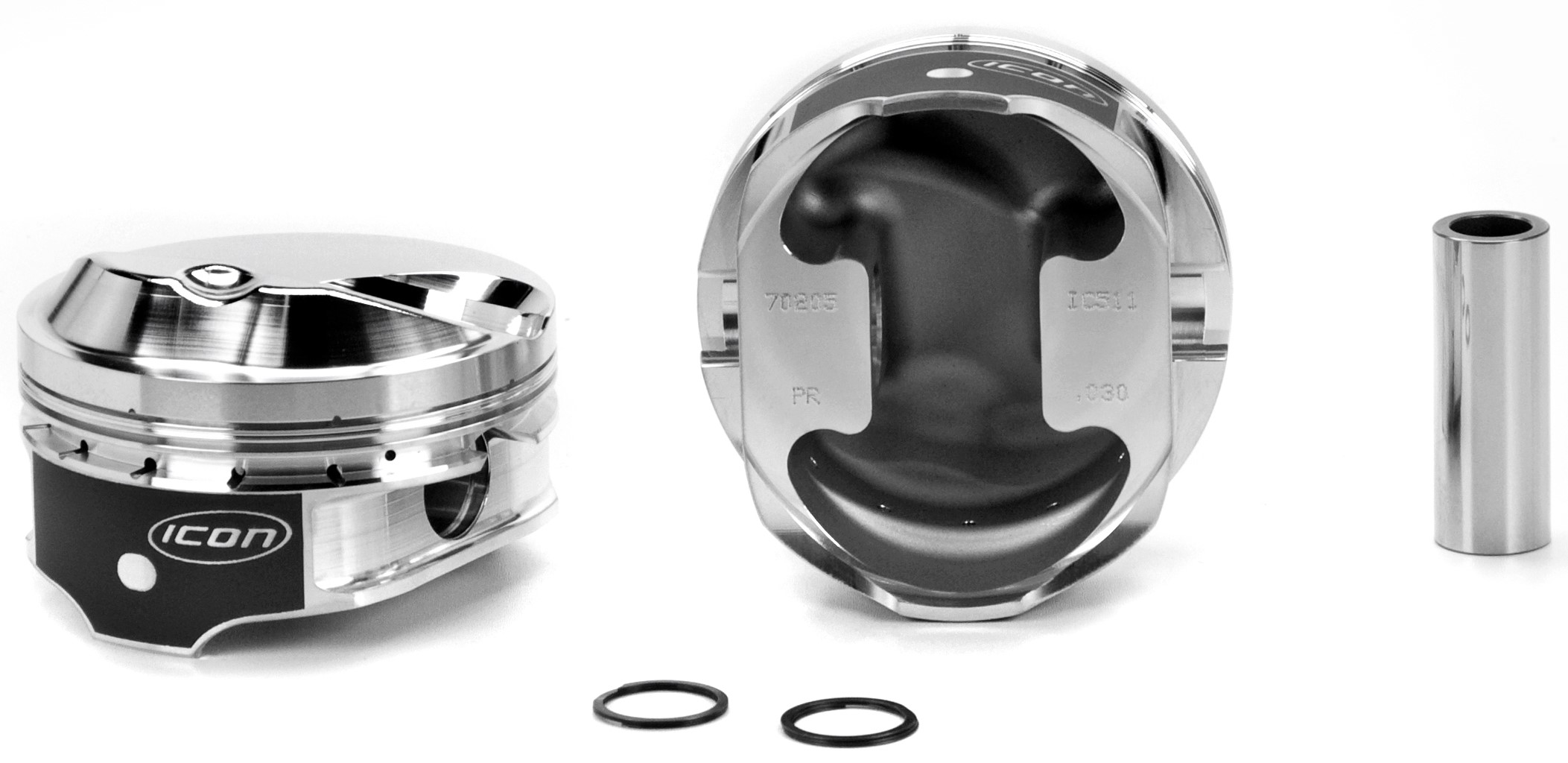

Description: ICON Piston - Chevrolet 540ci/8.8L (V8) Kit with Rings

Description

ICON Piston - Chevrolet 540ci/8.8L (V8) Kit with Rings

Features & benefits

Centered pin. Upgraded Trend 4130 G-series wrist pins. Lateral gas ports.

Specifications

GTIN: 00800745251190
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC511
Bore (in): 4.5
Bore (mm): 114.3
Compression Ratio: 119-12.5
Crown (cc): -33cc
Crown Type: DOME
Eng. Disp Liters: 8.8
Eng. Disp. In.: 540
Engine Family: Chevrolet BB V8 Gen V
Engine Manufacturer: Chevrolet
Intake Valve Depth/diameter: .380/2.536
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 9.8
Oversize: .030
Oversizes: STD .030 .060
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: G9902930185
Pin Type: Press or Floating
Ring Pack: .043", 1/16, 3/16
Rod (in): 6.385
Rod (mm): 161.4932
Sold As: KIT W/RINGS
Stroke (in): 4.25
Stroke (mm): 108.0
Top Land: .350
Year Range: -

Fitment status

This product is universal and will fit your application.
