Icon Forged Pistons · IC507LCAKTS.010

Part #: IC507LCAKTS.010
UPC: 800745274045

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Coated Anodized Dome Piston and Ring Kits

Log in to order

Description: ICON Forged Piston - Chevy BB, 4.600 Bore, -40cc Dome - Kit with Rings

Description

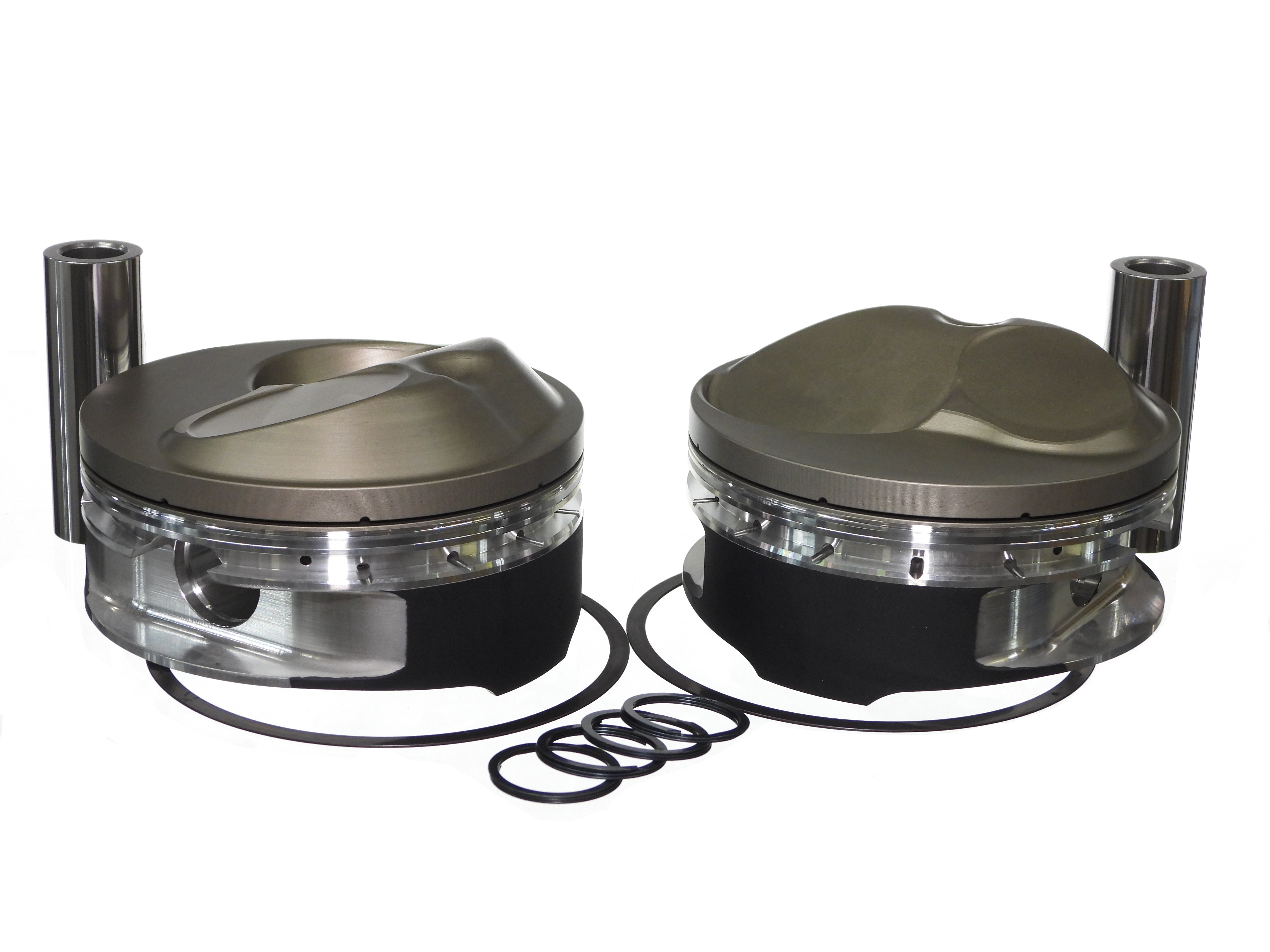

ICON Forged Piston - Chevy BB, 4.600 Bore, -40cc Dome - Kit with Rings

Features & benefits

Centered pin. Open chamber hollow dome with centered pin. Anodized top ring groove and dome. Line2Line abradable skirt coating. Upgraded Trend 4130 G-series wrist pins. Lateral gas ports.

Specifications

GTIN: 00800745274045
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC507LCA
Bore (in): 4.6
Bore (mm): 116.8
Compression Ratio: 119-15.4
Crown (cc): -40cc
Crown Type: DOME
Eng. Disp Liters: 10.3
Eng. Disp. In.: 632
Engine Family: Chevrolet BB V8 Aftermarket Block
Engine Manufacturer: Chevrolet
Exhaust Valve Depth/diameter: 2.040
Intake Valve Depth/diameter: .350/2.536
Lock: PRG110-3
Make For Engine Family: General Motors
Oe Deck Height: 10.2
Oversize: .010
Oversizes: STD .005 .010 .025
Pin Configuration: Centered
Pin Diameter (in): .990
Pin Diameter (mm): 25.1
Pin Number: G9902930185
Pin Type: Press or Floating
Ring Pack: .043", 1/16, 3/16
Rod (in): 6.7
Rod (mm): 170.18
Sold As: KIT W/RINGS
Stroke (in): 4.75
Stroke (mm): 120.7
Top Land: .300
Year Range: -

Fitment status

This product is universal and will fit your application.
