Icon Forged Pistons · IC506LCAT.5MM

Part #: IC506LCAT.5MM

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Coated Anodized Piston Sets

Log in to order

Description: ICON Forged Coated Anodized Subaru 2.5L Turbo Kit-L2L, TBC, & Anodized Coatings

Description

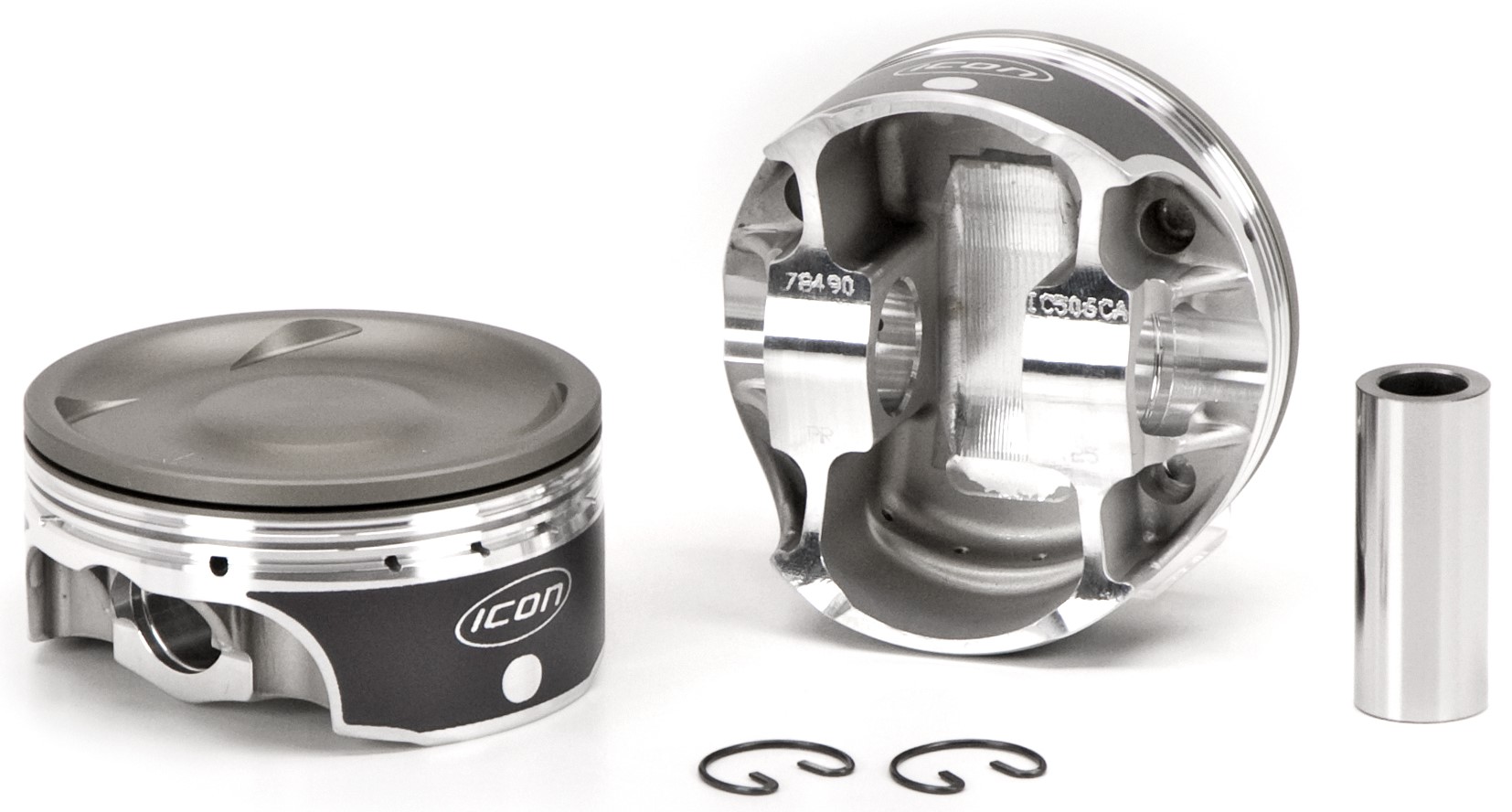

ICON Forged Coated Anodized Subaru 2.5L Turbo Kit-L2L, TBC, & Anodized Coatings

Features & benefits

High boost application. 2618 alloy with Line2Line abradable skirt coating. TBC on crown and hard anodized top ring groove. Thick wall .217 wrist pin with OE Subaru locks. Offered in .038mm for hone clean up only. Sold only as a kit.

Specifications

Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: 2618
Base Number: IC506LCAT
Bore (in): 3.9173
Bore (mm): 99.5
Compression Ratio: 54-8.3
Crown (cc): +22.3cc
Crown Type: DISH
Eng. Disp Liters: 2.5
Eng. Disp. In.: 152
Engine Family: Subaru H4 EJ25
Engine Manufacturer: Subaru
Exhaust Valve Depth/diameter: .227-1.340
Intake Valve Depth/diameter: .227/1.340
Lock: 805323040
Make For Engine Family: Subaru
Oe Deck Height: 201mm
Oversize: .50mm
Oversizes: STD .038mm .25mm .5mm
Pin Configuration: Offset
Pin Diameter (in): .905
Pin Diameter (mm): 23.0
Pin Number: .905x2.250x.217
Pin Type: Press or Floating
Ring Pack: 1.2mm, 1.2mm, 2.0mm
Rod (in): 7.963
Rod (mm): 130.5
Sold As: PISTON SET
Stroke (in): 3.110
Stroke (mm): 79.0
Top Land: .175
Year Range: -

Fitment status

This product is universal and will fit your application.
