Icon Forged Pistons · IC504A.010
Part #: IC504A.010
UPC: 800745249821
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Anodized Piston -GM LS2 Boosted 4.00 stroke, 6.125 Rod V8
Description:
Description
ICON Forged Anodized Piston -GM LS2 Boosted 4.00 stroke, 6.125 Rod V8
Features & benefits
- Centered pin. 15 valve angles. Boosted applications.
Specifications
- GTIN
- 00800745249821
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 2618
- Base Number
- IC504A
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 64.5-10.4, 68.4-10.0, 70-9.8
- Crown (cc)
- +15cc
- Crown Type
- DISH
- Eng. Disp Liters
- 6.6
- Eng. Disp. In.
- 402
- Engine Family
- Chevrolet SB V8 Gen III/IV (LS2/LS3/LSA/LS9/L99 6.0/6.2L Block)
- Engine Manufacturer
- GM
- Exhaust Valve Depth/diameter
- .239/1.720
- Intake Valve Depth/diameter
- .239/2.200
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.24
- Oversize
- .010
- Oversizes
- STD .005 .010 .020 .030
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- 0927x208K
- Pin Type
- Press or Floating
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 6.125
- Rod (mm)
- 155.575
- Sold As
- PISTON SET
- Stroke (in)
- 4
- Stroke (mm)
- 101.6
- Top Land
- .250
- Year Range
- -
Fitment status
This product is universal and will fit your application.

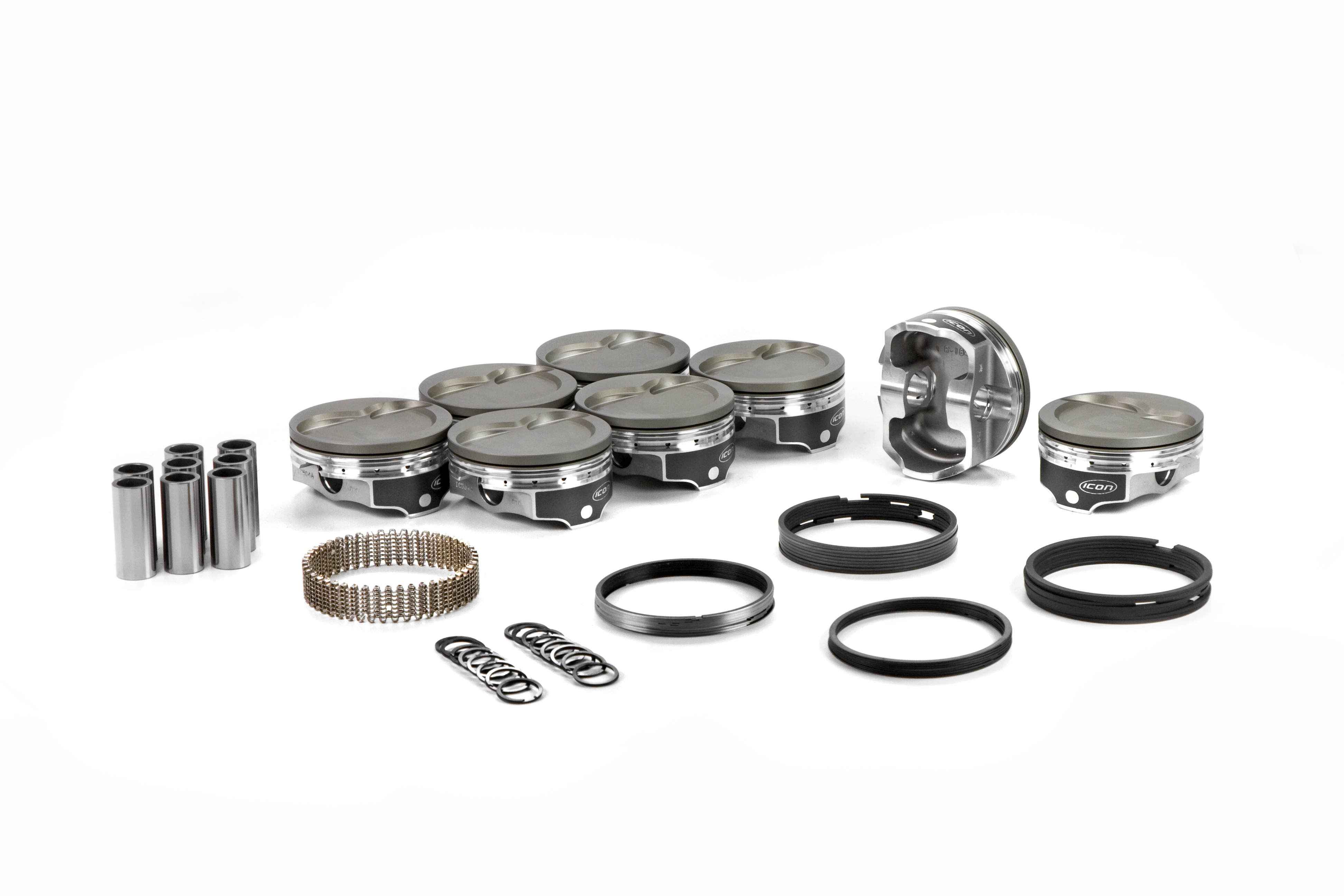

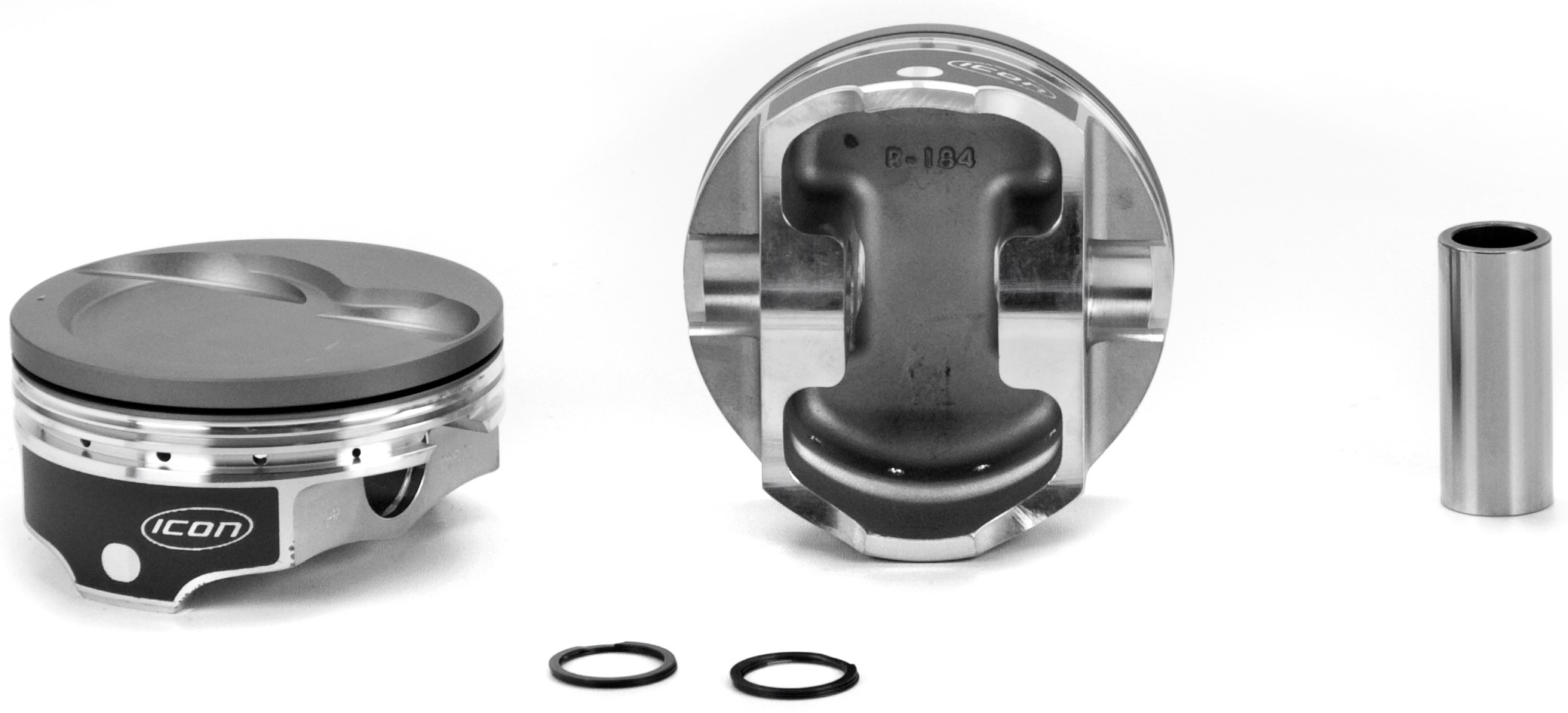

Icon Forged Pistons IC504A.010
