Icon Forged Pistons · IC501A.060
Part #: IC501A.060
UPC: 800745248961
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Anodized Piston - Chevy 350 Rod 5.700 Flat Top 5cc
Description:
Description

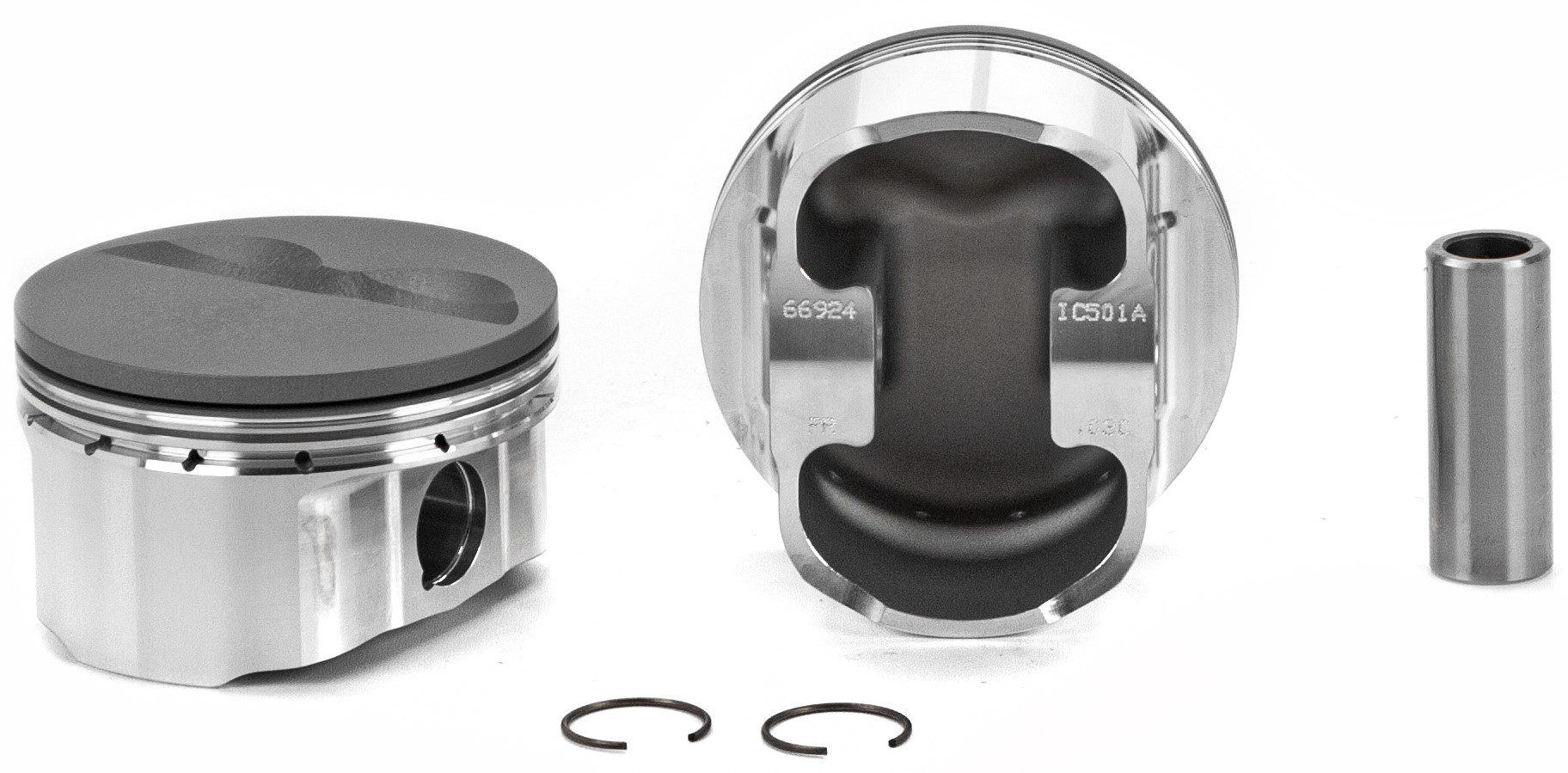

ICON Forged Anodized Piston - Chevy 350 Rod 5.700 Flat Top 5cc
Features & benefits
- 4032 alloy with anodized crown and top ring groove. Centered pin. Round wire locks. Upgraded wrist pin.
Specifications
- GTIN
- 00800745248961
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 4032
- Base Number
- IC501A
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Compression Ratio
- 58-11.0, 64-10.3, 76-9.0
- Crown (cc)
- +5cc
- Crown Type
- FLAT TOP
- Eng. Disp Liters
- 5.7
- Eng. Disp. In.
- 350
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- Chevrolet
- Exhaust Valve Depth/diameter
- .258/2.200
- Intake Valve Depth/diameter
- .258/2.200
- Lock
- BR8894-1
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- .060
- Oversizes
- .005 .030 .040 .060
- Pin Configuration
- Centered
- Pin Diameter (in)
- .927
- Pin Diameter (mm)
- 23.5
- Pin Number
- S9272500150C
- Pin Type
- Press or Floating
- Ring Pack
- 1.5mm, 1.5mm, 3.0mm
- Rod (in)
- 5.7
- Rod (mm)
- 144.78
- Sold As
- PISTON SET
- Stroke (in)
- 3.48
- Stroke (mm)
- 88.4
- Top Land
- .215
- Year Range
- -
Fitment status
This product is universal and will fit your application.
