Icon Forged Pistons · IC10074K.STD

Part #: IC10074K.STD
UPC: 800745292247

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Icon Forged Pistons Series: Forged Coated Piston and Ring Kits

Log in to order

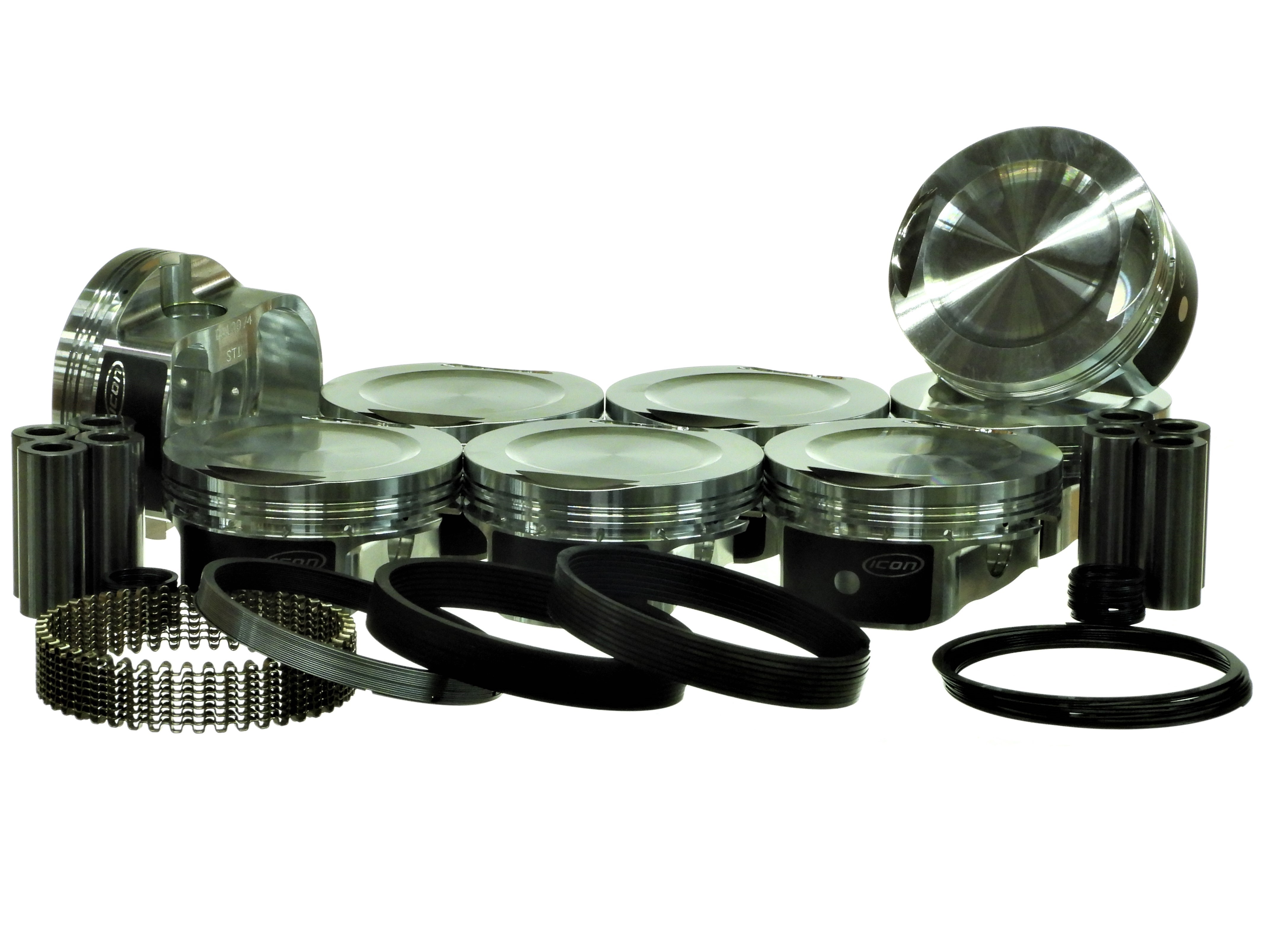

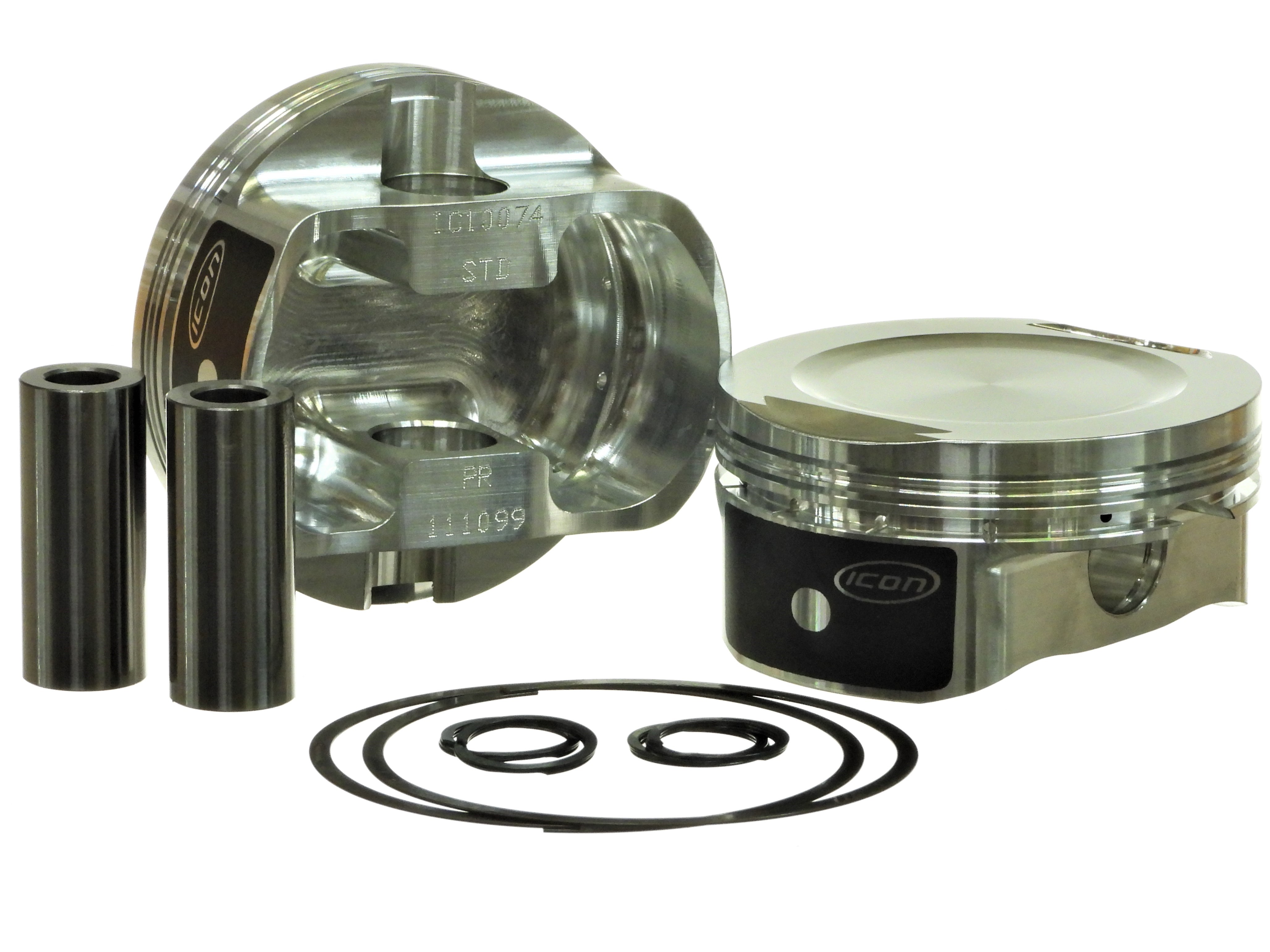

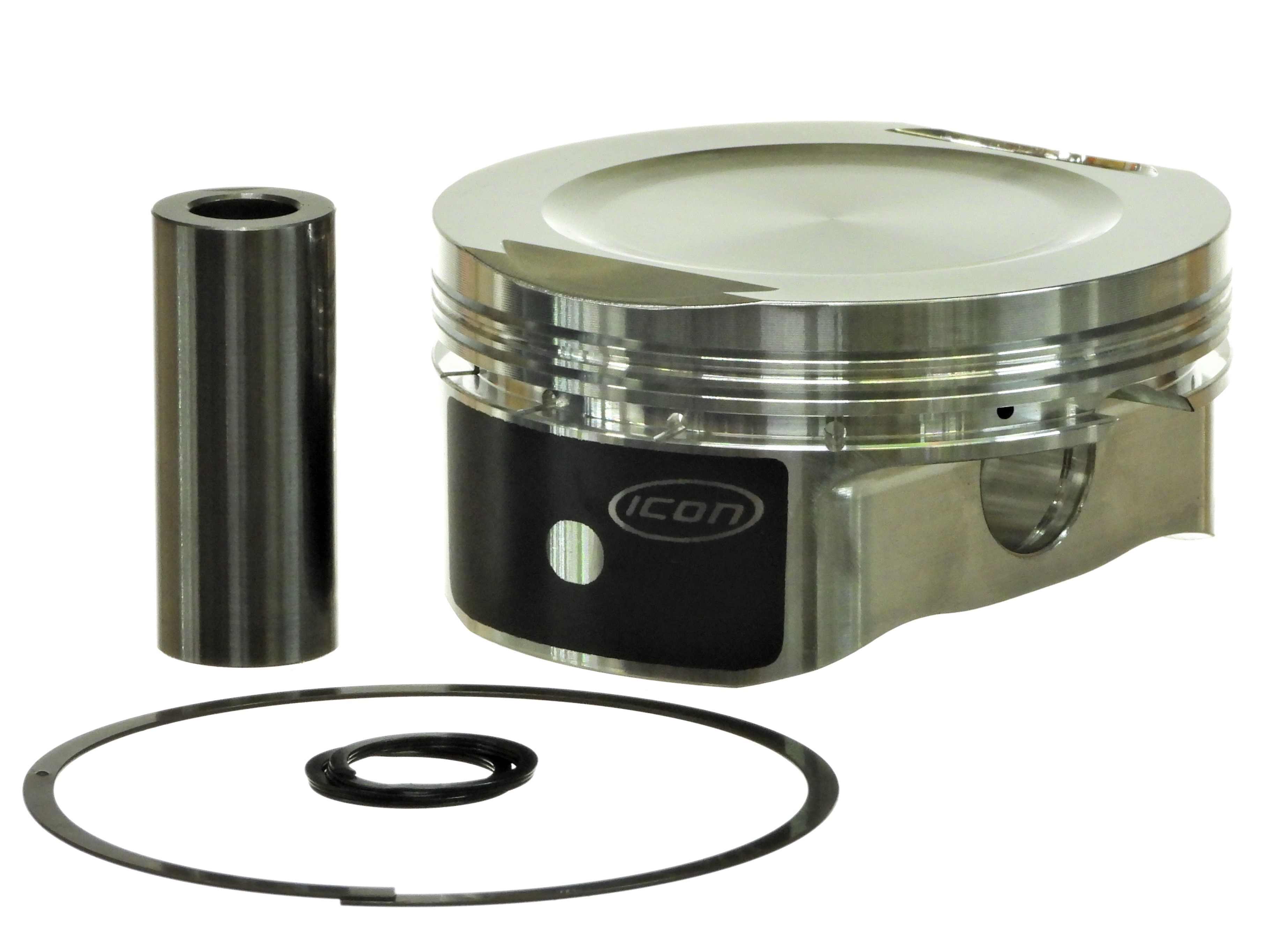

Description: ICON Forged Coated Piston - Mopar 6.4L Gen III Hemi 6.9L/426ci Stroker Kit & Rin

Description

ICON Forged Coated Piston - Mopar 6.4L Gen III Hemi 6.9L/426ci Stroker Kit & Rin

Features & benefits

- Piston & Ring Kit.- Requires aftermarket 4.050 stroke crank and 6.125 rods.-Increases displacement from 6.4 to 6.9L.-M42 Skirt Coating.-Forged 2618 Alloy

Specifications

GTIN: 00800745292247
Life cycle: Available to Order
AAM brand code: IFP
Warehouse brand code: GGFQ
AAIA brand code: GGFQ

Attributes

Alloy: Forged 2618
Base Number: IC10074
Bore (in): 4.090
Bore (mm): 103.88
Compression Ratio: 11.0:1
Crown (cc): 6.5
Crown Type: Dish
Eng. Disp. In.: 426
Eng. Disp. Liters: 6.9
Engine Family: Mopar Hemi Gen III
Engine Manufacturer: Mopar
Exhaust Valve Depth/diameter: .090/1.65
Intake Valve Depth/diameter: .115/2.14
Lock: PRJ-100
Make For Engine Family: Mopar
Oe Deck Height: 9.280
Oversize: STD
Oversizes: STD, .005, .010
Pin Configuration: Centered
Pin Diameter (in): 0.927
Pin Diameter (mm): 23.54
Pin Number: 0927X2.250X200
Pin Type: Floating
Ring Pack: 1.2mm, 1.2mm, 3.0mm
Rod (in): 6.125
Rod (mm): 155.57
Sold As: Piston Kit
Stroke (in): 4.050
Stroke (mm): 102.87
Top Land: 0.250
Uses Ring Pack: S4090ESN
Year From: 2012
Year Range: 2012-2023
Year To: 2023
