Icon Forged Pistons · IC10072-STDK1
Part #: IC10072-STDK1
UPC: 800745285133
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston Kit - VW Type I H4 92mm Big Bore with Rings
Description:
Description
ICON Forged Piston Kit - VW Type I H4 92mm Big Bore with Rings
Features & benefits
- Anodized crown and M42 Skirt Coating, .060 offset pin bore. Uses spacers or gaskets to set deck height. Always check your deck height!
Specifications
- GTIN
- 00800745285133
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- 4032
- Base Number
- IC10072
- Bore (in)
- 3.622
- Bore (mm)
- 92
- Crown (cc)
- 0
- Crown Type
- Flat
- Eng. Disp. In.
- 127-136
- Eng. Disp. Liters
- 2085-2234cc
- Engine Family
- Type 1 H4
- Engine Manufacturer
- Volkswagen
- Lock
- SRW-004
- Make For Engine Family
- Volkswagen
- Oe Deck Height
- 3.95
- Oversize
- STD
- Oversizes
- STD
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.866
- Pin Diameter (mm)
- 21.99
- Pin Number
- .8660X2.500X.160SCR415H
- Pin Type
- Pressed
- Ring Pack
- 1.5, 1.5, 4.0mm
- Rod (in)
- 5.394
- Rod (mm)
- 137
- Sold As
- Piston Kit and Rings
- Stroke (in)
- 3.086/3.228/3.307
- Stroke (mm)
- 78.4/82/84mm
- Top Land
- 0.3
- Year From
- 1965
- Year Range
- 1965-1974
- Year To
- 1974
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

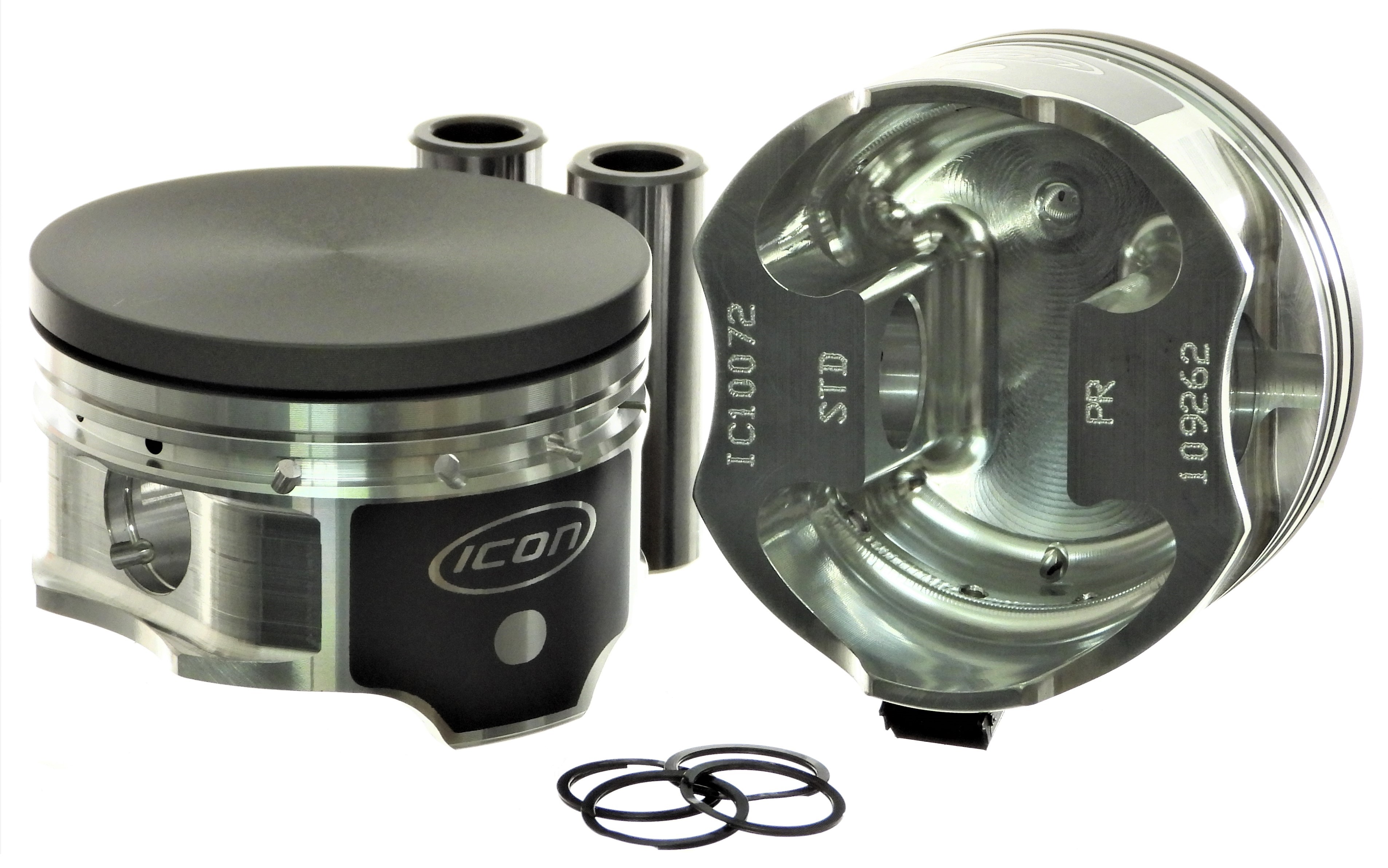

Icon Forged Pistons IC10072-STDK1
