Icon Forged Pistons · IC10067KT.STD
Part #: IC10067KT.STD
UPC: 800745281623
Log in for inventory
Notify me when this item is in stock.
Description: ICON Forged Piston Kit - Mopar 588ci Indy 572-13 Aftermarket Block with Rings
Description:
Description

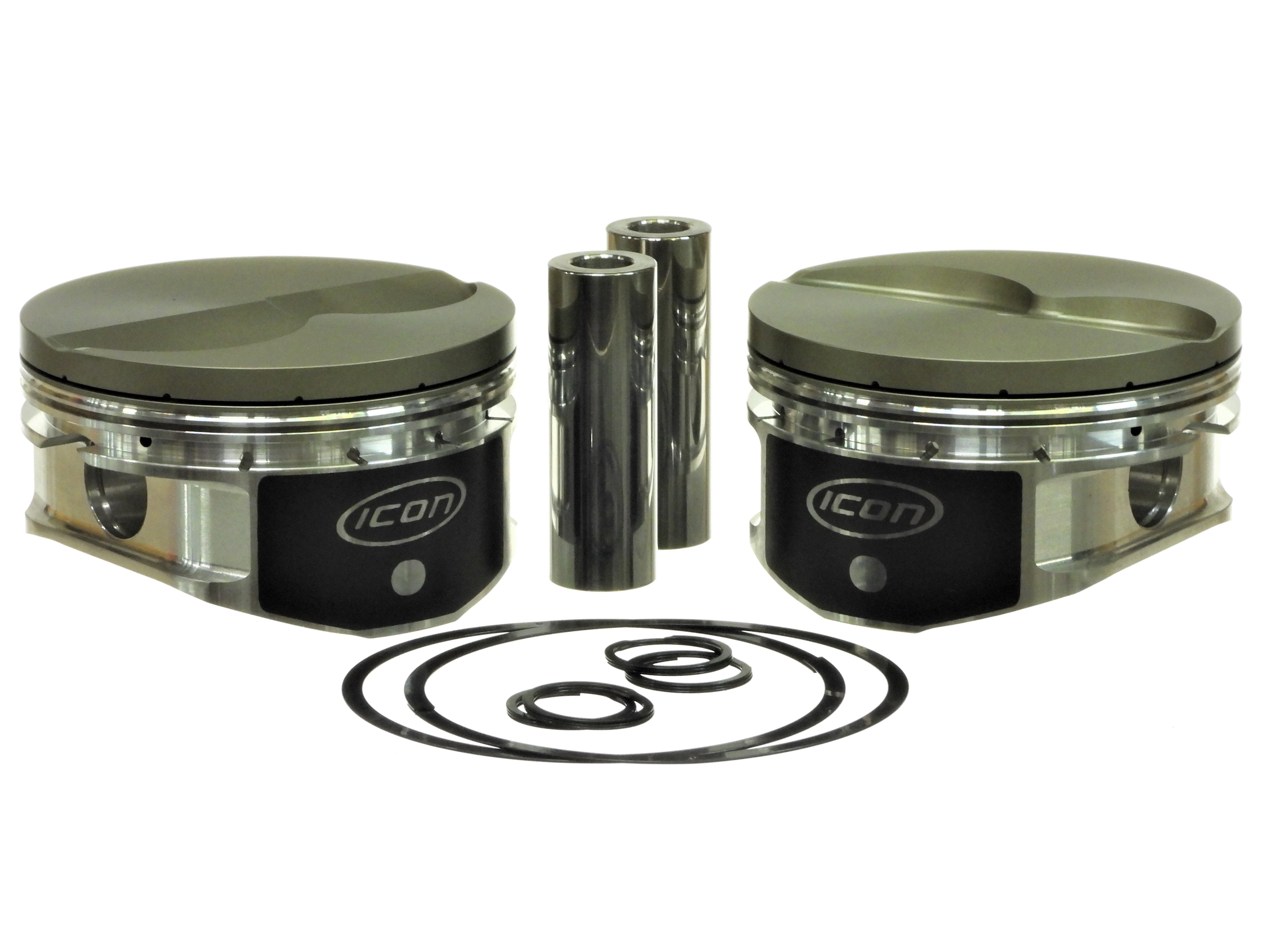

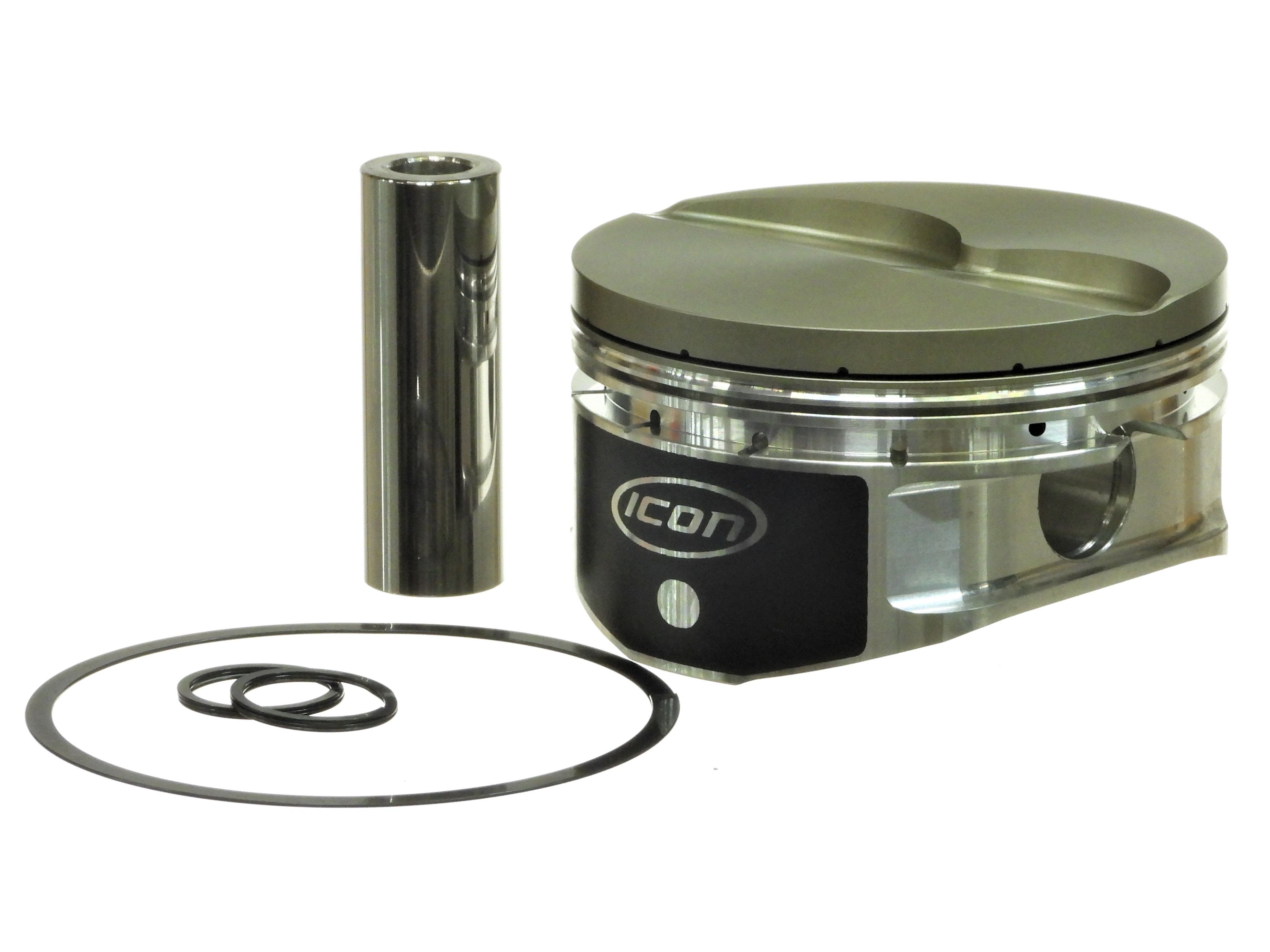

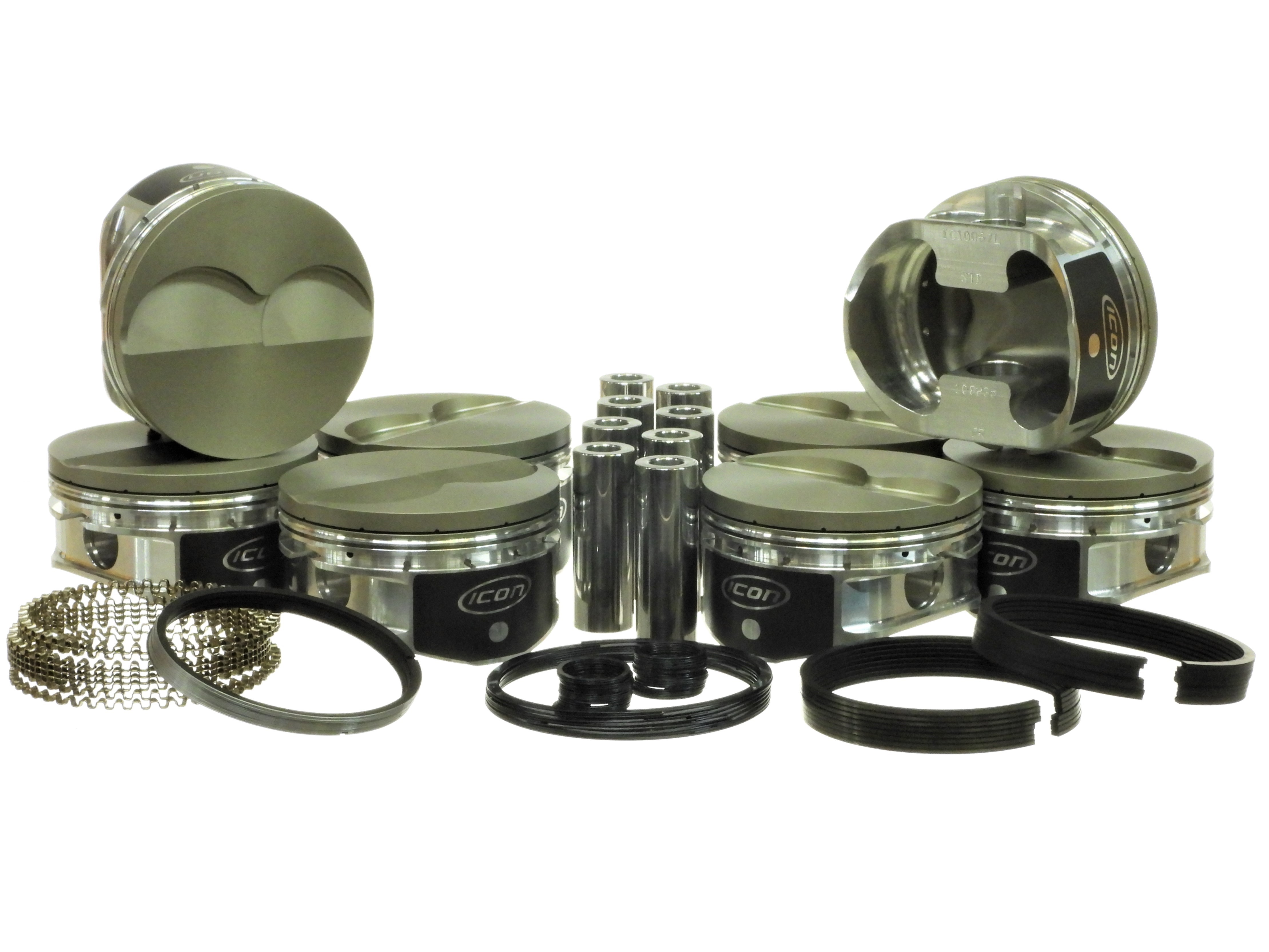

ICON Forged Piston Kit - Mopar 588ci Indy 572-13 Aftermarket Block with Rings
Features & benefits
- Coated Skirts, Anodized Crown, Lateral Gas Ports, for use w/ Indy 572-13 heads.
Specifications
- GTIN
- 00800745281623
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- Forged 2618 Alloy
- Base Number
- IC10067
- Bore (in)
- 4.5
- Bore (mm)
- 114.3
- Compression Ratio
- 13.1:1
- Crown (cc)
- 9.34
- Crown Type
- Flat Top w/ 2 Valve Reliefs
- Eng. Disp. In.
- 588
- Eng. Disp. Liters
- 9.6
- Engine Family
- Mopar Big Block Aftermarket Block
- Engine Manufacturer
- Mopar
- Exhaust Valve Depth/diameter
- .261/2.0006
- Intake Valve Depth/diameter
- .280/2.502
- Lock
- PRG-110
- Make For Engine Family
- Mopar
- Oe Deck Height
- 10.72
- Oversize
- STD
- Oversizes
- STD .020 .030
- Pin Configuration
- Centered
- Pin Diameter (in)
- 0.99
- Pin Diameter (mm)
- 25.14
- Pin Number
- H9902930220
- Pin Type
- Floating
- Ring Pack
- .043, 1/16, 3/16
- Rod (in)
- 7.1
- Rod (mm)
- 180.34
- Sold As
- KIT W/RINGS
- Stroke (in)
- 4.625
- Stroke (mm)
- 117.48
- Top Land
- 0.3
- Uses Ring Pack
- 4500JS8
