Icon Forged Pistons · IC10003-.030K1
Part #: IC10003-.030K1
UPC: 800745317346
Log in for inventory
Notify me when this item is in stock.
Description: ICON FHR Piston & Ring Kit - Chevy 350, Rod 6.0, +18.5cc 4V Dish
Description:
Description

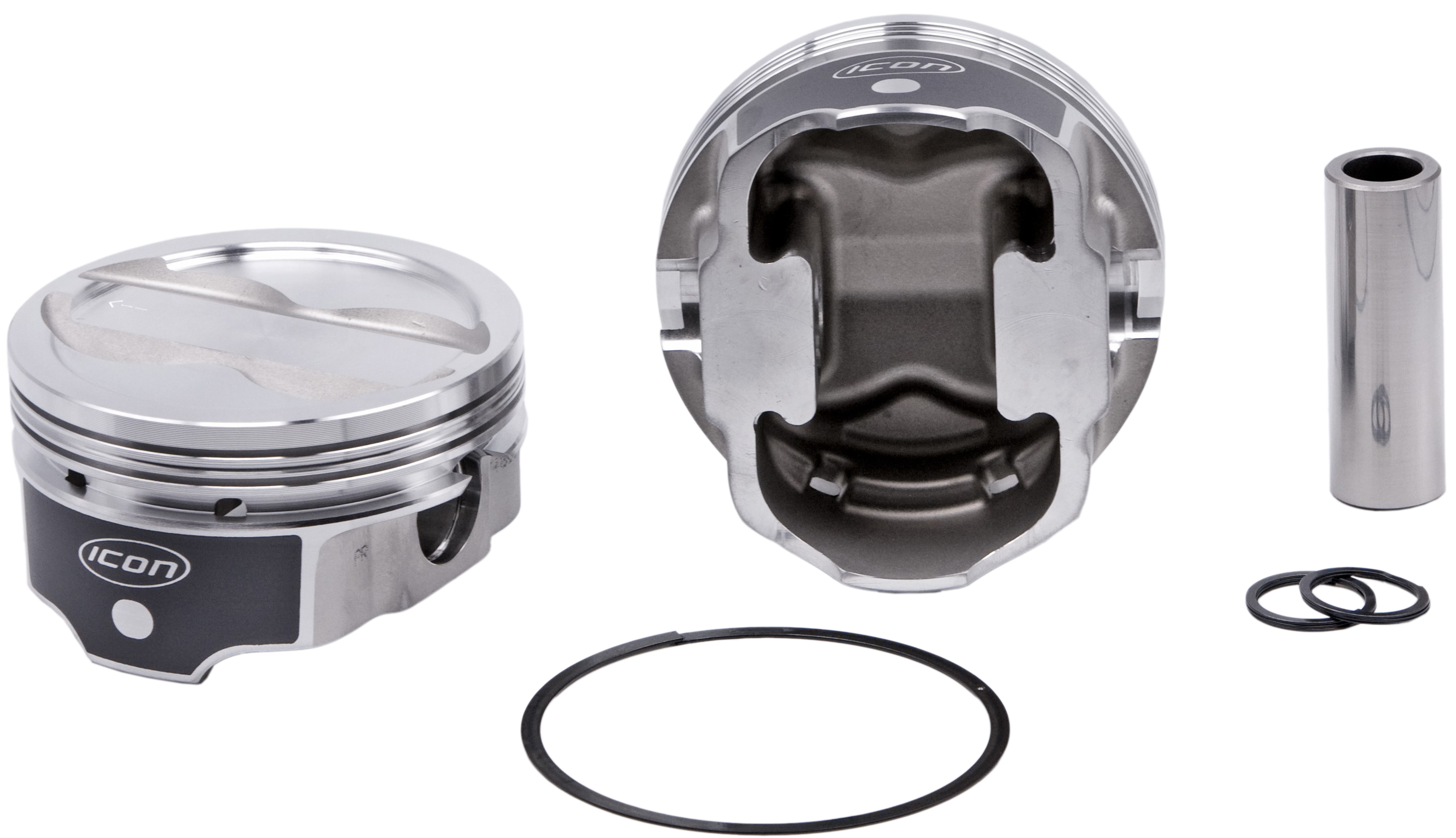

ICON FHR Piston & Ring Kit - Chevy 350, Rod 6.0, +18.5cc 4V Dish
Features & benefits
- Offset pin. Replaces IC9980. Updated metric ring grooves. No mini grooves in top land.
Specifications
- GTIN
- 00800745317346
- Weight
- 14 lb
- Height
- 5 in
- Length
- 22.5 in
- Width
- 10 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- IFP
- Warehouse brand code
- GGFQ
- AAIA brand code
- GGFQ
Attributes
- Alloy
- Forged 4032 Alloy
- Base Number
- IC10003
- Bore (in)
- 4
- Bore (mm)
- 101.6
- Bore Diameter
- 4
- Compression Ratio
- 58-9.6, 64-9.0, 76-8.1
- Crown (cc)
- +18.5cc
- Crown Type
- DISH 4v
- Cylinder Bore Diameter
- 4
- Eng. Disp. In.
- 350
- Eng. Disp. Liters
- 5.7
- Engine Family
- Chevrolet SB V8 Gen I
- Engine Manufacturer
- GM
- Grade Type
- Performance
- Lock
- PRJ100-3
- Make For Engine Family
- General Motors
- Oe Deck Height
- 9.025
- Oversize
- 0.03
- Oversized
- Yes
- Oversizes
- STD .030 .040 .060 .080
- Pin Configuration
- Offset
- Pin Diameter (in)
- 0.927
- Pin Diameter (mm)
- 23.5
- Pin Number
- .927x2.750
- Pin Type
- Press or Floating
- Piston Head Type
- Dish
- Piston Material
- Forged 4032 Alloy
- Piston Rings Included
- Yes
- Ring Pack
- 1.5, 1.5, 3.0mm
- Rod (in)
- 6
- Rod (mm)
- 152.4
- Sold As
- Complete Piston and Ring Kit
- Stroke (in)
- 3.48
- Stroke (mm)
- 88.4
- Top Land
- 0.22
- Valve Reliefs
- 4
- Year From
- 1958
- Year Range
- 1958-2007
- Year To
- 2007
