Hushmat · 59980

Part #: 59980
UPC: 881101998003

Loading availability... Log in for inventory
Notify me when this item is in stock.

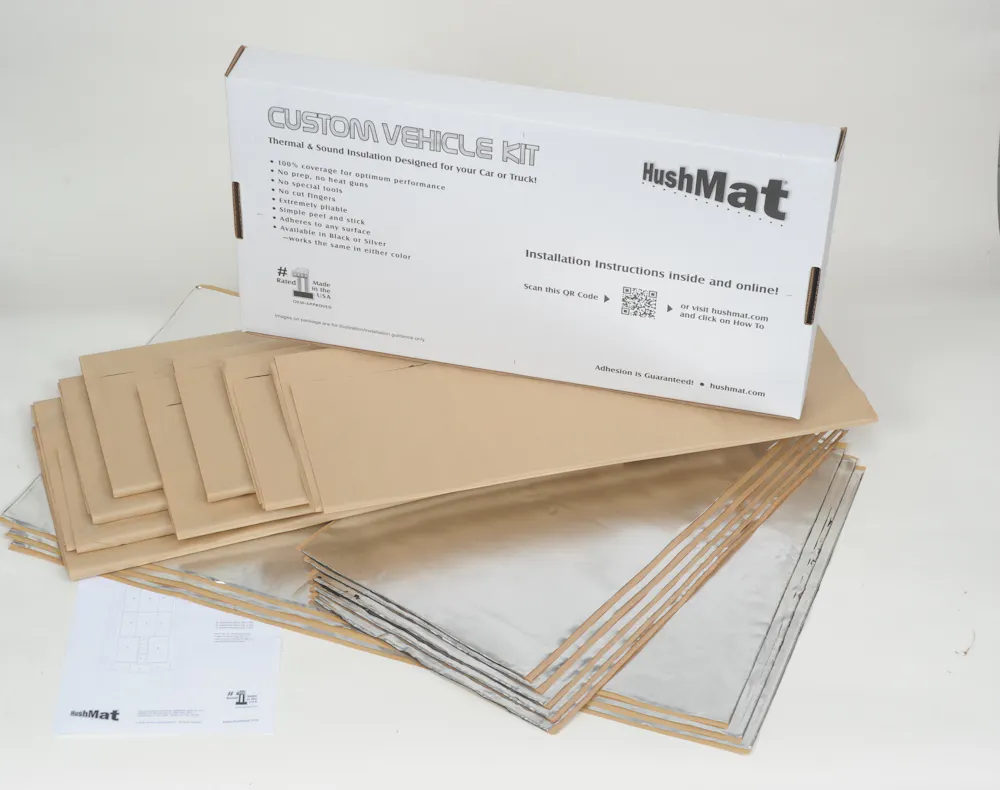

Description: Hushmat Complete Year, Make and Model Vehicle Insulation kit covers 100 percent of the area of your vehicles firewall, floor, doors, roof and cargo area. HushMat has determined the exact amount of material required for your vehicle.

Description:

Description

Comfort, cargo space, utility and convenience are earmarks of VAN styling. You can reduce interior noise and heat with one material. Your VAN is fun to drive, but in the summer it gets hot. There is over 200 degrees of heat cooking your firewall and floor pan. Your engine and exhaust generate tremendous heat that transfers to the metal firewall and floor and this heats up your VAN interior. It can create a very uncomfortable ride, especially in the summer. This also forces your AC system to work harder to reduce and maintain comfortable temperatures inside your VAN. HushMat proprietary USA manufactured chemistry makes the automotive heat shield dissipate this heat, insulating your interior, and improving the load on your HVAC system which makes your VAN significantly cooler in the summer and warmer in the winter. HushMat is proven in an independent study to lower this temperature by over 40 percent. Nothing beats the heat and noise like HushMat. Your VAN is large and holds all the luggage and passengers you need. The rear wheels and wheel wells sit right in the cargo area and the road noise passes right into the passenger compartment. When you drive on the highway at approximately 65 miles per hour the interior of your VAN is approaching 80 to 90 decibels of noise. That is like placing a vacuum cleaner or garbage disposal running on your passenger seat. You deal with this every day. HushMat offers you a solution. It is also the number 1 Rated in performance. Hushmat is packaged specifically for your VAN to provide 100 percent insulation coverage, there are no holes in the material and no puzzle pieces to put together. Simply apply the HushMat material as shown in the Installation Guide to provide the car sound deadening and auto heat shield you deserve. Treat your firewall, doors, floor, tunnel, rear wheel wells, cargo floor and roof with this complete kit.

Features & benefits

  • Eliminate Road Noise/Vibration
  • Reduces Heat Up To 40 Percent
  • Automotive OEM Specified and Approved
  • HushMat Ultra Requires No Pre-cleaning Of The Application Surface
  • No More Acetone Or Alcohol Surface Preparation
  • Ultra is 1.5mm Lightweight at 0.47 lbs. Per Square Foot
  • HushMat Ultra Requires No Heat Guns Or Messy Glue To Apply
  • Proven To Perform From -30 F To 550 F
  • Manufactured in the USA for Over 25 years

Information

Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material light weight HushMat Ultra

Application summary

Year Make / model
1969-1983 Ford E-100 Econoline
1975-1983 Ford E-100 Econoline Club Wagon
2002-2014 Ford E-150
2003-2005 Ford E-150 Club Wagon
1975-2002 Ford E-150 Econoline
2007-2008 Ford E-150 Econoline
1975-1991 Ford E-150 Econoline Club Wagon
1994-2002 Ford E-150 Econoline Club Wagon
1969-1974 Ford E-200 Econoline
2003-2014 Ford E-250
1975-2002 Ford E-250 Econoline
1975-1991 Ford E-250 Econoline Club Wagon
1969-1974 Ford E-300 Econoline
2002-2005 Ford E-350 Club Wagon
1975-2000 Ford E-350 Econoline
2007-2008 Ford E-350 Econoline
1977-2002 Ford E-350 Econoline Club Wagon
1961-1967 Ford Econoline
1999-2006 Ford Econoline
2010-2014 Ford Econoline Van
2010-2014 Ford Econoline Wagon

Specifications

GTIN
00881101998003
Weight
162 lb
Height
26 in
Length
3 in
Width
14 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
HSM
Warehouse brand code
HSM
AAIA brand code
FGSS

Attributes

California Proposition 65
No
Cold Flexibility
Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion
Color
Polymer - Black; Backing - Silver
Flammability
Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard
Hardness
6.5 - 9.0mm ?ASTM D-5
Peel Strength
Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported.
R-Value
7
Safety
HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product.
Shelf Life
At least 6 months when stored at 40 degrees C or less
Specific Gravity
1.47 (approx. 0.47 pounds per square foot)
Temperature Resistance
HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions.
Thickness
1.5mm
Title
Auto Year Make and Model Sound and Thermal Insulation Kit

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1969-1983 Ford E-100 Econoline; 1975-1983 Ford E-100 Econoline Club Wagon; 2002-2014 Ford E-150; 2003-2005 Ford E-150 Club Wagon; 1975-2002 Ford E-150 Econoline; 2007-2008 Ford E-150 Econoline; 1975-1991 Ford E-150 Econoline Club Wagon; 1994-2002 Ford E-150 Econoline Club Wagon; 1969-1974 Ford E-200 Econoline; 2003-2014 Ford E-250; 1975-2002 Ford E-250 Econoline; 1975-1991 Ford E-250 Econoline Club Wagon; 1969-1974 Ford E-300 Econoline; 2002-2005 Ford E-350 Club Wagon; 1975-2000 Ford E-350 Econoline; 2007-2008 Ford E-350 Econoline; 1977-2002 Ford E-350 Econoline Club Wagon; 1961-1967 Ford Econoline; 1999-2006 Ford Econoline; 2010-2014 Ford Econoline Van; 2010-2014 Ford Econoline Wagon
