Hushmat · 50100
Part #: 50100
UPC: 881101501005
Log in for inventory
Notify me when this item is in stock.

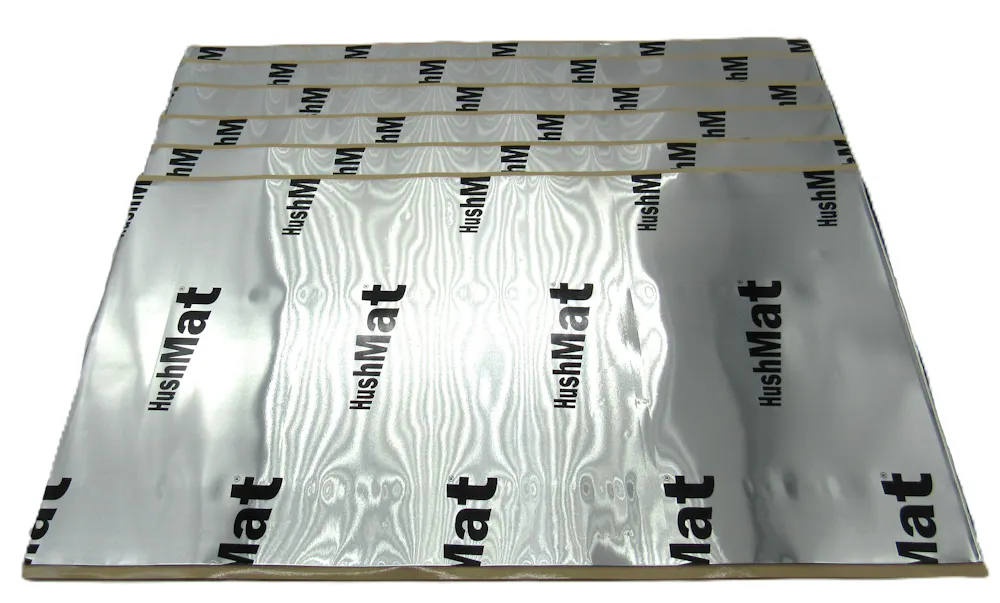

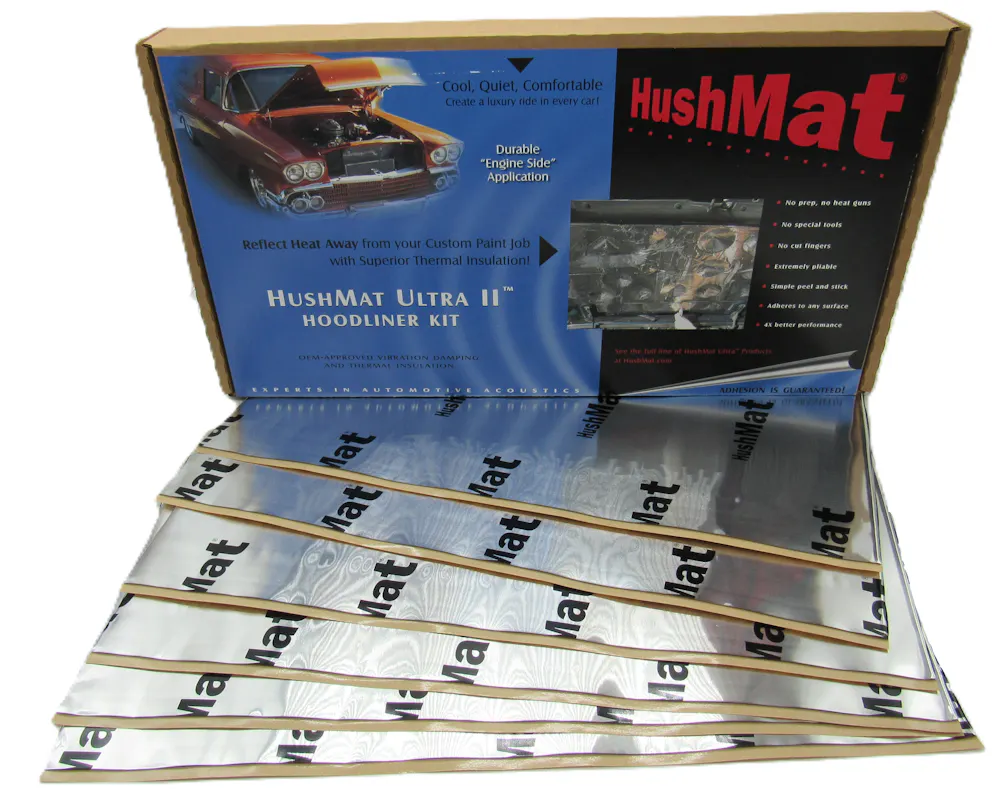

Description: HushMat Hoodliner Kit – Thermal Insulation & Sound Deadening - 12 Sq Ft.; Hoodliner contains six 12 in. x 23 in. Engine Side Rugged Ultra Heat Reflective Pads. Hoodliner insulates the hood and firewall from excessive engine and exhaust heat.
Description:
Description
HushMat Hoodliner is a robust formulation designed for the rugged and high temperature engine side environments. HushMat Hoodliner is rated from minus 30 degrees F to plus 550 degrees F.
Features & benefits
- Proprietary self-adhesive butyl rubber compound significantly reduces road noise and vibrations for a quieter ride.
- Durable, heavy-duty construction designed for the rigor of underhood application.
- High-temperature resistance up to 550 degrees F.
- Flexible and easy to mold to complex surfaces offers easy installation without special tools or harmful chemical surface preparation.
- Lightweight design offers minimal impact on overall vehicle weight.
- Insulates custom painted hoods from excessive engine heat.
Information
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.
Specifications
- GTIN
- 00881101501005
- Weight
- 5 lb
- Height
- 3 in
- Length
- 26 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- HSM
- Warehouse brand code
- HSM
- AAIA brand code
- FGSS
Attributes
- Add-On Part
- None
- California Proposition 65
- No
- Cold Flexibility
- Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion
- Color
- Polymer - Black; Backing - Aluminum 4 Mil Silver
- FAB
- Flexible and paintable aluminum laminate can be cut and shaped to fit various hood configurations and sizes, offering versatility for different vehicle types.
- Flammability
- Tested per FMVSS 302, HushMat Ultra Hoodliner is self-extinguishing and meets all aspects of the standard
- Hardness
- 6.5 - 9.0mm ?ASTM D-5
- Market
- Universal
- Overall Length
- 12.000 in.
- Overall Length (in.)
- 12.000 in.
- Pad Color
- Silver
- Pad Length
- 23
- Pad Material
- Butyl Rubber Compound
- Pad Width
- 12
- Peel Strength
- Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported.
- R-Value
- 9
- Safety
- HushMat Ultra Hoodliner is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product.
- Shelf Life
- At least 6 months when stored at 40 degrees C or less
- Shelf Life After Opening
- 12
- Specific Gravity
- 1.47 (approx. 0.60 pounds per square foot)
- Sub - Market A
- Automotive
- Temperature Resistance
- HushMat Ultra Hoodliner will withstand a bake of 1 hour at 290 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions.
- Thickness
- 2
- Title
- Universal Auto & Truck Heavy Duty Hoodliner Insulation - 6 Sheets 12inx23in ea
- Width
- 23.000 in.
- Width (in.)
- 23
Fitment status
This product is universal and will fit your application.
