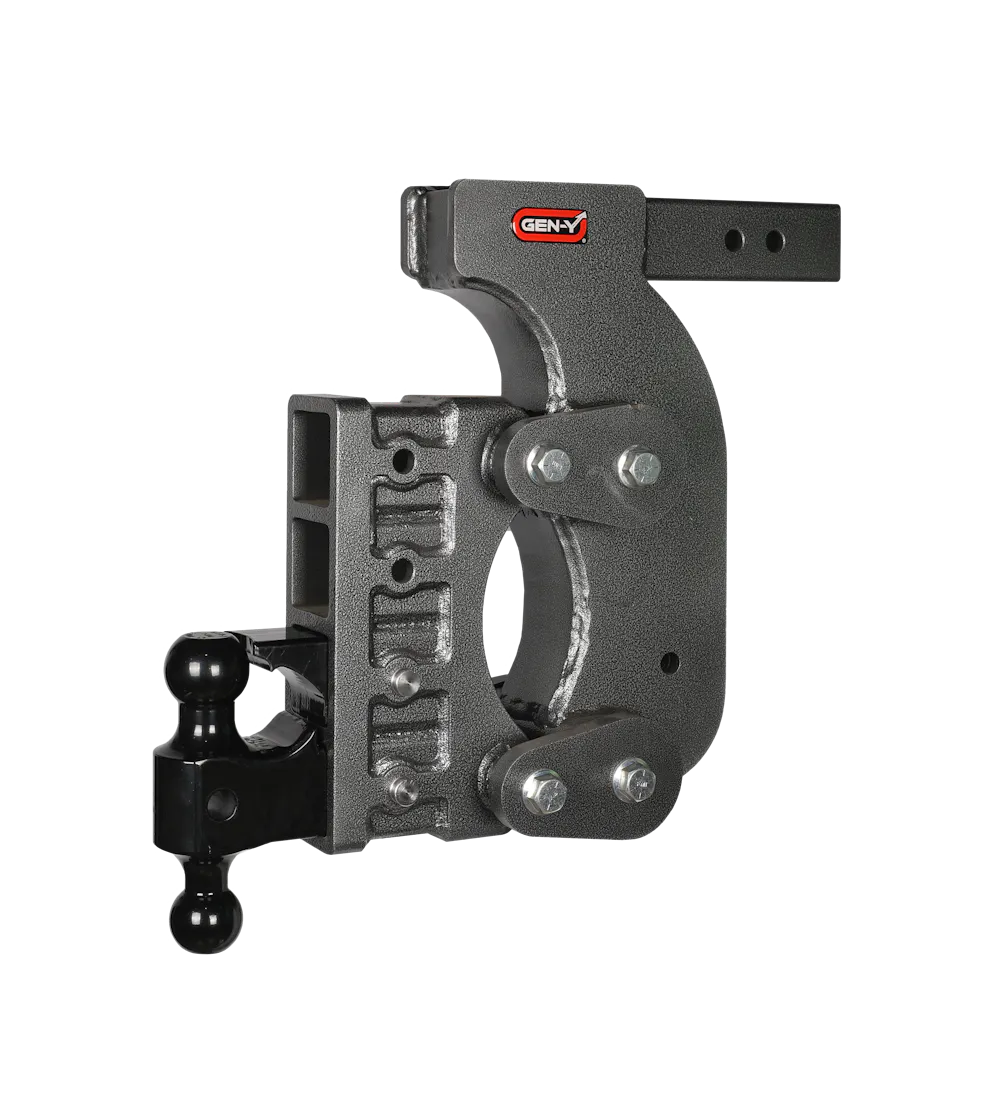

GEN-Y Hitch / GH-1524
Part #: GH-1524
UPC: 810006121155
Loading...
Notify me when this item is in stock.

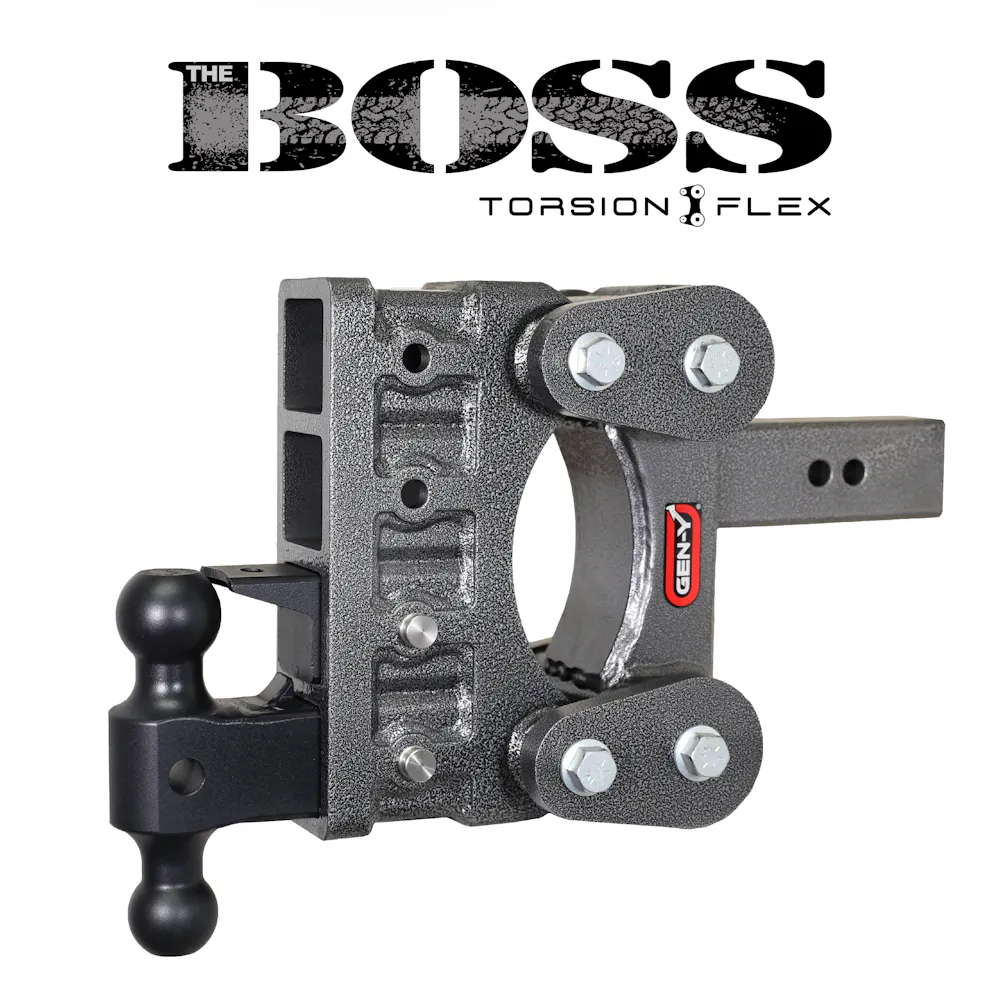

Description: BOSS Drop Hitch; The BOSS TORSION-FLEX 2.5" Receiver 15" Drop 2.4K TW 21K Hitch & GH-061 Dual-Ball & GH-062 Pintle Lock & GH-0101 Stab Kit
Description:
Description

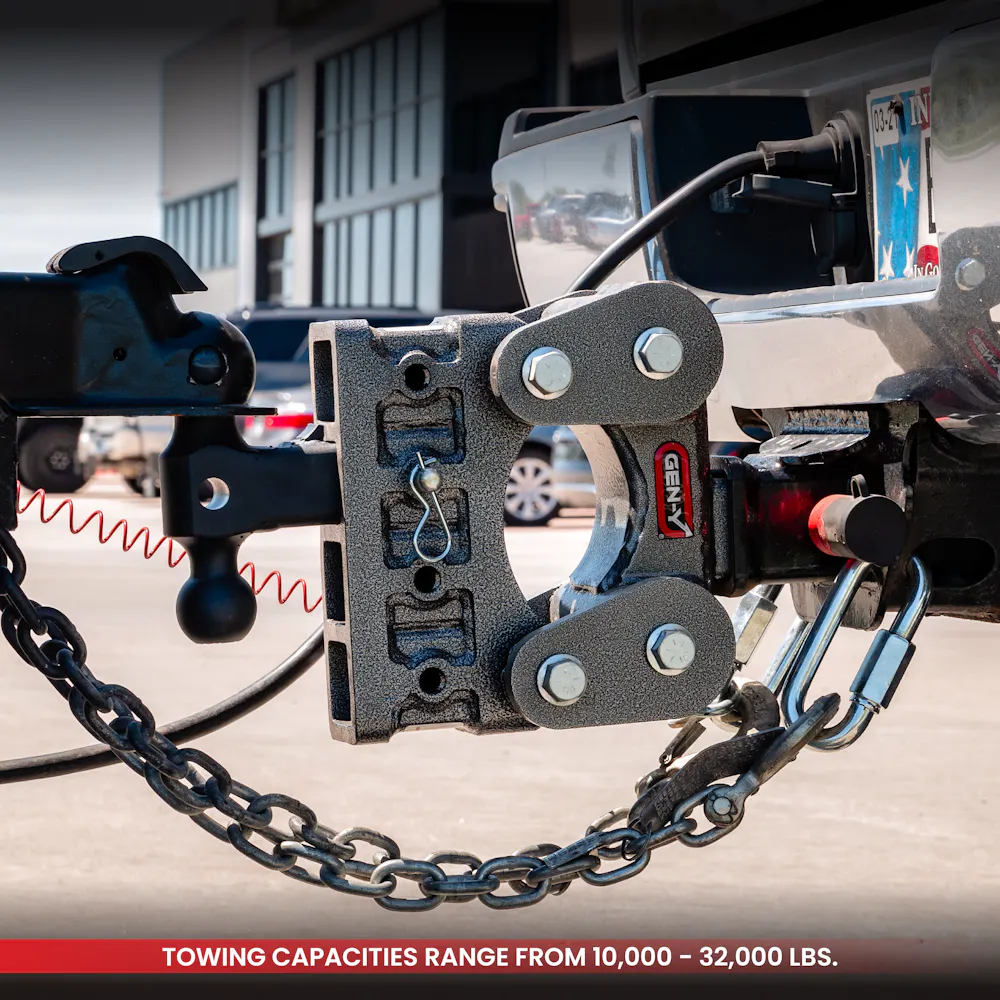

GEN-Y's Boss Adjustable Drop Hitches start at 10,000 LB towing capacity and go up to 32,000 LB towing capacity. The Torsion-Flex Drop Hitch is the best hitch for ultimate control and safety while towing any bumper style trailer on the market including pintle style couplings.

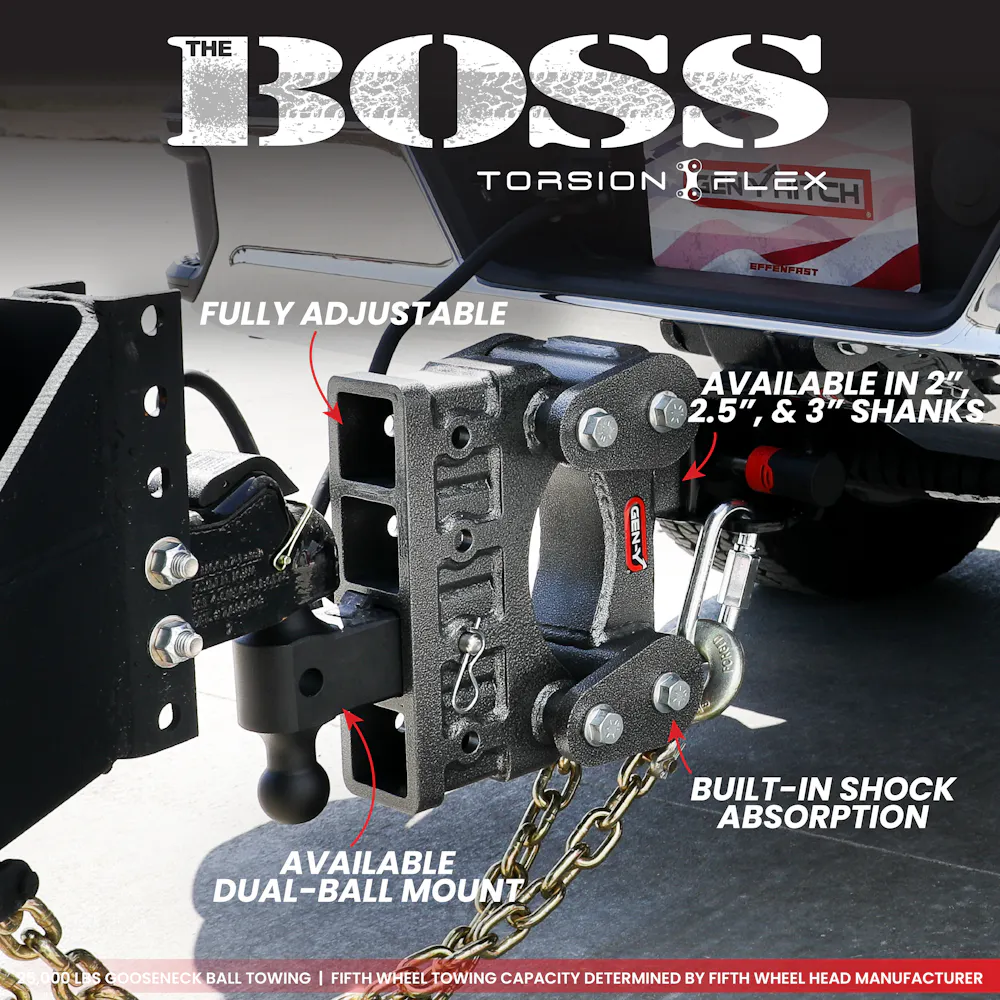

Features & benefits

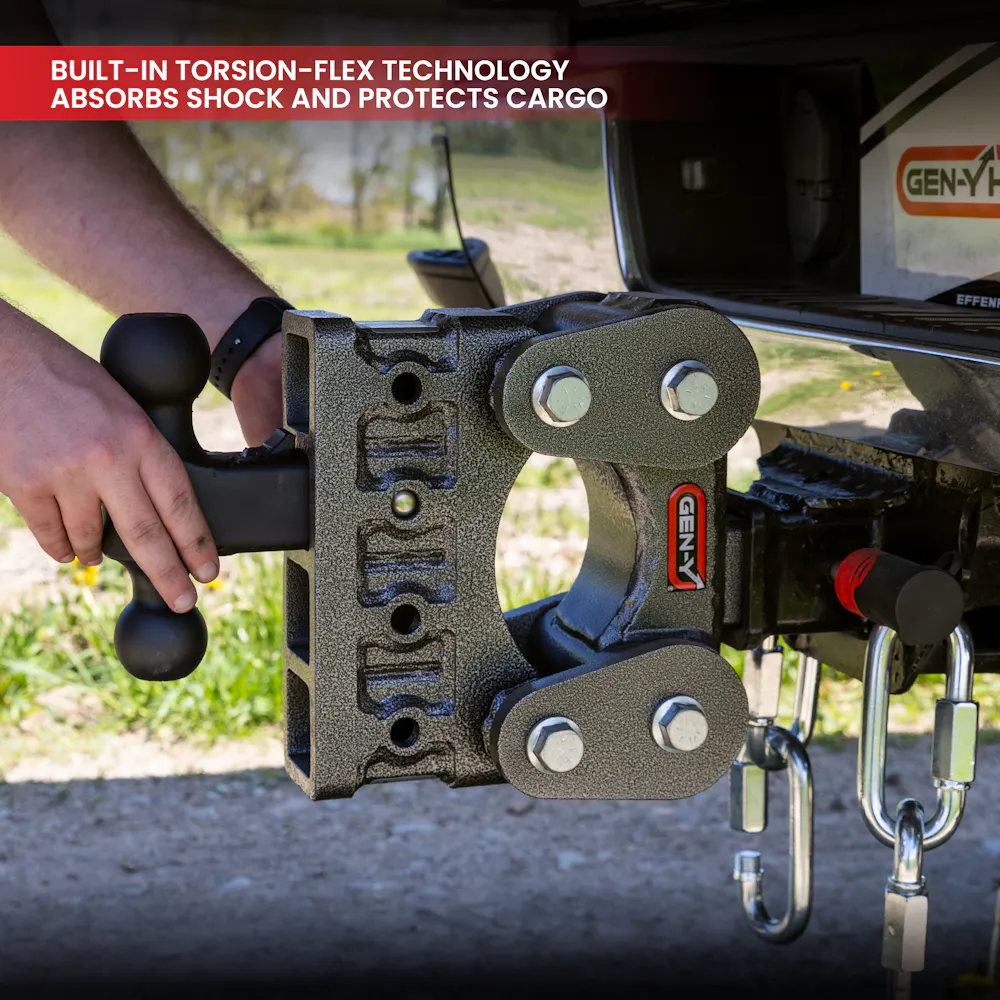

- TORSION-FLEX
- Dual-Ball, Pintle Lock, & Stab Kit
- Improved Control
- Made in USA
Specifications
- GTIN
- 00810006121155
- Weight
- 181 lb
- Height
- 20 in
- Length
- 24 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- GEN
- Warehouse brand code
- HHKM
- AAIA brand code
- HHKM
Attributes
- Add-On
- N/A
- Adjustable
- Yes
- Ball Diameter (in)
- 2, 2-5/16 Inch
- Ball Diameter (mm)
- 50.8, 63.5
- Box Number
- Ships in 2 boxes, including GH-0100-28x6x8.
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Class Rating
- 5
- Color
- Silver Vein
- Drop (in)
- 15
- Drop (mm)
- 381
- Drop Measurement
- 15
- Drop/Raise Range
- 15"
- Dual Ball Included
- Yes
- Finish
- Powder Coat
- Full Pallet Qty
- 16
- Full Pallet Quantity
- 16
- Gross Towing Weight
- 21000
- Material
- Steel
- Maximum Tongue Weight
- 2,400 LBS
- Number Of Hitch Balls Included
- 2
- Optimal Tongue Weight Range
- 1,500 - 2,400 LBS
- Overall Length (in)
- 18-3/4 Inch
- Pintle Lock Included
- Yes
- Qty of Balls included
- 2
- Qty of Pins included
- 2
- Quantity of Balls included
- 2
- Quantity of Pins included
- 2
- Receiver Size (in)
- 2.5
- Rise (in)
- 15
- Shank Size
- 2.5
- Shank Size (in)
- 2.5
- Shank Size (mm)
- 63.5
- Ship Method
- LTL
- Stabilizer Kit Included
- Yes
- Title
- GEN-Y - BOSS Drop Hitch - GH-1524
- Tongue Weight
- 2400
- Towing Capacity
- 21000
- Versa Ball Included
- Yes
Fitment status
This product is universal and will fit your application.
Application summary
Fits 2.5 Receiver
