Flaming River · FR1515CAM10E
Part #: FR1515CAM10E
Log in for inventory
Notify me when this item is in stock.
Description: 2010-15 CAMARO MANUAL RACK AND PINION - REPLACES OE ELECTRIC POWER STEERING RACK; 2010-15 CAMARO MANUAL RACK AND PINION - REPLACES OEM ELECTRIC POWER STEERING RACK
Description:
Description
GM used Electric Power Steering or Hydraulic Power Steering in select Camaro models in this year span. This rack is significantly lighter than the factory power steering system by eliminating hoses, pulleys and pumps and offers improved handling characteristics. A shorter pinion shaft allows for more clearance when working with large tube headers and engine swaps in custom applications. Made in USA.
Product Specs:
Bolts into same mounting location as OEM Power Rack
Overall length: 50.32”
Pivot points: 30.97”
Mounts center-to-center: 24.81”
9/16"-26 spline pinion shaft (Requires FR1709DD for install)
Inner tie rod end thread: M16 X 1.5
Inner tie rod end length: 13.95”
Features & benefits
- OE mounting location
- Overall length: 50.32”
- Pivot points: 30.97”
- Mounts center-to-center: 24.81”
- 9/16"-26 spline pinion shaft (Requires FR1709DD for install)
- Inner tie rod end thread: M16 X 1.5
- Inner tie rod end length: 13.95”
Information
2010-15 CAMARO MANUAL RACK AND PINION - REPLACES OE ELECTRIC POWER STEERING RACK
Application summary
| Year | Make / model |
|---|---|
| 2010-2015 | Chevrolet Camaro |
Specifications
- Weight
- 20 lb
- Height
- 9 in
- Length
- 58 in
- Width
- 8 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- FLA
- Warehouse brand code
- FLA
- AAIA brand code
- BJPZ
Attributes
- Bar CodePart No.
- FR1515CAM10E
- California Proposition 65
- Yes
- Title
- Flaming River Rack and Pinion
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2015 Chevrolet Camaro

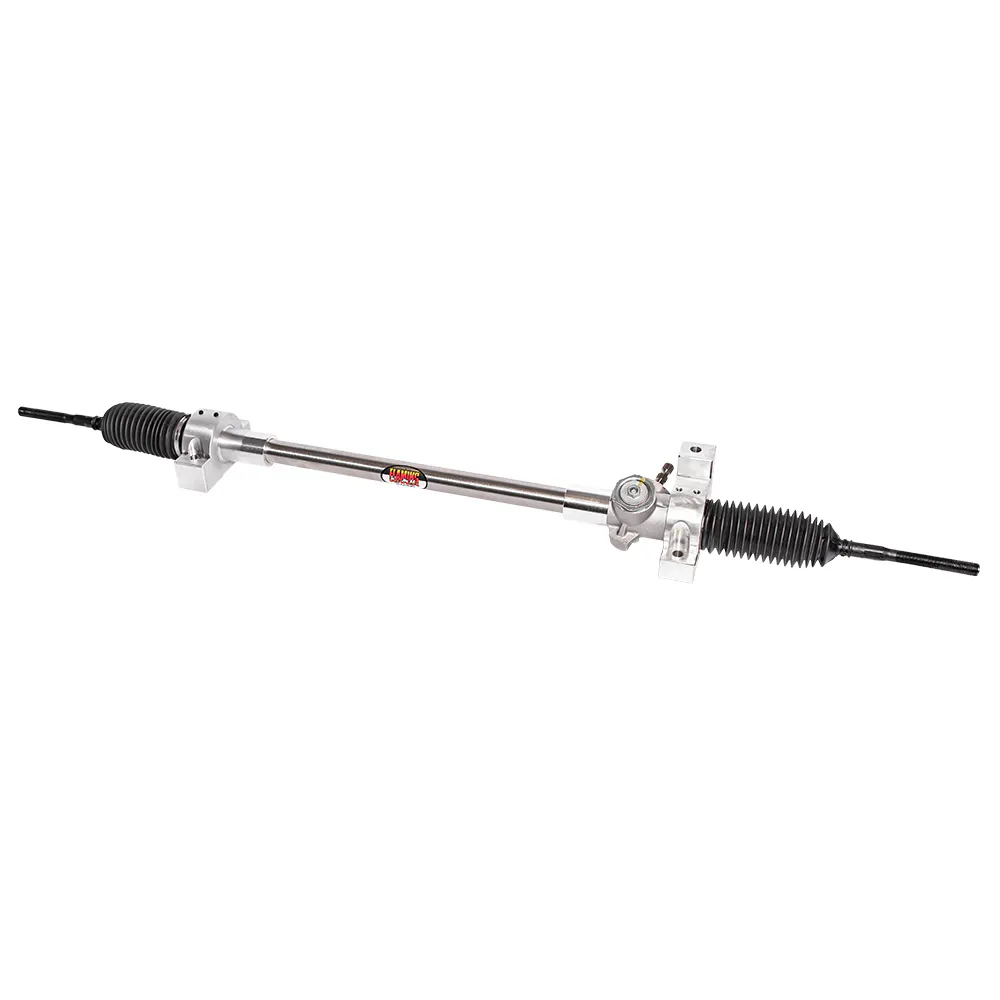

Flaming River FR1515CAM10E
