Flaming River / FR1046
Part #: FR1046
Loading...
Notify me when this item is in stock.
Description: BIG SWITCH 500 W/LOCK-OUT BRACKET
Description:
Description

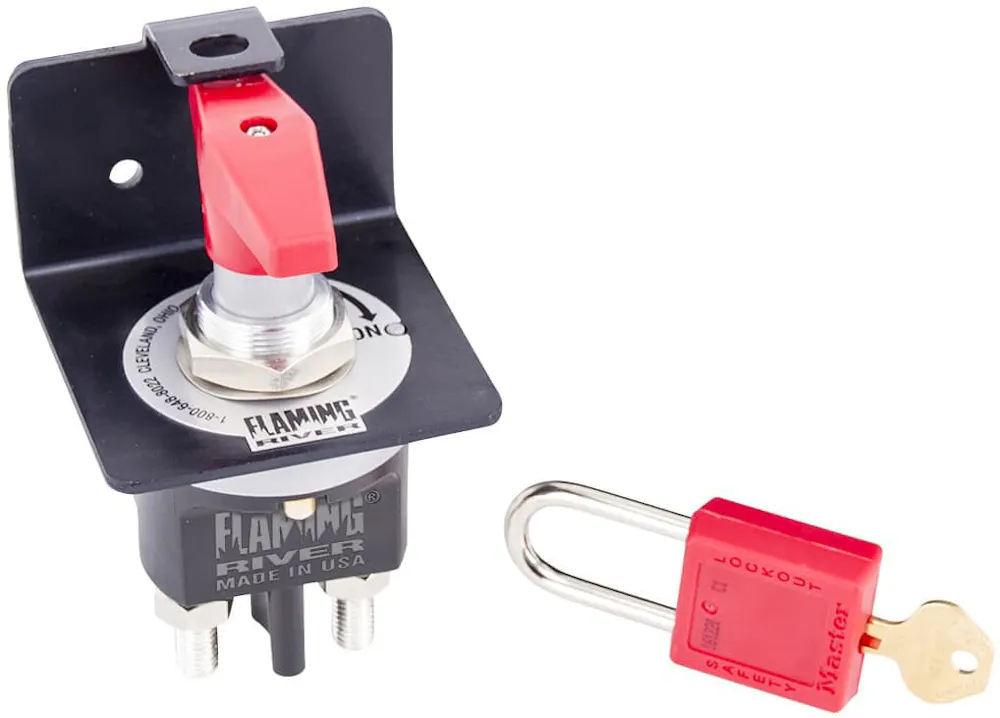

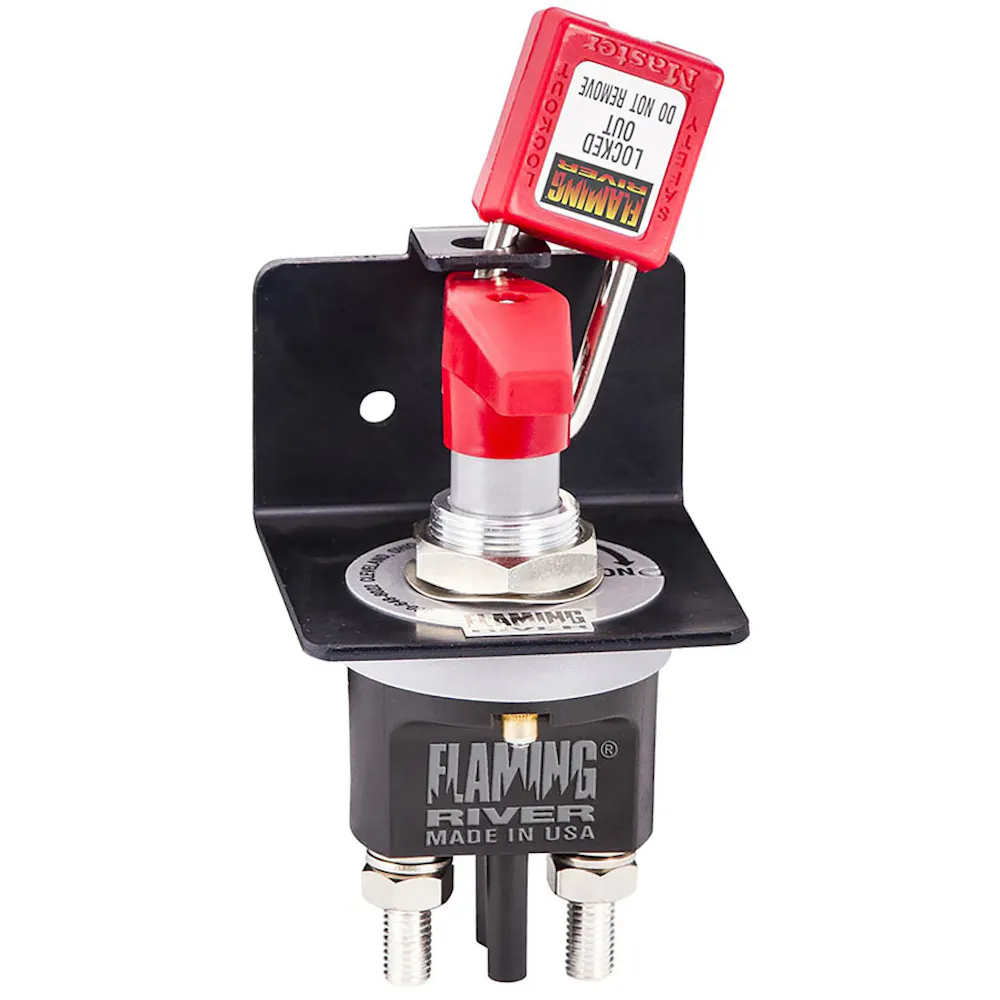

The Big Switch 500 is a heavy-duty switch which boasts a 500 Amp continuous rating due to its unique internal silver tin oxide pads and silver-plated terminals. The rugged body is made from glass-filled nylon for impact resistance and extreme temperature resistance. The Big Switch 500 can withstand extreme vibration; making it ideal for both the racing and heavy-duty trucking markets. The FR1046 comes with our standard lock-out bracket for compliance with OSHA lock-out/tag-out regulation 1910.14
Features & benefits

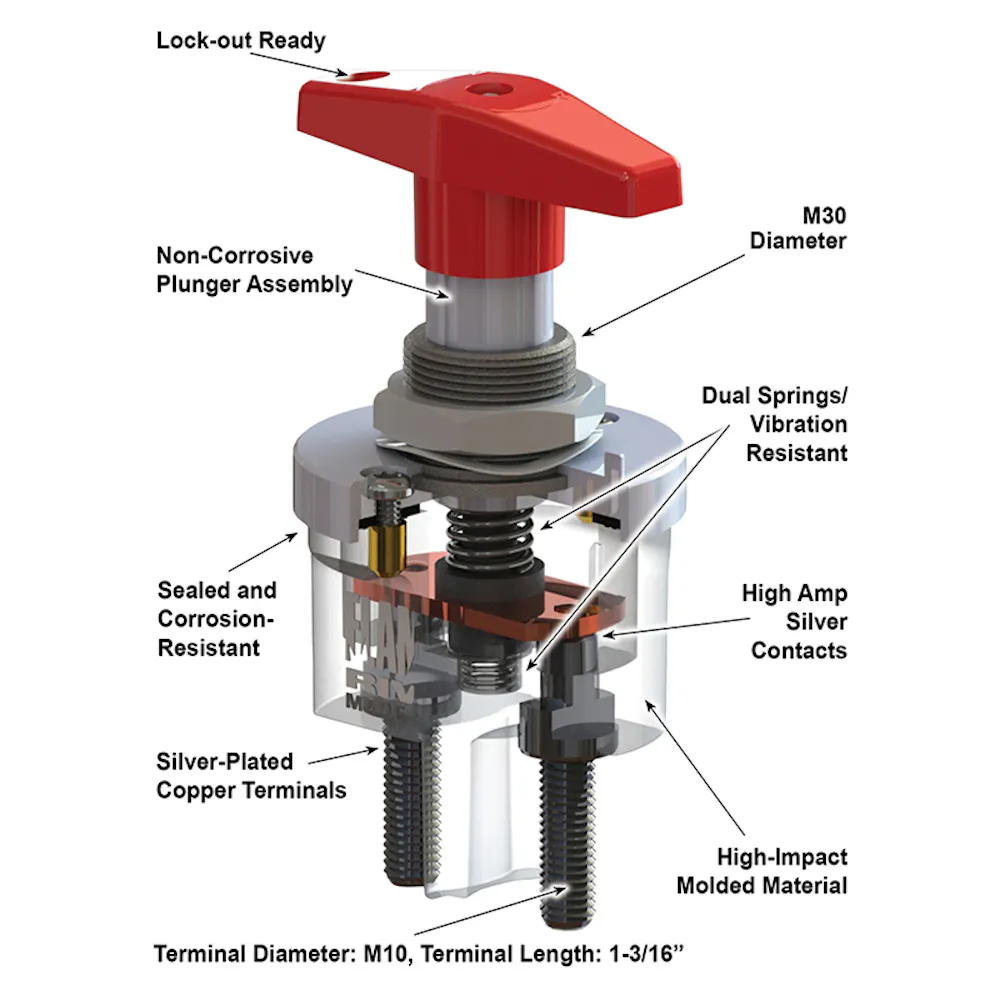

- The Big Switch 500 is a heavy-duty switch which boasts a 500 Amp continuous rating due to its unique internal silver tin oxide pads and silver-plated terminals.
Information
BIG SWITCH 500 W/LOCK-OUT BRACKET
Specifications
- Weight
- 2 lb
- Height
- 3 in
- Length
- 8 in
- Width
- 7 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- FLA
- Warehouse brand code
- FLA
- AAIA brand code
- BJPZ
Attributes
- Bar CodePart No.
- FR1046
- California Proposition 65
- Yes
- Title
- Flaming River Battery Disconnect
Fitment status
This product is universal and will fit your application.
Flaming River FR1046
