FiTech / 96791
Part #: 96791
UPC: 810128300216
Loading...
Notify me when this item is in stock.

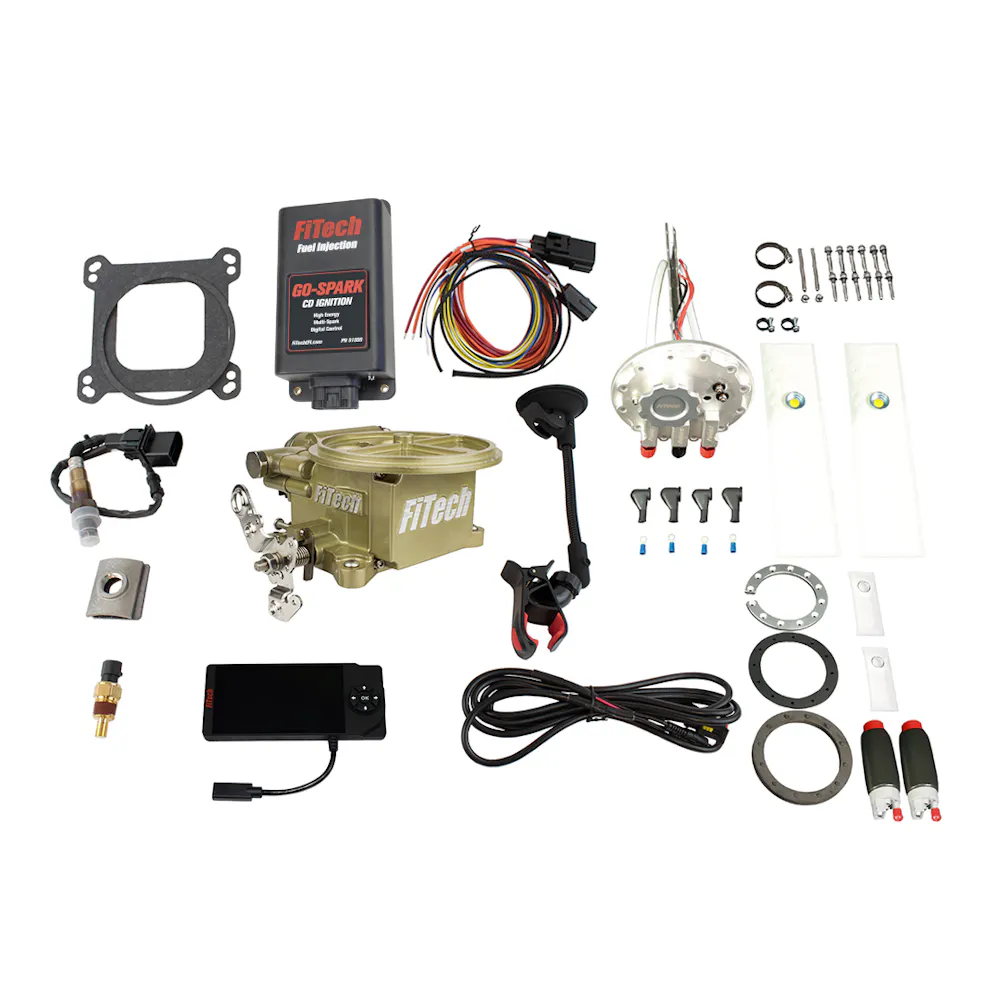

Description: Go EFI 2 Barrel 400 HP Classic Gold EFI System Master Kit; Go EFI 2 Barrel 400 HP Classic Gold EFI System With Go Fuel In-Tank Dual Pump Module & Go Spark CDI Box Master Kit
Description:
Description
If you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. Go Fuel In Tank Dual Pump Module With 2 Inch Fill dual pump supports up to 1600 HP. The Dual Module is supplied with two 340 LPH pumps and has dual outlets. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels. FiTech Go-Spark CD ignitions enhance the performance of fuel injected or carbureted engines. The high-output multi-spark technology ensures complete combustion and improves drivability by delivering full energy sparks from idle through high-rpm. Optimize your EFI or carb ignition setup with FiTech Go-Spark CD ignitions.
Features & benefits
- Works with 4-, 6-, & 8-cylinder engines
- Fits most EFI ready tanks
- AN-6 pressure ports
- Supports engines up to 400 HP
- Low-profile design
- 2” fuel fill
- One sealed connector for a clean installation
- Multi-spark to 2,500 rpm
- Maximum 10,000 rpm
- Hand-held controller with 8GB data log capabilities
- Can change air/fuel ratios and ignition timing on-the-fly
- Built-in pressure regulator
- Internal MAP sensor
- -06 AN fuel inlet fitting
- Adjustable fan control switches
- Uses easy-to-replace, GM-type sensors and Bosch 4.2 wideband oxygen sensors
- Wet flow swirl spray annual discharge obtains complete atomization
- Many safety features and OBD II fault code readouts
- Works with 12 volt ignition systems
- Spark control without the need for an external spark box
- Designed for applications making at least 6 in. of vacuum at idle
- Depth of 7” to 16”
- Universal fit
- Dual 340 LPH Pumps
Specifications
- GTIN
- 00810128300216
- Weight
- 35 lb
- Height
- 18 in
- Length
- 28 in
- Width
- 18 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- EPA Classification
- 3
Fitment status
This product is universal and will fit your application.
Resources
FiTech 96791
