FiTech · 76312
Part #: 76312
UPC: 810128300773
Log in for inventory
Notify me when this item is in stock.

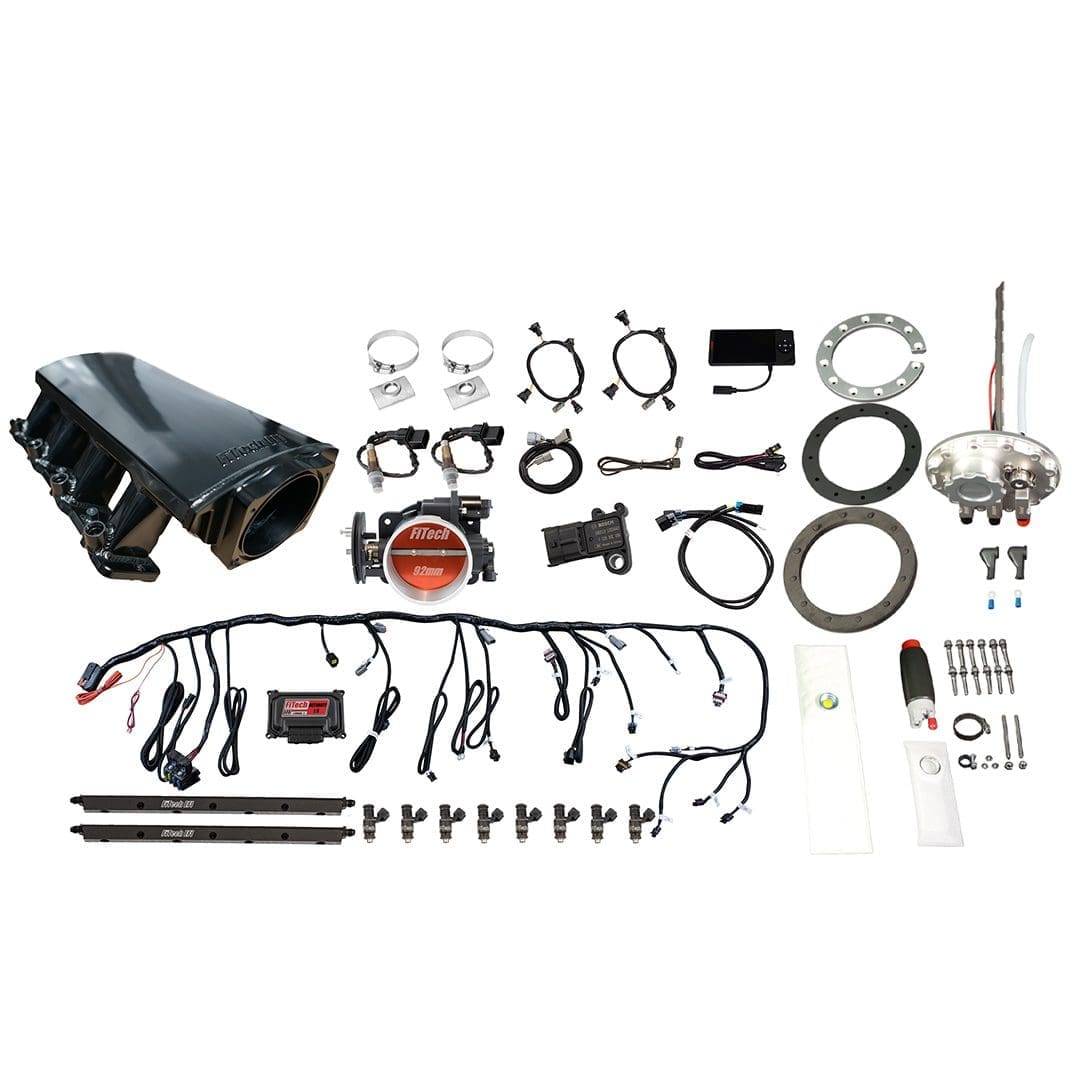

Description: Ultimate LS 500 HP EFI System Master Kit; Ultimate LS 500 HP EFI System With Short LS3 Port Intake, Transmission Control & Go Fuel In-Tank 340 LPH Fuel Pump Returnless Module With 2 Inch Fill Master Kit
Description:
Description
If you're looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. The Go Fuel In Tank Fuel Pump Returnless Module With 2 Inch Fill single pump model supports up to 800 HP. The Single Pump model is supplied with an efficient 340 LPH pump complemented with an internal regulator to maintain 58-psi so it can be run returnless. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2in diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7in : 16in in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
Features & benefits
- 24X and 58X crank and cam compatible
- Programmable touchscreen hand-held controller with data log features
Specifications
- GTIN
- 00810128300773
- Weight
- 37 lb
- Height
- 18 in
- Length
- 28 in
- Width
- 18 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- EPA Classification
- 3
Fitment status
This product is universal and will fit your application.
