FiTech · 40019
Part #: 40019
UPC: 854549007255
Loading...
Notify me when this item is in stock.
Description: This Hy-Fuel Single Pump Retro Fit Fuel Pump Kit (In-Tank) has a Billet aluminum construction; 35 square inch filter sock; Built-in fuel pressure regulator & block-off plate; 340 L/PH fuel pump; E-85 gasoline compatibility, & more.
Description:
Description

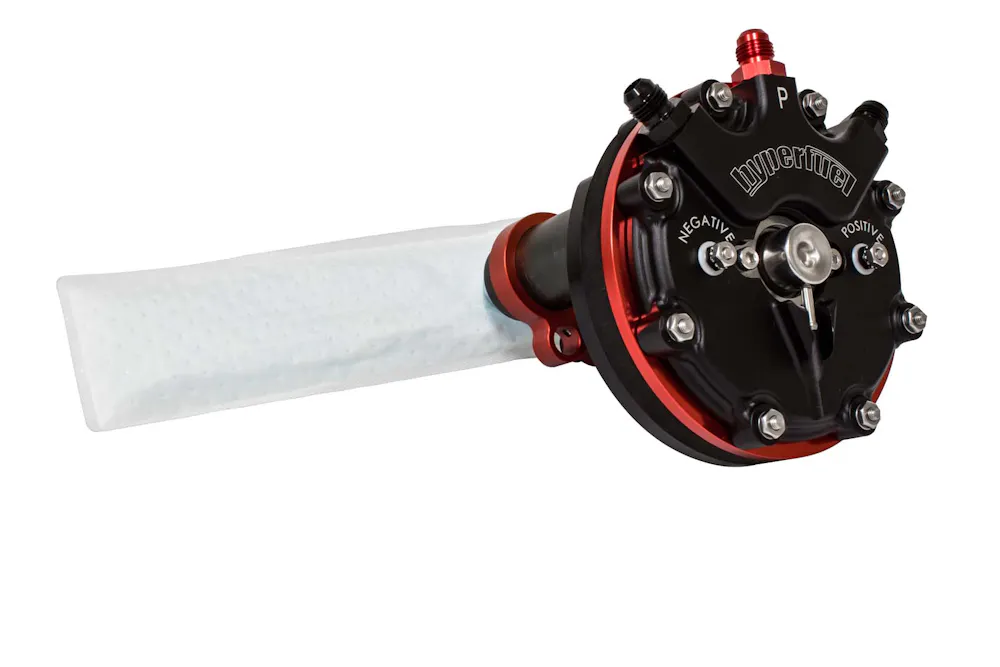

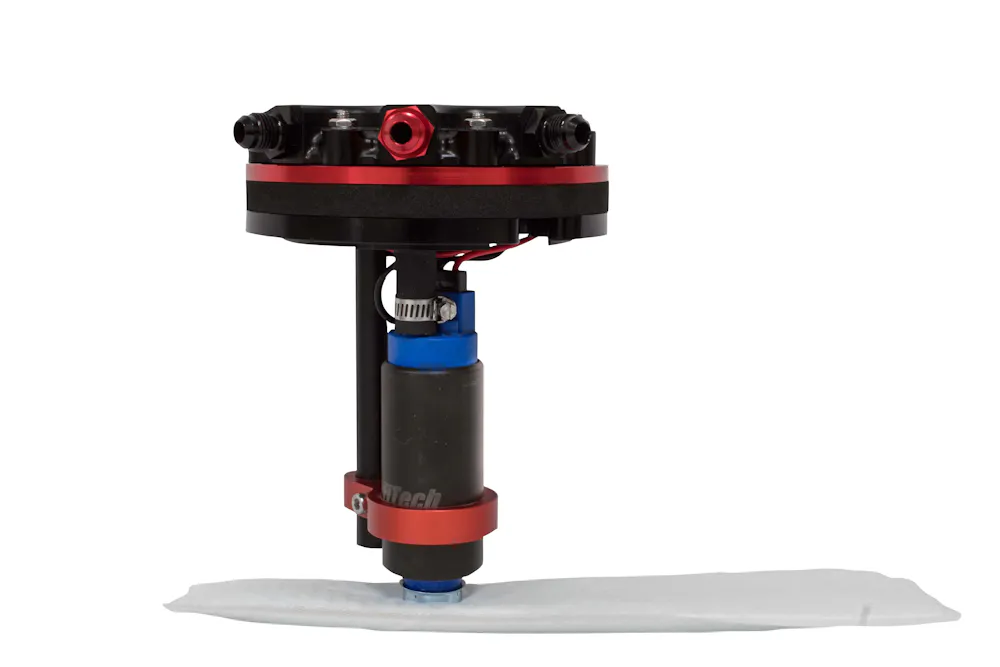

The Hy-Fuel Single Pump Retro Fit Fuel Pump Kit (In-Tank) is a HyperFuel solution to in-tank retrofit kits. You can experience the advantage of a high-volume fuel system with the pump inside the fuel tank. This system can be used as a return or returnless system with the use of the built-in regulator. With the pump submerged in fuel, it will run quieter and last longer. With its multi-purpose ring and adjustable pump height, this is the easiest way to convert your existing or new fuel tank to an in-tank EFI fuel system. This system can be used in fuel tanks ranging in depth from 6" to 14." Deeper tanks can be accommodated with an optional fuel pump extension kit. The In-Tank Retrofit Kit includes a 340 L/PH fuel pump and a built-in fuel pressure regulator pre-set to 58 PSI. System is suitable for up to 800 HP.
Information

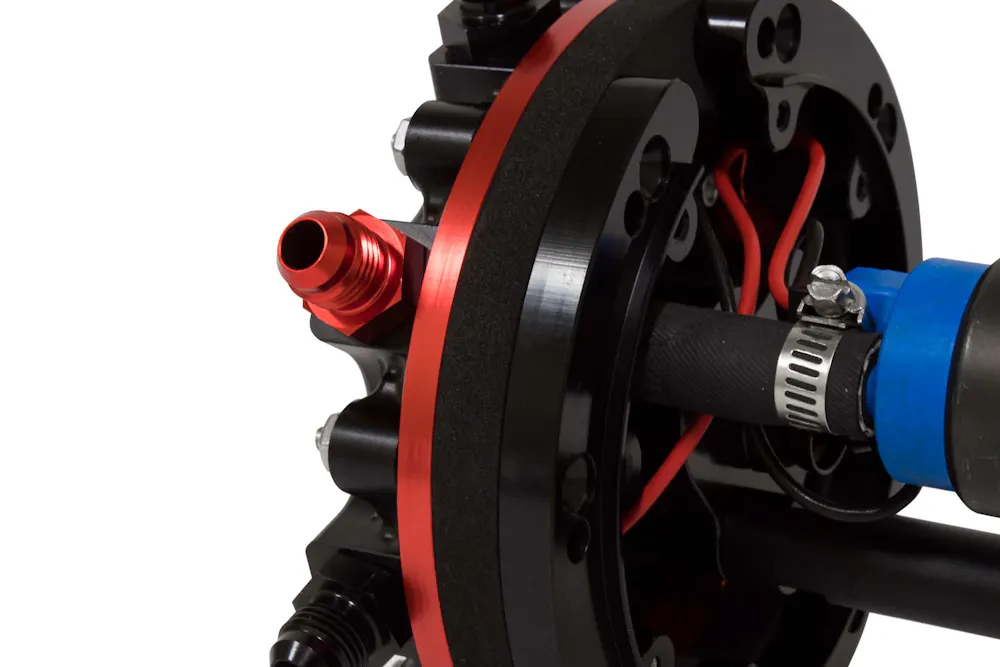

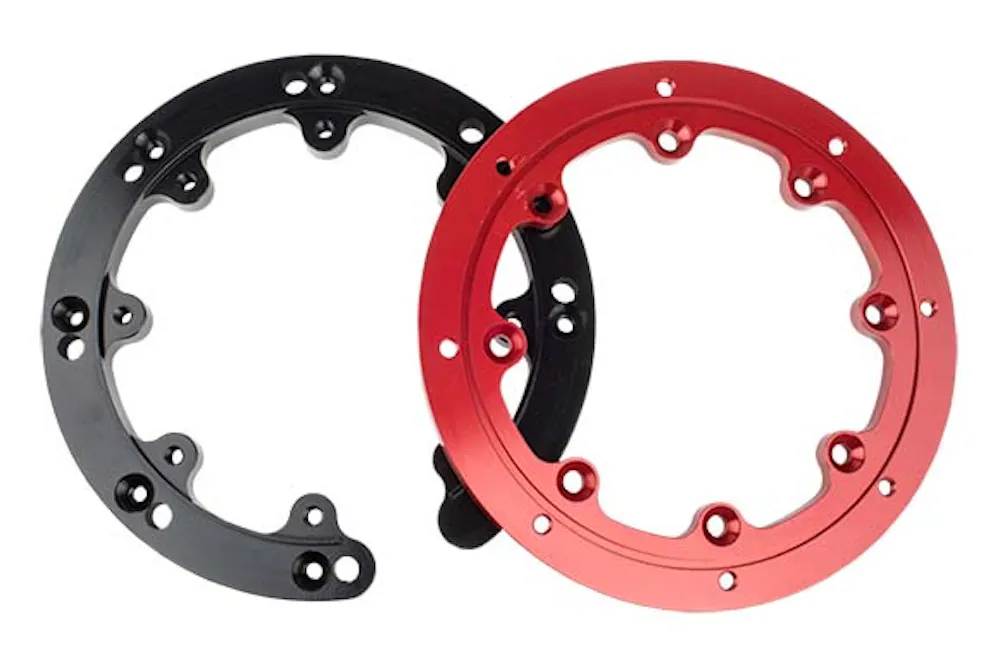

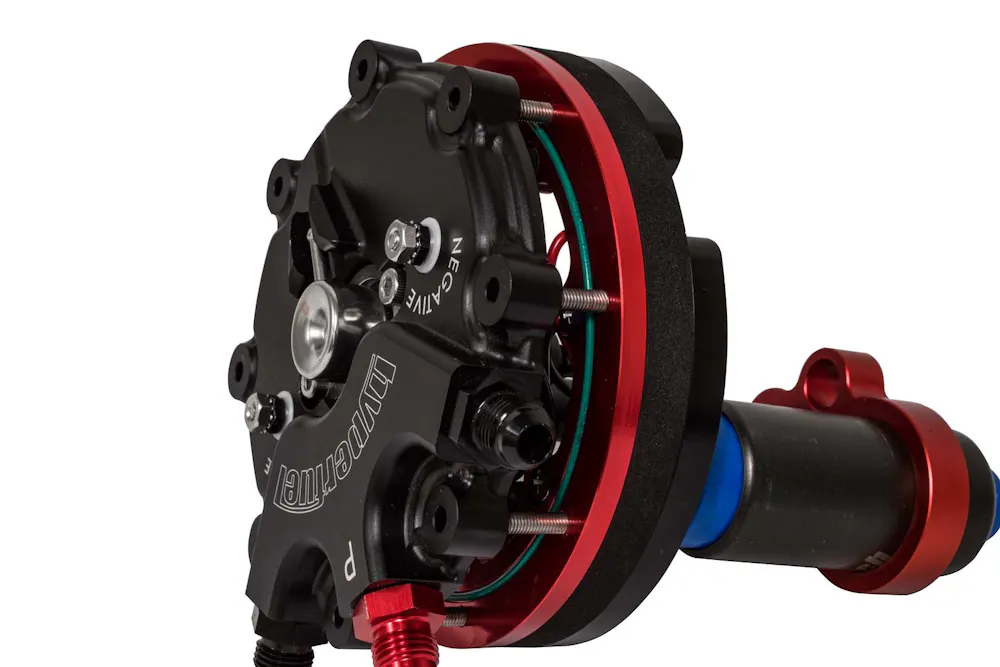

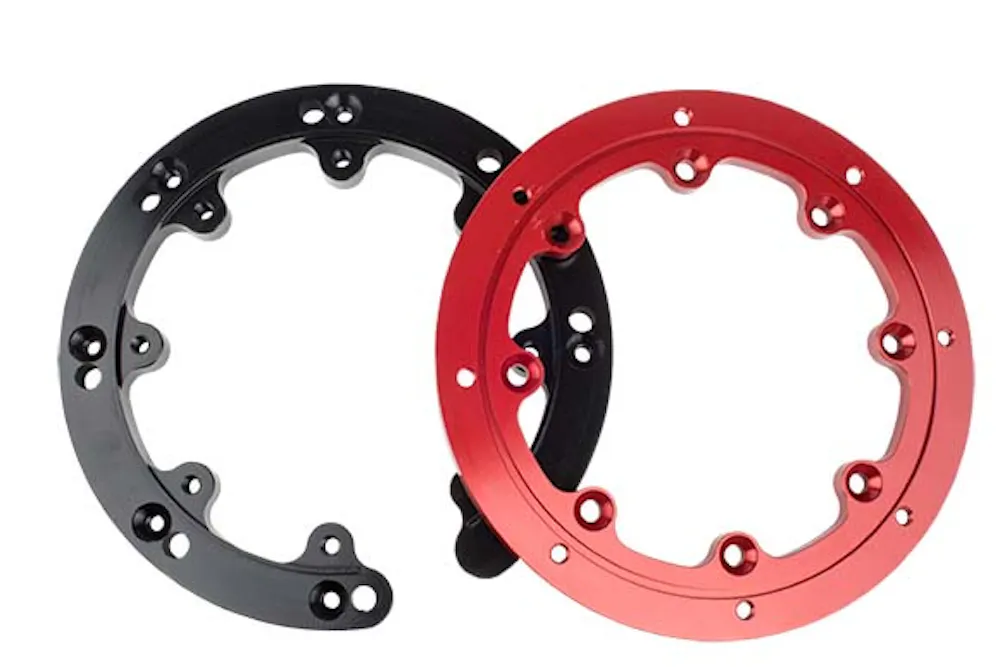

The Hy-Fuel Single Pump Retro Fit Fuel Pump Kit (In-Tank) features the following: Ability to Install in almost any tank with a depth of 6-inches to 14-inches to fit nearly any popular application; Low profile design for maximum clearance from bottom of the floor pan of vehicle; Billet aluminum construction with precision machined components; 35 square inch filter sock; Unique O-ring 360° mounting flange permits easy removal for servicing and re-use (Flange incorporates -06 AN fittings); Built-in fuel pressure regulator and block-off plate so system can be run as a returnless or return style setup; High-quality 340 L/PH fuel pump for engines up to 800 HP; and Compatibility with E-85 gasoline.
Specifications
- GTIN
- 00854549007255
- Weight
- 5 lb
- Height
- 8 in
- Length
- 16 in
- Width
- 8 in
- EO
- Not in CA
- Life cycle
- Obsolete
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- California Proposition 65
- Yes
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
