FiTech · 36412
Part #: 36412
UPC: 812061036672
Loading...
Notify me when this item is in stock.

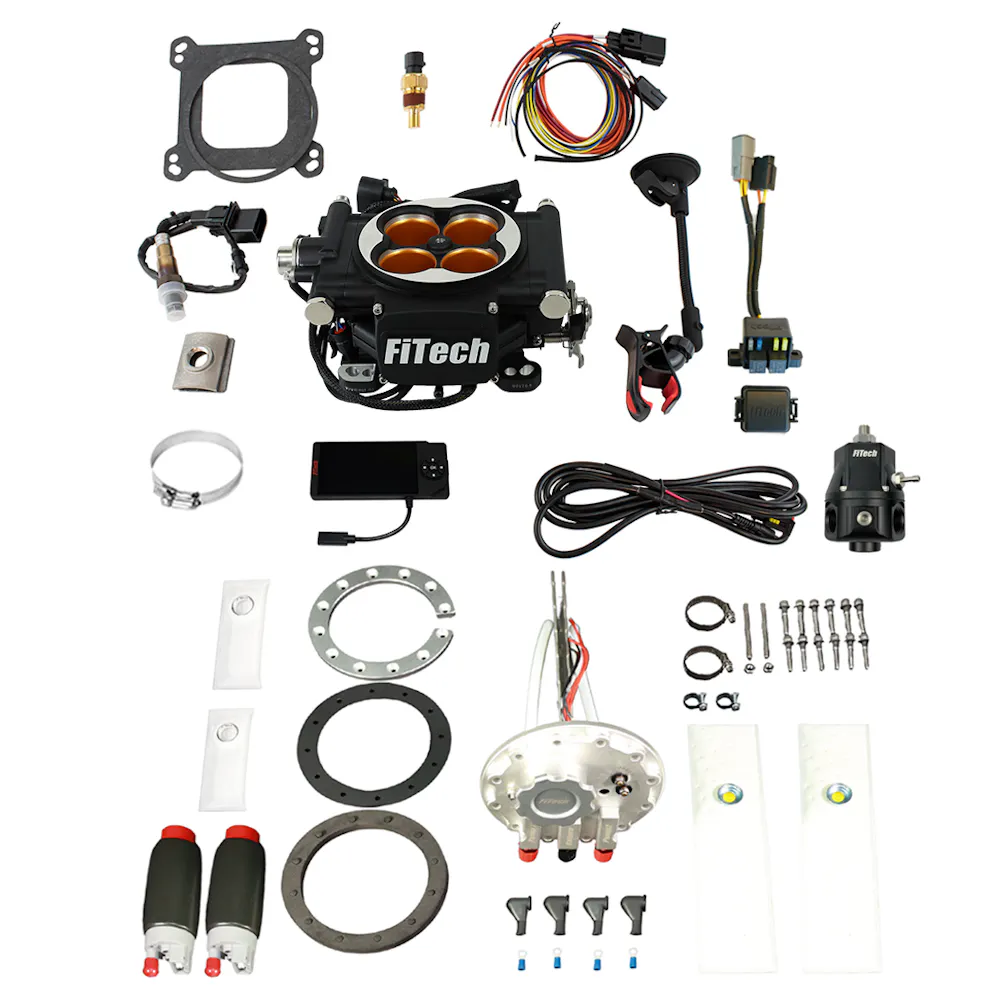

Description: Go EFI 8 1200 HP Matte Black Finish System With Go Fuel Dual Pump In-tank Module & Go Fuel Regulator Master Kit
Description:
Description
If you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. Go Fuel In Tank Dual Pump Module With 2 Inch Fill dual pump supports up to 1600 HP. The Dual Module is supplied with two 340 LPH pumps and has dual outlets. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
Features & benefits
- Works with 4-, 6-, & 8-cylinder engines
- Universal fit
- Dual 340 LPH Pumps
- Supports engines up to 1200 HP
- Fits most EFI ready tanks
- AN-6 pressure ports
- Low-profile design
- 2” fuel fill
- Can handle 25 lbs. of boost from a blow-through turbo, blower, or single roots supercharger—and can also take a single stage of wet nitrous
- Hand-held controller with 8GB data log capabilities
- Can change air/fuel ratios and ignition timing on-the-fly
- Uses easy-to-replace, GM-type sensors and Bosch 4.2 wideband oxygen sensors
- Air conditioning idle speed input kick-up
- Internal MAP sensor
- -06 AN fuel inlet fittings
- Two adjustable fan control switches
- Wet flow swirl spray annual discharge obtains complete atomization
- Built-in pressure regulator
- Many safety features and OBD II fault code readouts
- Works with 12 volt ignition systems
- Spark control without the need for an external spark box
- Designed for applications making at least 6 in. of vacuum at idle
- Depth of 7” to 16”
Specifications
- GTIN
- 00812061036672
- Weight
- 18 lb
- Height
- 8 in
- Length
- 15 in
- Width
- 22 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- California Proposition 65
- Yes
- EPA Classification
- 3
- Maximum Horsepower with Gas
- 1200 hp
Fitment status
This product is universal and will fit your application.
