FiTech · 36371
Part #: 36371
UPC: 812061039376
Loading...
Notify me when this item is in stock.

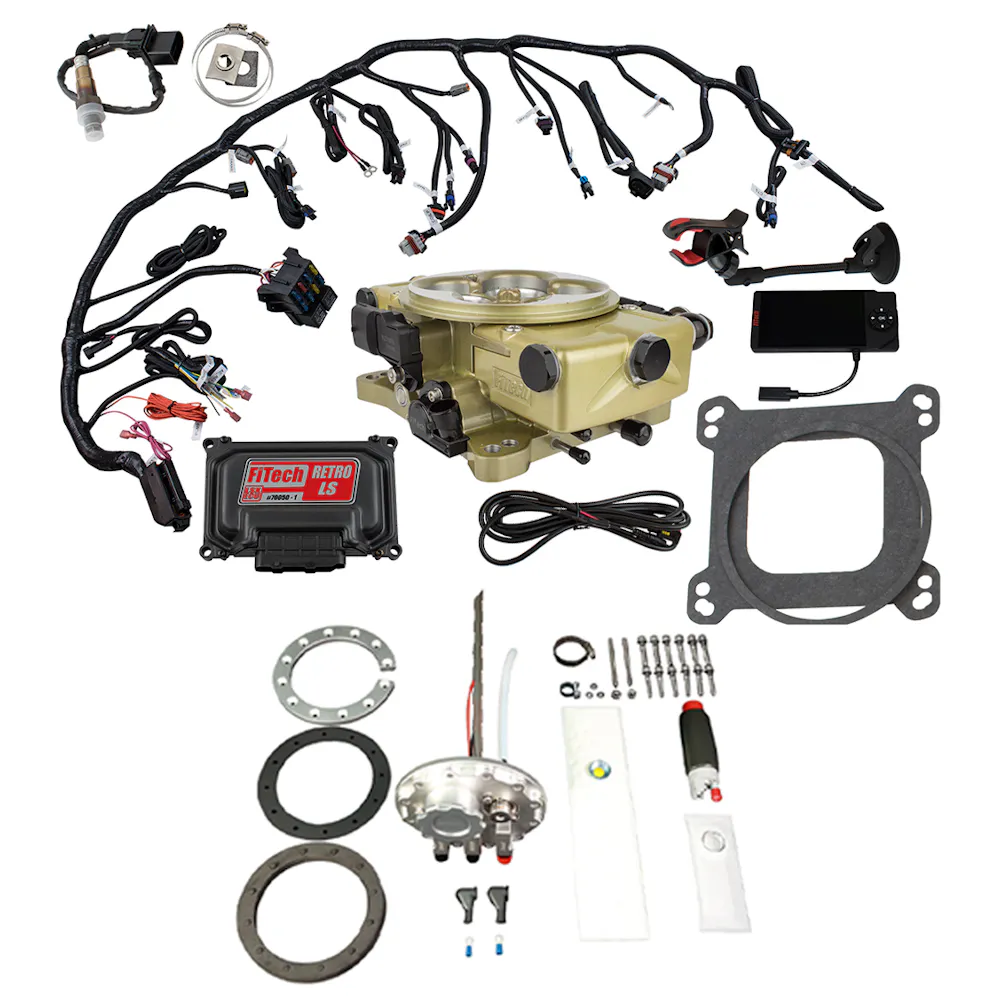

Description: Retro LS 650 HP Classic Gold EFI System Master Kit; Retro LS 650 HP Classic Gold EFI System With Go Fuel 340 LPH In-Tank Master Kit
Description:
Description
f you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. The Go Fuel In-Tank Fuel Pump Returnless Module With 2 Inch Fill single pump model supports up to 800 HP. The Single Pump model is supplied with an efficient 340 LPH pump complemented with an internal regulator to maintain 58-psi so it can be run returnless. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
Features & benefits
- Classic gold finish for that Carburetor look with the drivability of EFI.
- Virtually maintenance free – keeps your vehicle reliable and ready to drive.
- Depth of 7” to 16”
- Innovative Annular discharge design.
- 4 bar (58PSI) regulator
- Universal fit
- 340 LPH
- Fits most EFI ready tanks
- AN-6 pressure port
- Low-profile design
- 2” fuel fill
- 1 BAR MAP sensor, TPS, and IAC sensor integrated onto the throttle body.
- Flow matched 80 lbs injectors.
- Semi sequential fuel and full spark control.
- Fits V8 engines from 250-650 horsepower.
- Bosch wide band controlled.
- Trouble-free performance with today’s fuels – put an end to vapor lock and fuel varnish problems!
- 24x and 58x crank and cam compatible.
- 4150 style 4BBL mounting flange – Bolts on in place of carburetor.
- Fully self-tuning ECU – No laptop required.
- Custom cam friendly.
- Includes full color, touch screen LCD for both basic and advanced tuning options.
- Knock sensor control.
- Transmission control suitable for 4L60, 4L65, 4L80 GM transmissions.
- Connections for Ford, GM TH350, 700R4 and other transmission linkages.
- Easy plug and play harnesses with minimal connections.
Specifications
- GTIN
- 00812061039376
- Weight
- 32 lb
- Height
- 11 in
- Length
- 24 in
- Width
- 18 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- EPA Classification
- 3
- Maximum Horsepower with Gas
- 650 hp
Fitment status
This product is universal and will fit your application.
