FiTech · 36302
Part #: 36302
UPC: 812061036535
Loading...
Notify me when this item is in stock.

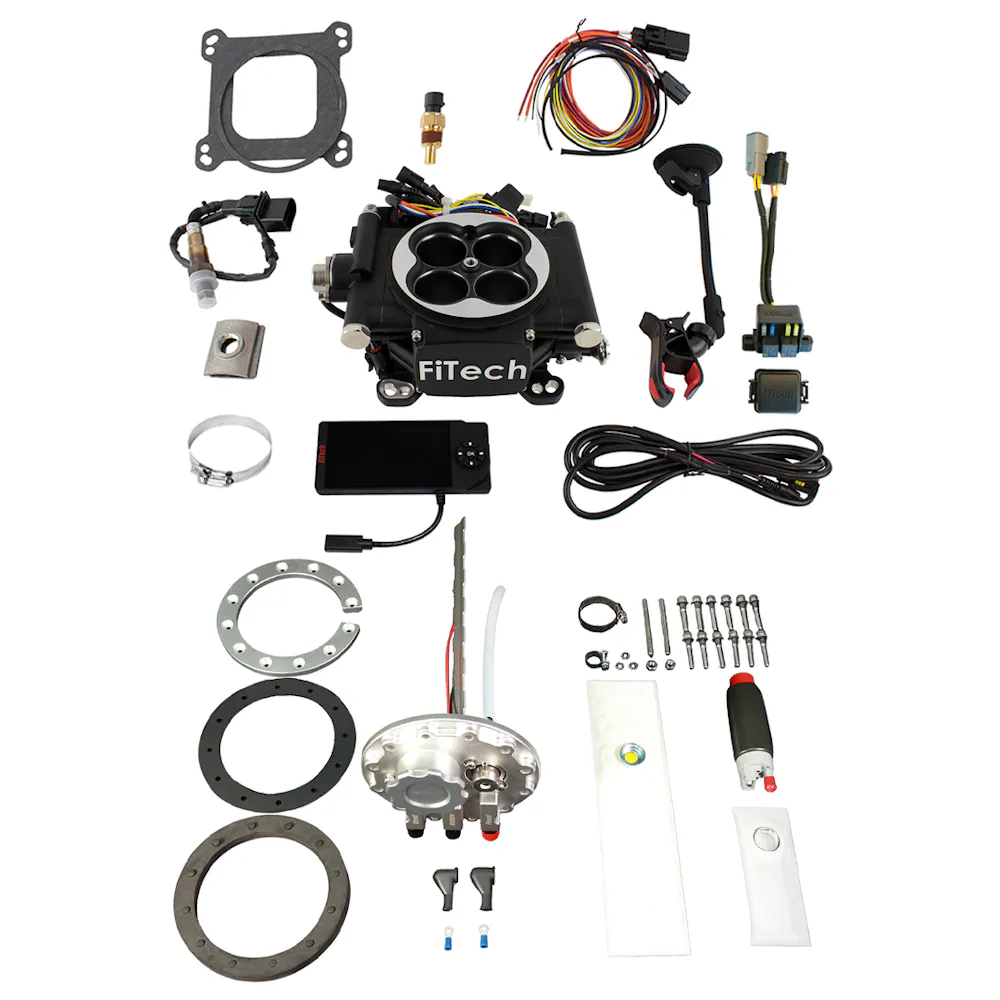

Description: Go EFI 4 600 HP Matte Black EFI System With Go Fuel Returnless In-Tank Module Master Kit
Description:
Description
If you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules. The Go Fuel In-Tank Fuel Pump Returnless Module With 2 Inch Fill single pump model supports up to 800 HP. The Single Pump model is supplied with an efficient 340 LPH pump complemented with an internal regulator to maintain 58-psi so it can be run returnless. The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump. The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
Features & benefits
- Works with 4-, 6-, & 8-cylinder engines
- 340 LPH
- Fits most EFI ready tanks
- Supports engines up to 600 HP
- AN-6 pressure port
- Low-profile design
- 2” fuel fill
- Hand-held controller with 8GB data log capabilities
- Can change air/fuel ratios and ignition timing on-the-fly
- Internal MAP sensor
- -06 AN fuel inlet fittings
- Built-in pressure regulator
- Adjustable fan control switches
- Uses easy-to-replace, GM-type sensors and Bosch 4.2 wideband oxygen sensors
- Wet flow swirl spray annual discharge obtains complete atomization
- Many safety features and OBD II fault code readouts
- Works with 12 volt ignition systems
- Spark control without the need for an external spark box
- Designed for applications making at least 6 in. of vacuum at idle
- Depth of 7” to 16”
- 4 bar (58PSI) regulator
- Universal fit
Specifications
- GTIN
- 00812061036535
- Weight
- 17 lb
- Height
- 8 in
- Length
- 15 in
- Width
- 22 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- California Proposition 65
- Yes
- EPA Classification
- 3
- Maximum Horsepower with Gas
- 600 hp
Fitment status
This product is universal and will fit your application.
