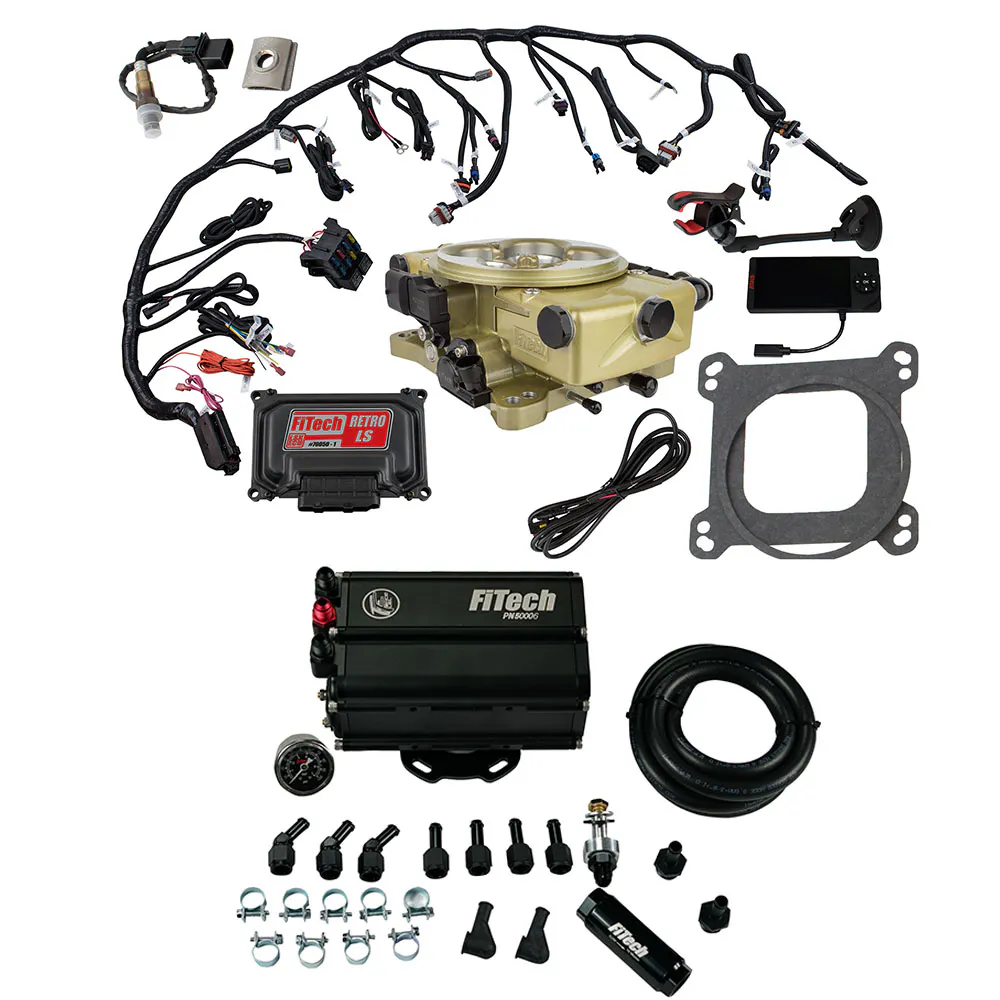

Description: Retro LS 650 HP Classic Gold EFI System Master Kit; Retro LS 650 HP Classic Gold EFI System With Go Fuel Force Fuel Mini Surge Tank Master Kit
Description:
Description
The Go Fuel Force Fuel Mini Surge Tank makes the upgrade to fuel injection even easier!Like the other Force Fuel Systems, the Mini is fed through a low-pressure mechanical pump (or electric) saving the need to modify the entire fuel system. The reservoir of the Mini is equipped with an efficient 255-LPH pump and internal regulator to provide a consistent 58-psi of fuel pressure for your EFI system. The compact design fits easily under the hoods of street rods and smaller engine compartments. To make installation even easier, its mounting bracket is designed to be installed in four helpful positions.The Force Fuel Mini is supplied with high pressure fuel hose, AN fittings, a liquid filled gauge, 10-micron filter and a return line bung to complete the installation.
Features & benefits
- Classic gold finish for that Carburetor look with the drivability of EFI.
- Virtually maintenance free – keeps your vehicle reliable and ready to drive.
- Capable of supporting the fuel demands of 600-hp engines on gasoline
- Innovative Annular discharge design.
- Sturdy, versatile mounting bracket offers four mounting options
- 255 LPH fuel pump and internal regulator for reliable fuel supply
- Effective 10-micron serviceable filter ensures the best filtration available
- Supplied with high pressure fuel hose, AN fittings, return line fitting bung and liquid filled gauge
- Flow matched 80 lbs injectors.
- Semi sequential fuel and full spark control.
- Fits V8 engines from 250-650 horsepower.
- 1 BAR MAP sensor, TPS, and IAC sensor integrated onto the throttle body.
- Bosch wide band controlled.
- Trouble-free performance with today’s fuels – put an end to vapor lock and fuel varnish problems!
- 24x and 58x crank and cam compatible.
- 4150 style 4BBL mounting flange – Bolts on in place of carburetor.
- Fully self-tuning ECU – No laptop required.
- Custom cam friendly.
- Includes full color, touch screen LCD for both basic and advanced tuning options.
- Knock sensor control.
- Transmission control suitable for 4L60, 4L65, 4L80 GM transmissions.
- Connections for Ford, GM TH350, 700R4 and other transmission linkages.
- Easy plug and play harnesses with minimal connections.
Specifications
- GTIN
- 00812061039147
- Weight
- 21 lb
- Height
- 8 in
- Length
- 24 in
- Width
- 18 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- FIT
- Warehouse brand code
- FIT
- AAIA brand code
- GMXW
Attributes
- EPA Classification
- 3
- Maximum Horsepower with Gas
- 650 hp
Fitment status
This product is universal and will fit your application.
