FEL-PRO · 1093
Part #: 1093
UPC: 084113010934
Log in for inventory
Notify me when this item is in stock.

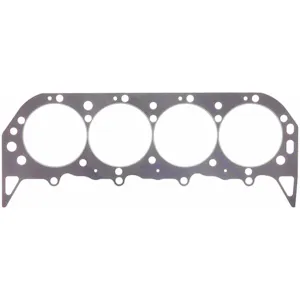

Description: FEL-PRO 1093 Steel core laminate Engine Cylinder Head Gasket
Description:
Description
Fel-Pro(R) gaskets are specifically designed for the repair environment to deliver a reliable seal on even the most troublesome applications. Designed for imperfect sealing surfaces and manufactured with proprietary materials, you can count on Fel-Pro for innovative sealing solutions for the real-world repair environment.
Features & benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
- Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.
- Raises combustion sealing force to roughly three times that of standard head gaskets.
- Steel wire rings for the greatest combustion seal strength.
- Not intended for use in emission controlled vehicles.
Specifications
- GTIN
- 00084113010934
- Weight
- 0.9 lb
- Height
- 0.1 in
- Length
- 28.8 in
- Width
- 10.8 in
- Life cycle
- Available to Order
- Alt. part number
- 1093
- AAM brand code
- FEL
- Warehouse brand code
- FEL
- AAIA brand code
- BCWV
Attributes
- Alternate Part Number
- 1093
- Application Notes
- Cast iron or aluminum heads - Pro Stock Chevrolet, Oldsmobile, Pontiac Engs. - w/Chevrolet bolt pattern - 4.840" bore centers
- Bore Size (in.)
- 4.620
- California Proposition 65
- No
- Combustion Chamber Volume (cc)
- 13.900
- Combustion Seal Design
- Pre-flattened steel wire
- Cylinder Bore Diameter
- 4.620
- Engine Displacement
- 396, 402, 427, 454, 502, 510, 540, 572, Chevrolet (4.840 Bore Centers), Oldsmobile (4.840 Bore Centers), Pontiac (4.840 Bore Centers)
- Engine Family
- Chevrolet V8 Big Block, Chevrolet/GM V8 Racing Big Block
- Gasket Sealant Included
- No
- Grade Type
- Performance
- Material
- Steel core laminate
- Mfg.
- GM Performance
- Product Notes
- Round bore; May not fit some cyl. head valve pockets; Fits Gen IV car, trk, HP block; Does not fit Gen V, VI block; 2 coolant holes per end; 3 lower coolant holes; Minimal brinelling of aluminum heads
- Thickness
- 0.051
- Title
- Fel-Pro - PERFORMANCE CYLINDER HEAD GASKET
Fitment status
This product is universal and will fit your application.
Application summary
GMP Perf. V8, Pro Stock 500; Steel wire

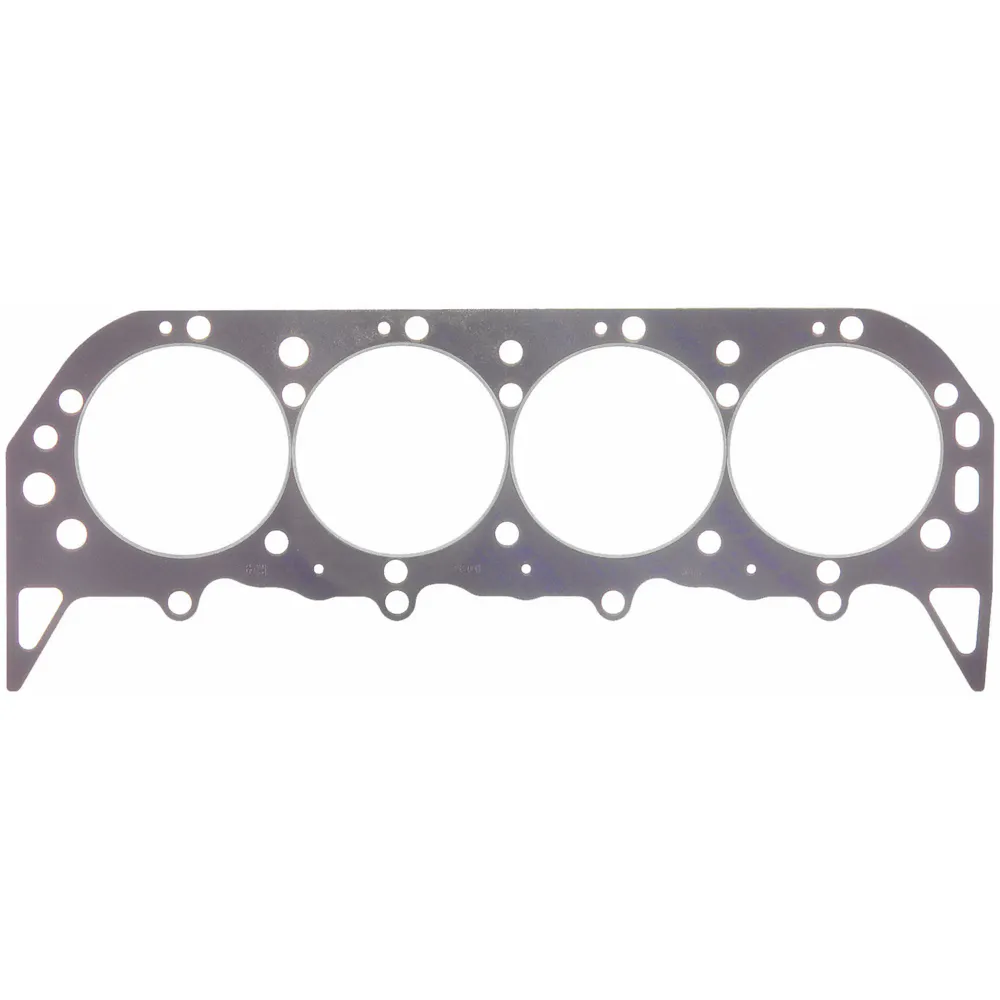

FEL-PRO 1093
