FEL-PRO / 1004
Part #: 1004
UPC: 084113010040
Loading...
Notify me when this item is in stock.

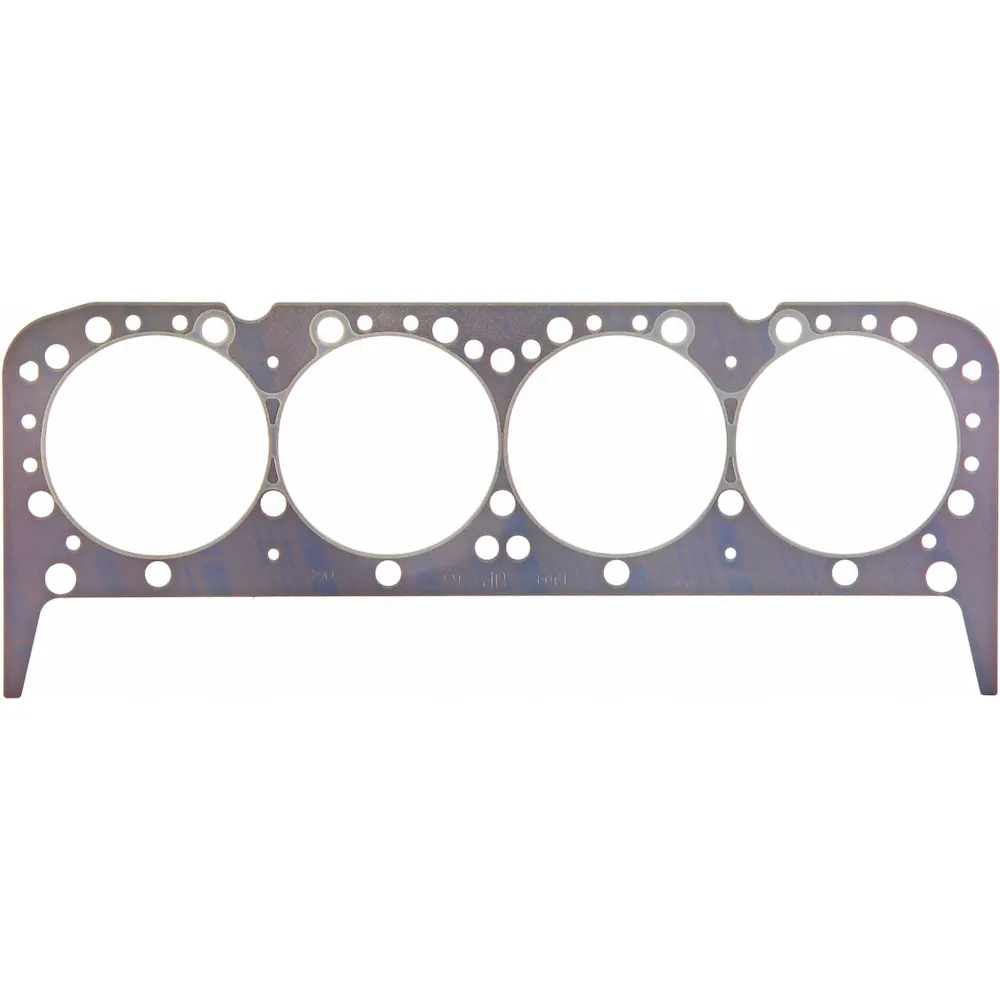

Description: FEL-PRO 1004 Steel core laminate Engine Cylinder Head Gasket
Description:
Description
Fel-Pro(R) gaskets are specifically designed for the repair environment to deliver a reliable seal on even the most troublesome applications. Designed for imperfect sealing surfaces and manufactured with proprietary materials, you can count on Fel-Pro for innovative sealing solutions for the real-world repair environment.
Features & benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
- Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber.
- Raises combustion sealing force to roughly three times that of standard head gaskets.
- Steel wire rings for the greatest combustion seal strength.
- Not intended for use in emission controlled vehicles.
Specifications
- GTIN
- 00084113010040
- Weight
- 0.6 lb
- Height
- 0.1 in
- Length
- 28.4 in
- Width
- 8.7 in
- Life cycle
- Available to Order
- Alt. part number
- 1004
- AAM brand code
- FEL
- Warehouse brand code
- FEL
- AAIA brand code
- BCWV
Attributes
- Alternate Part Number
- 1004
- Application Notes
- Cast iron or aluminum heads
- Bore Size (in.)
- 4.190
- California Proposition 65
- No
- Combustion Chamber Volume (cc)
- 9.200
- Combustion Seal Design
- Pre-flattened steel wire
- Cylinder Bore Diameter
- 4.190
- Engine Displacement
- 262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race
- Engine Family
- Chevrolet V8 Small Block
- Gasket Sealant Included
- No
- Grade Type
- Performance
- Material
- Steel core laminate
- Mfg.
- GM Performance
- Product Notes
- Can be used on 400 race Engs.; Can be used on aluminum blocks w/liners; Minimal brinelling of aluminum heads
- Thickness
- 0.041
- Title
- Fel-Pro - PERFORMANCE CYLINDER HEAD GASKET
Fitment status
This product is universal and will fit your application.
Application summary
GMP Perf. V8, 265 (4.3L), 283 (4.6L), 302 (4.9L), 307 (5.0L), 327 (5.3L), 350 (5.7L), 400 (6.6L); Steel wire
FEL-PRO 1004
