Factor 55 · 00225-01
Part #: 00225-01
UPC: 012748095163
Log in for inventory
Notify me when this item is in stock.

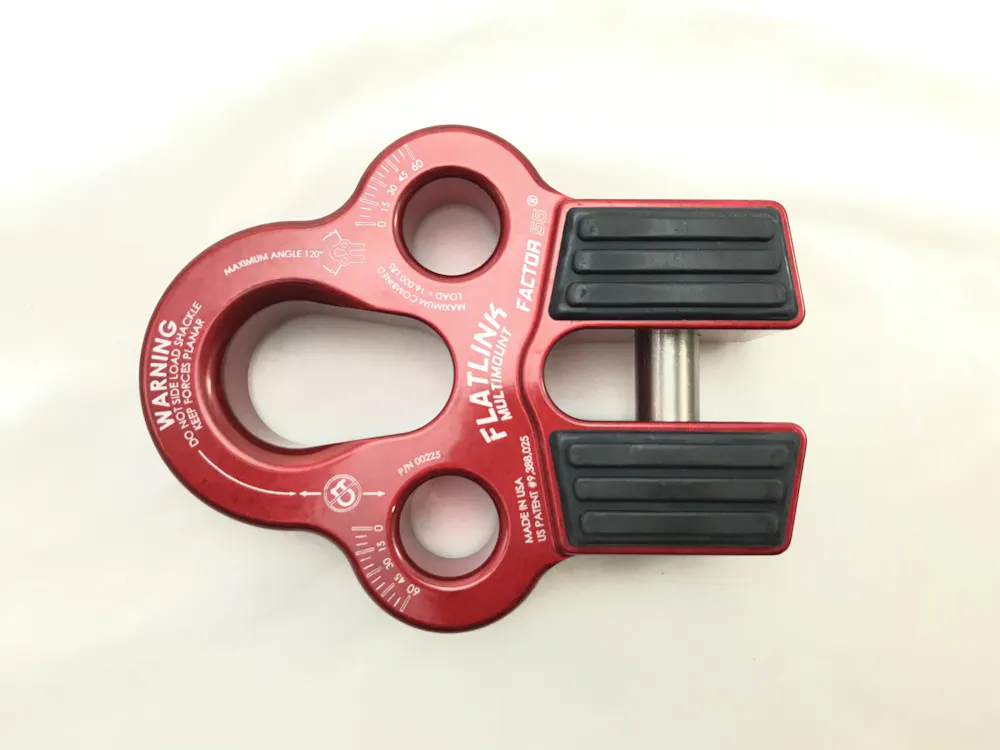

Description: FLATLINK MULTIMOUNT WINCH SHACKLE MOUNT -- RED; The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques.
Description:
Description
FlatLink MultiMount is designed for difficult vehicle recovery scenarios with two additional shackle pin mounting holes that provide secure shackle attachment points for multiple winch pull directions; the center hole provides a secure shackle mount point for either end of a bow shackle or soft-shackle. This arrangement eliminates any shackle side loading forces at the MultiMount interface (Shackles are free to rotate and align to the load directions). Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging. Like the rest of the FlatLink product line, the MultiMount may be folded flat against fairlead surfaces when stowed, resulting in minimal impact to vehicle approach angles. Engineered, tested, and made in the USA.
Features & benefits
- When folded flat ? less than 1.75 inches of thickness
- Fits steel cables and synthetic winch ropes to 3/8 inch diameters
- EPDM Rubber Guard protects alloy fairleads and cushions line stowage
- Precision machined from 6000 series aluminum
- Max load rating : 16,000 pounds
- Engineered, tested, and made in USA ? Patent pending.
Information
Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging
Specifications
- GTIN
- 00012748095163
- Weight
- 2.13 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 7 in
- Life cycle
- Available to Order
- AAM brand code
- F55
- Warehouse brand code
- FAC
- AAIA brand code
- GGBW
Attributes
- Add-on
- 00064-01
- CA Proposition 185
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- RED
- Finish
- Powdercoat
- Material
- 6061 Aluminum
- Title
- FLATLINK MULTIMOUNT WINCH SHACKLE MOUNT -- RED
- Tubing Diameter
- 00064-01
- WARNING CA Proposition 185
- Yes
Fitment status
This product is universal and will fit your application.
