Factor 55 · 00090-06
Part #: 00090-06
UPC: 012748094470
Log in for inventory
Notify me when this item is in stock.
Description: FLATLINK XXL WINCH SHACKLE MOUNT -- GRAY; The world?s first foldable winch shackle mount with self centering load spool. Compatible with wire rope diameters of up to 3/4" and synthetic rope tube thimbles up to 5/8" in diameter.
Description:
Description

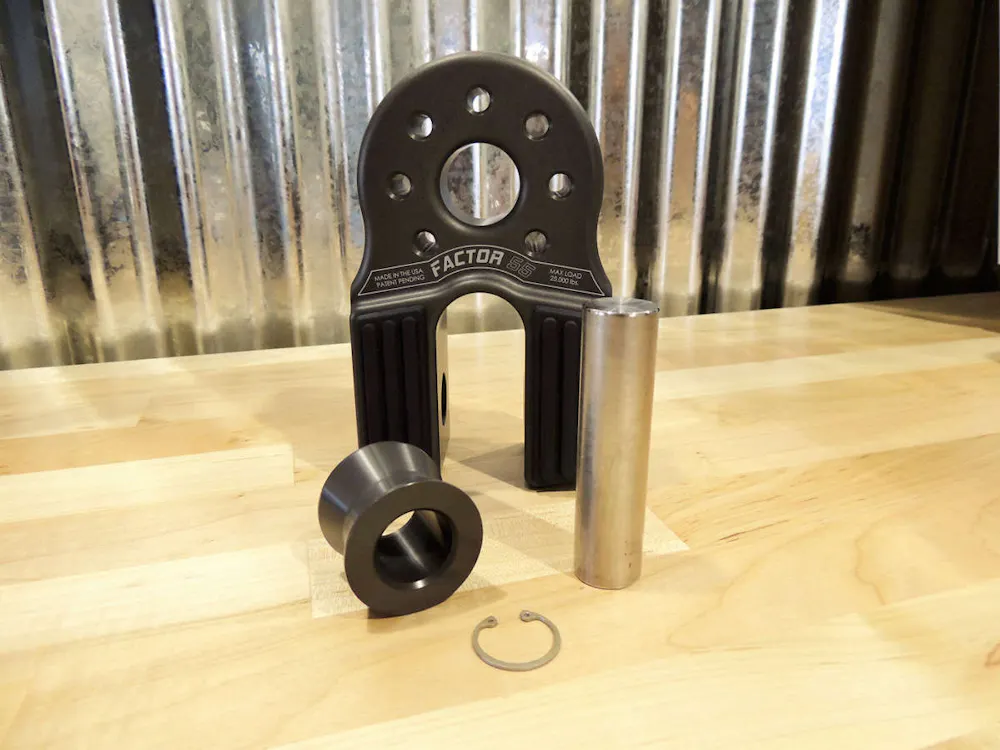

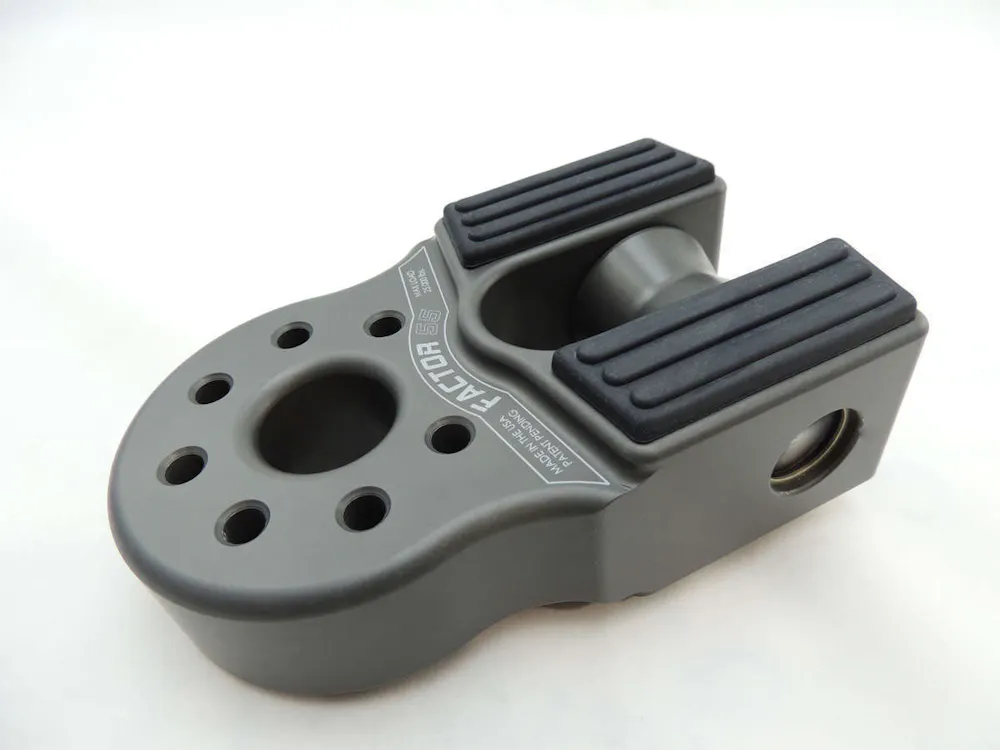

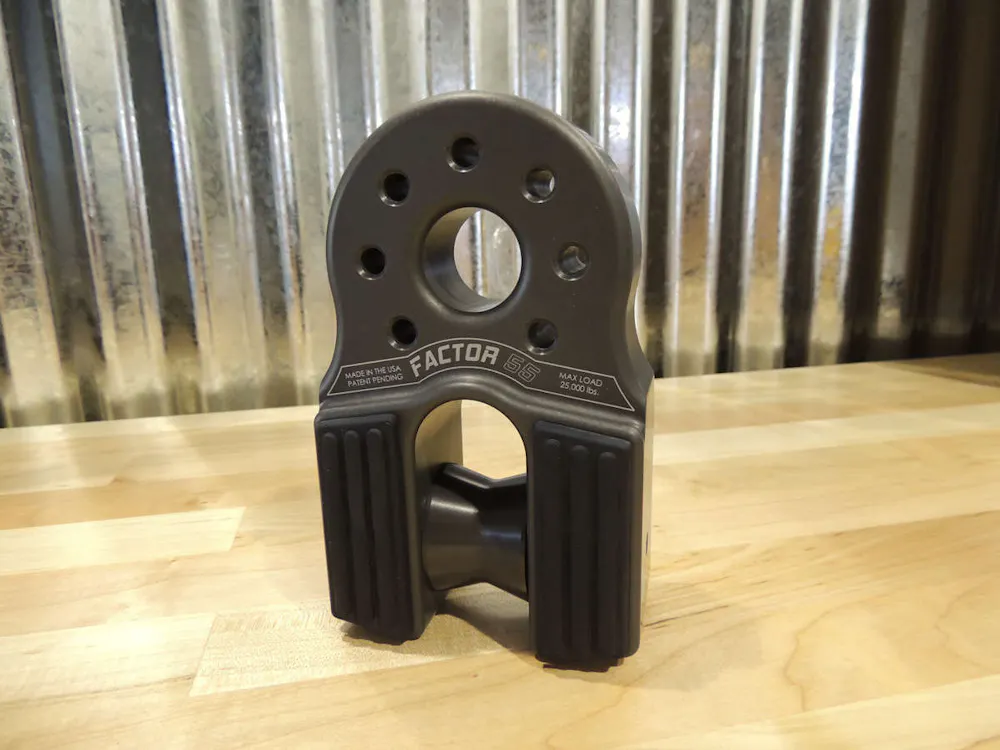

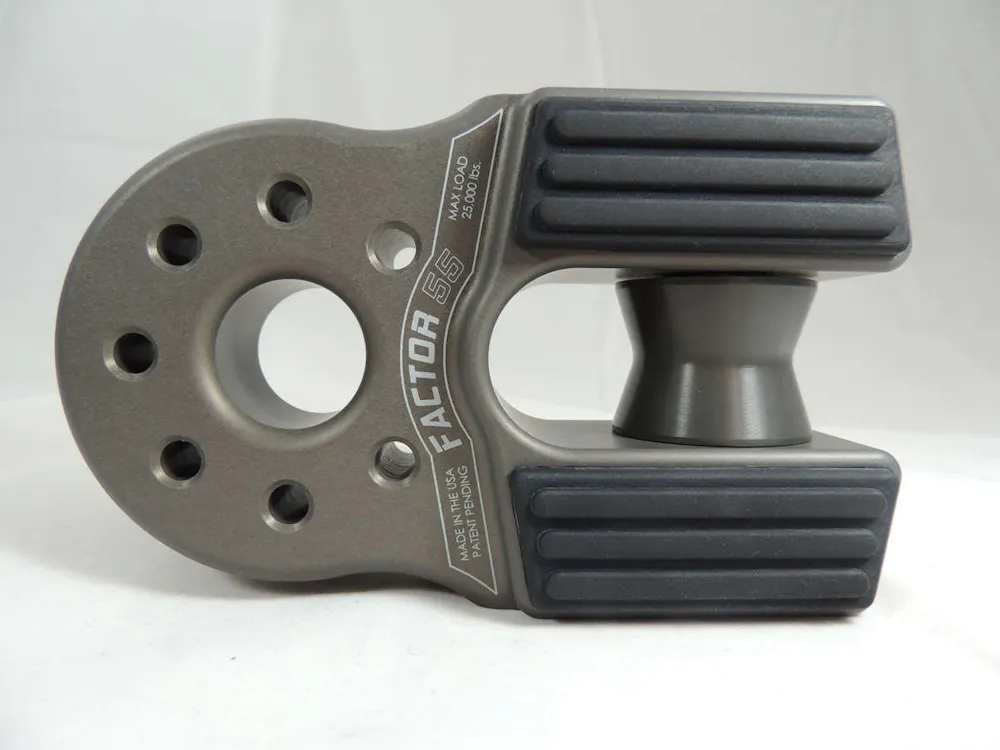

The Flatlink XXL, the world?s first foldable winch shackle mount with self-centering load spool. Compatible with wire rope diameters of up to 3/4" and synthetic rope tube thimbles up to 5/8" in diameter. Fits shackle pin diameters of 1 1/8". 7/8" diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs. Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin or soft shackles do not allow strap loops to escape under slack conditions. Stows neatly against either roller or Hawse type fairleads. The EPDM Rubber Guards protect alloy fairleads and are securely attached with 4 barbed tips. MADE IN THE USA, the FlatLink XXL is constructed of 6000 series billet aluminum and features a Mil-Spec Hard Anodized Gunmetal Gray finish.
Features & benefits
- Max Rated Load: 26,000 pounds
- Designed for both steel cable and synthetic winch rope eyes
- Equipped with a shear pin load centering spool for wire rope applications
- Lightweight ? Precision CNC machined 6000 series Military Grade Aluminum
- Engineered, Tested, and Made in USA ? Patent Pending
Information
Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
Specifications
- GTIN
- 00012748094470
- Weight
- 3.44 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 7 in
- Life cycle
- Available to Order
- AAM brand code
- F55
- Warehouse brand code
- FAC
- AAIA brand code
- GGBW
Attributes
- Add-on
- 00384
- CA Proposition 152
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- GRAY
- Finish
- Hard Anodized
- Material
- 6061 Aluminum
- Title
- FLATLINK XXL WINCH SHACKLE MOUNT -- GRAY
- Tubing Diameter
- 00384
- WARNING CA Proposition 152
- Yes
Fitment status
This product is universal and will fit your application.
