Fabtech / K3039

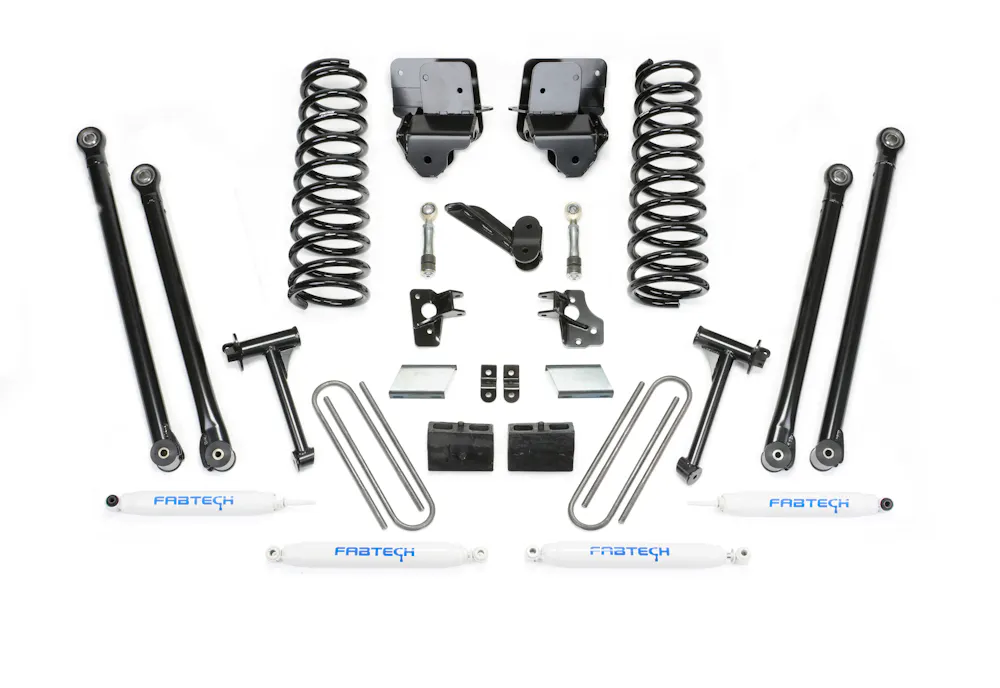

This Fabtech system converts the factory front control links to a long arm configuration for increased travel and ride quality. The extended links are twice the length of the factory units and are constructed of 2 OD tubing with a 1 uniball on one end with urethane bushings on the other. This allows for maximum articulation for offroad use with the ability to absorb highway road noises for a quiet ride. The links attach to the factory axle brackets while new 1/4 thick steel brackets locate the links to the frame. The extended links allow for more offroad articulation of the front axle while smoothing out the highway ride by eliminating the factory short links. Rear lift is accomplished via a block and u-bolt configuration.

Superior Link To Arm Subframe Geometry; Provides Zero Caster/Pinion Angle Change; Geometry Preset With Fixed Length Link Arms
