Fabtech · K3035
Part #: K3035
UPC: 674866029644
Loading...
Notify me when this item is in stock.
Description: 6in. LONGARM KIT W/COILS/PERF SHKS 09-11 DODGE 2500/3500 4WD W/GAS MTR/AUTO; Long Arm Lift System; w/Performance Shocks; 6 in. Lift;
Description:

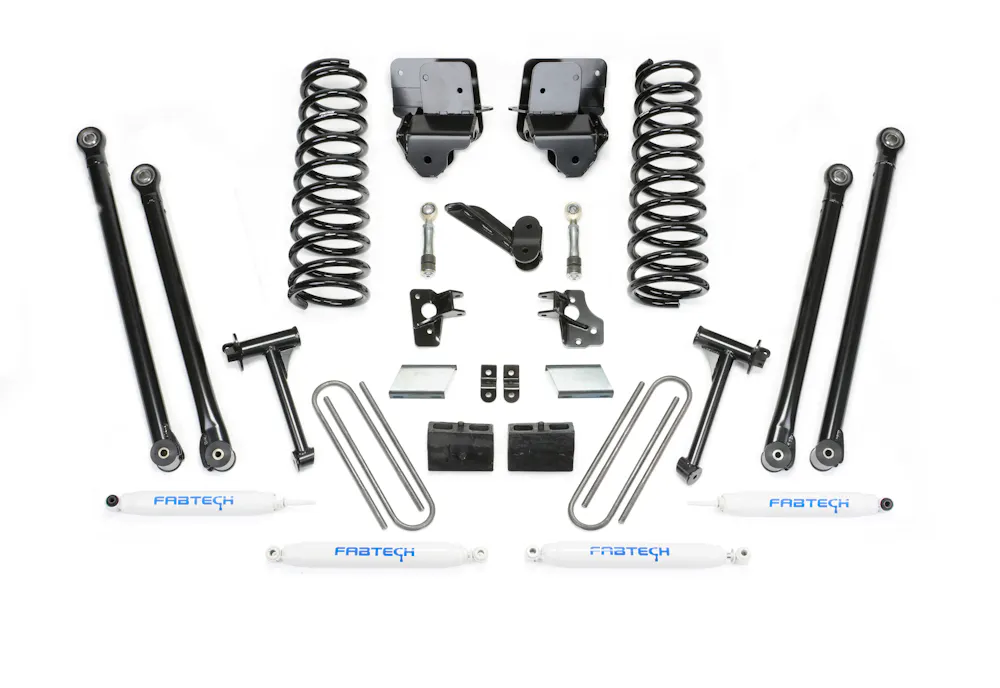

This is a virtual part number representing a kit with the following components: FTS23014BK, FTS23033, FTS23034, FTS7189, FTS7266, FTS93007
Description
This Fabtech system converts the factory front control links to a long arm configuration for increased travel and ride quality. The extended links are twice the length of the factory units and are constructed of 2 OD tubing with a 1 uniball on one end with urethane bushings on the other. This allows for maximum articulation for offroad use with the ability to absorb highway road noises for a quiet ride. The links attach to the factory axle brackets while new 1/4 thick steel brackets locate the links to the frame. The extended links allow for more offroad articulation of the front axle while smoothing out the highway ride by eliminating the factory short links. Rear lift is accomplished via a block and u-bolt configuration.
Features & benefits
- Superior Link To Arm Subframe Geometry | Provides Zero Caster/Pinion Angle Change | Geometry Preset With Fixed Length Link Arms
- Provides Zero Caster/Pinion Angle Change
- Geometry Preset With Fixed Length Link Arms
Information
Superior Link To Arm Subframe Geometry; Provides Zero Caster/Pinion Angle Change; Geometry Preset With Fixed Length Link Arms
Application summary
| Year | Make / model |
|---|---|
| 2009-2010 | Dodge Ram 2500 |
| 2009 | Dodge Ram 3500 |
| 2011-2013 | Ram 2500 |
| 2011-2013 | Ram 3500 |
Component: Fabtech FTS23014BK
Specifications
- GTIN
- 00674866029644
- Weight
- 276.8 lb
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- FAB
- Warehouse brand code
- FAB
- AAIA brand code
- BKBN
Attributes
- AAM Standard Pack
- 1
- Lift/Drop Height
- 6 in.
- Lift/Drop Height (in.)
- 6
- Title
- Fabtech 6" LONGARM KIT W/COILS & PERF SHKS 09-13 DODGE 2500/3500 4WD W/GAS & AUTO
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2010 Dodge Ram 2500; 2009 Dodge Ram 3500; 2011-2013 Ram 2500; 2011-2013 Ram 3500
