Fabtech / K2243DL
Part #: K2243DL
UPC: 674866104549
Loading...
Notify me when this item is in stock.
Description: Radius Arm Lift System; 6 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers And Rear Dirt Logic 2.25 Shocks;
Description:

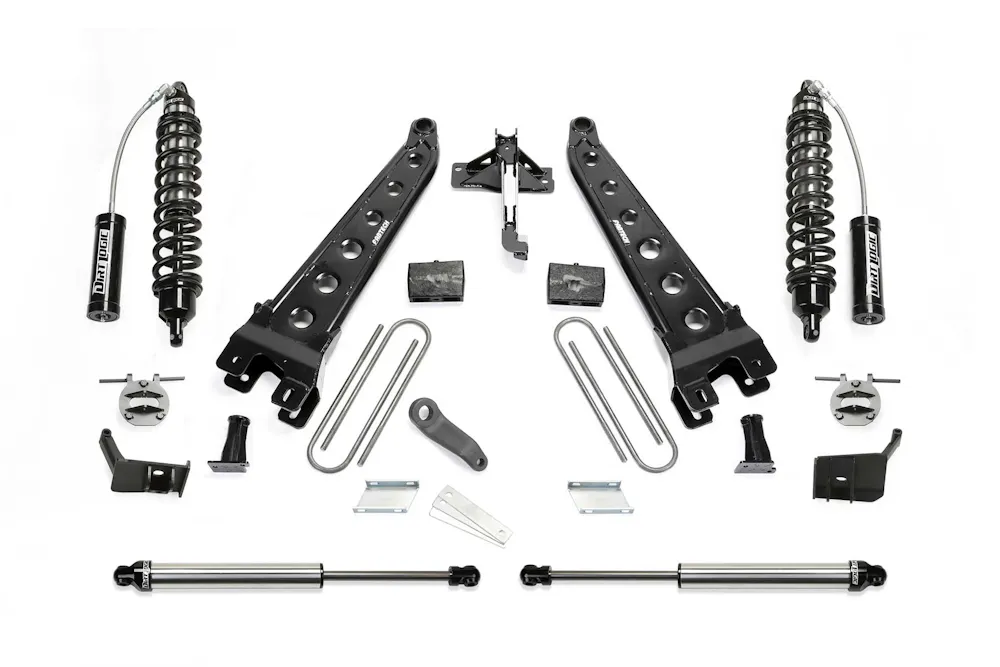

This is a virtual part number representing a kit with the following components: FTS22219, FTS22220, FTS22248, FTS810052
Description
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Features & benefits
- Unsurpassed Strength And Performance | Patent Pending Radius Arms | Fully Tubular Structure | Dimple Die Side Plates | Adjustable Alignment Cam Allows Caster Adjustment
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
- Adjustable Alignment Cam Allows Caster Adjustment
Application summary
| Year | Make / model |
|---|---|
| 2017-2023 | Ford F-250 Super Duty |
| 2017-2023 | Ford F-350 Super Duty |
Specifications
- GTIN
- 00674866104549
- Weight
- 250 lb
- Height
- 15.13 in
- Length
- 45.5 in
- Width
- 37.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- FAB
- Warehouse brand code
- FAB
- AAIA brand code
- BKBN
Attributes
- AAM Standard Pack
- 1
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Lift/Drop Height
- 6 in.
- Lift/Drop Height (in.)
- 6
- Title
- Fabtech 6" RAD ARM SYS W/ 2.5 & 2.25 17-21 FORD F250/F350 4WD DIESEL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2017-2023 Ford F-250 Super Duty; 2017-2023 Ford F-350 Super Duty
