Fabtech · K2197DL
Part #: K2197DL
UPC: 674866099340
Loading...
Notify me when this item is in stock.

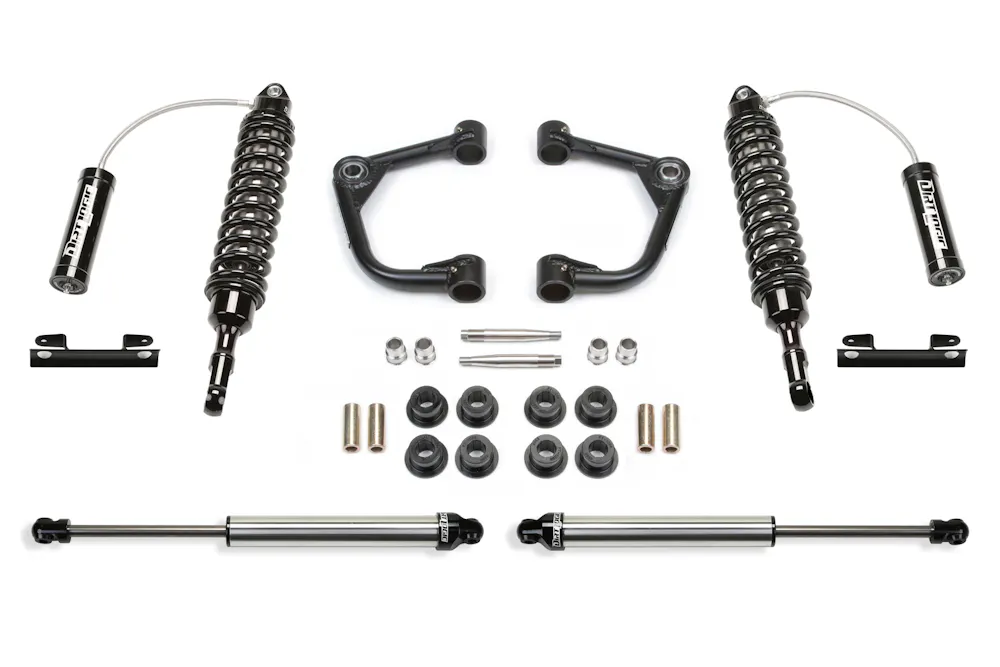

Description: 2" Upper Control Arm System with Dirt Logic Shocks; Uniball Control Arm Lift System; 2 in. Lift; Uniball Upper Control Arms; Incl. Front Dirt Logic 2.5 Resi Coilover; Rear Dirt Logic Shock; All Required Hardware;
Description:
This is a virtual part number representing a kit with the following components: FTS22159, FTS22191, FTS810322
Description
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
Features & benefits
- Upper Control Arm Kit | Custom Engineered For High Quality Ride | Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
- Regulates Wheel Motion In Relation To Body
Information
TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING
Application summary
| Year | Make / model |
|---|---|
| 2009-2013 | Ford F-150 |
Specifications
- GTIN
- 00674866099340
- Weight
- 102.8 lb
- Height
- 15.5 in
- Length
- 35.75 in
- Width
- 23.75 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- FAB
- Warehouse brand code
- FAB
- AAIA brand code
- BKBN
Attributes
- AAM Standard Pack
- 1
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Lift/Drop Height
- 2 in.
- Lift/Drop Height (in.)
- 2
- Title
- Fabtech 2" UNIBALL UCA KIT W/DLSS 2.5 C/O RESI & RR DLSS 2009-13 FORD F150 4WD
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2013 Ford F-150
Rebates & offers
Fabtech K2197DL
