Fabtech / K2011
Part #: K2011
UPC: 674866023949
Loading...
Notify me when this item is in stock.
Description: 6" Radius Arm System with Performance Shocks; Radius Arm Lift System; w/Performance Shocks; 6 in. Lift; w/o Factory Overload;
Description:
This is a virtual part number representing a kit with the following components: FTS22024BK, FTS22026BK, FTS22033, FTS7188, FTS7266
Description

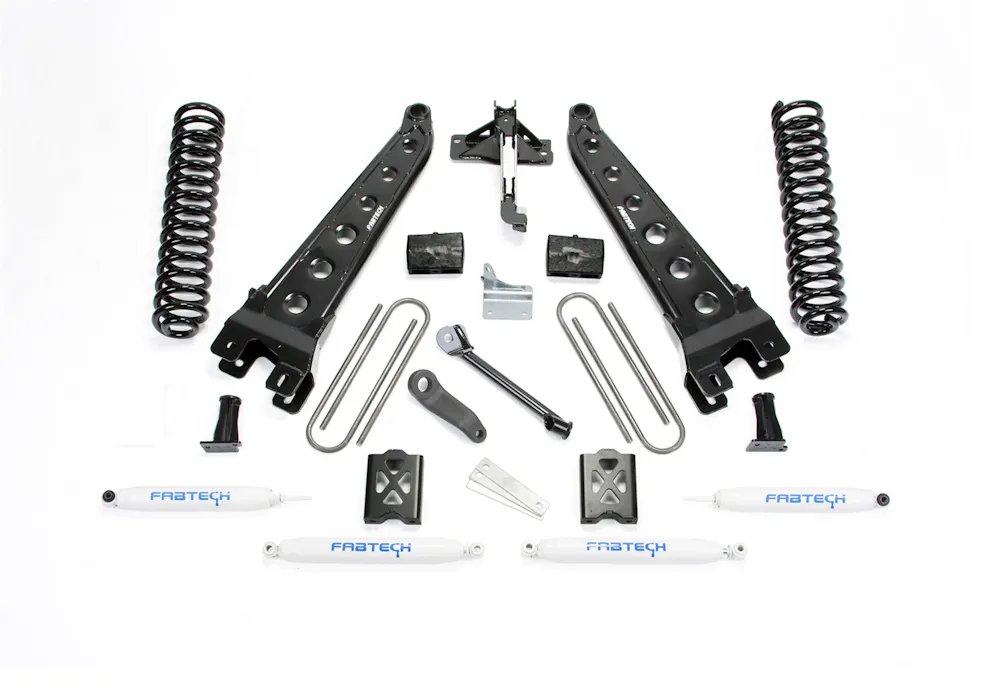

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
Features & benefits
- Unsurpassed Strength And Performance | Patent Pending Radius Arms | Fully Tubular Structure | Dimple Die Side Plates | Adjustable Alignment Cam Allows Caster Adjustment
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
- Adjustable Alignment Cam Allows Caster Adjustment
Information
TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING
Application summary
| Year | Make / model |
|---|---|
| 2005-2007 | Ford F-250 Super Duty |
| 2005-2007 | Ford F-350 Super Duty |
Component: Fabtech FTS22024BK
Component: Fabtech FTS22026BK
Specifications
- GTIN
- 00674866023949
- Weight
- 257.9 lb
- Height
- 14.5 in
- Length
- 45.5 in
- Width
- 39.52 in
- EO
- Legal US
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- FAB
- Warehouse brand code
- FAB
- AAIA brand code
- BKBN
Attributes
- AAM Standard Pack
- 1
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Lift/Drop Height
- 6 in.
- Lift/Drop Height (in.)
- 6
- Title
- Fabtech 6" RAD ARM SYS W/COILS & PERF SHKS 05-07 FORD F250 4WD W/O FACTORY OVERLOAD
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2007 Ford F-250 Super Duty; 2005-2007 Ford F-350 Super Duty
