Fabtech · K1067

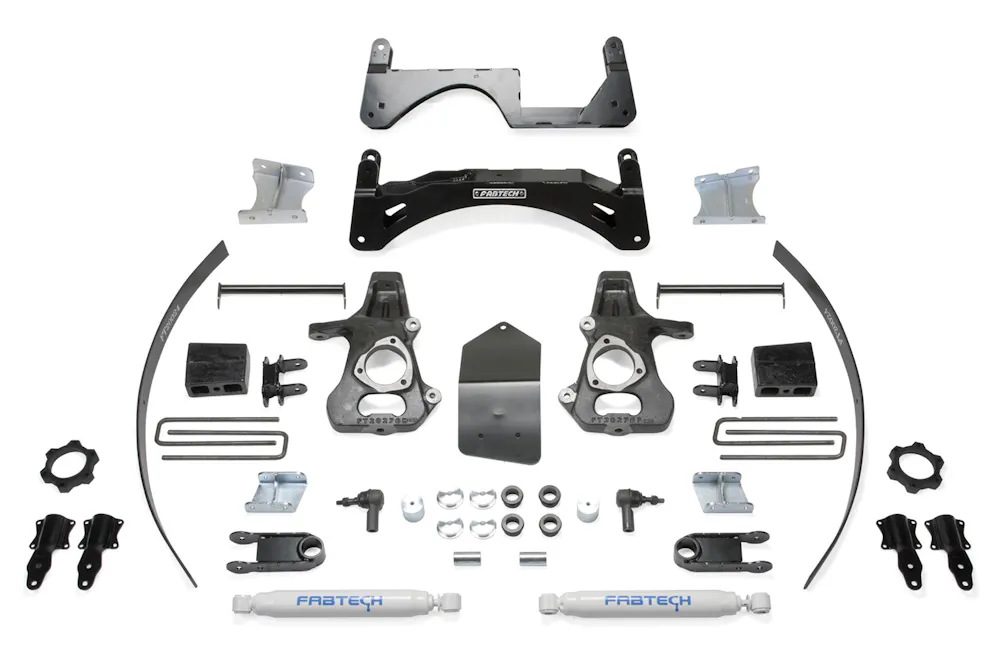

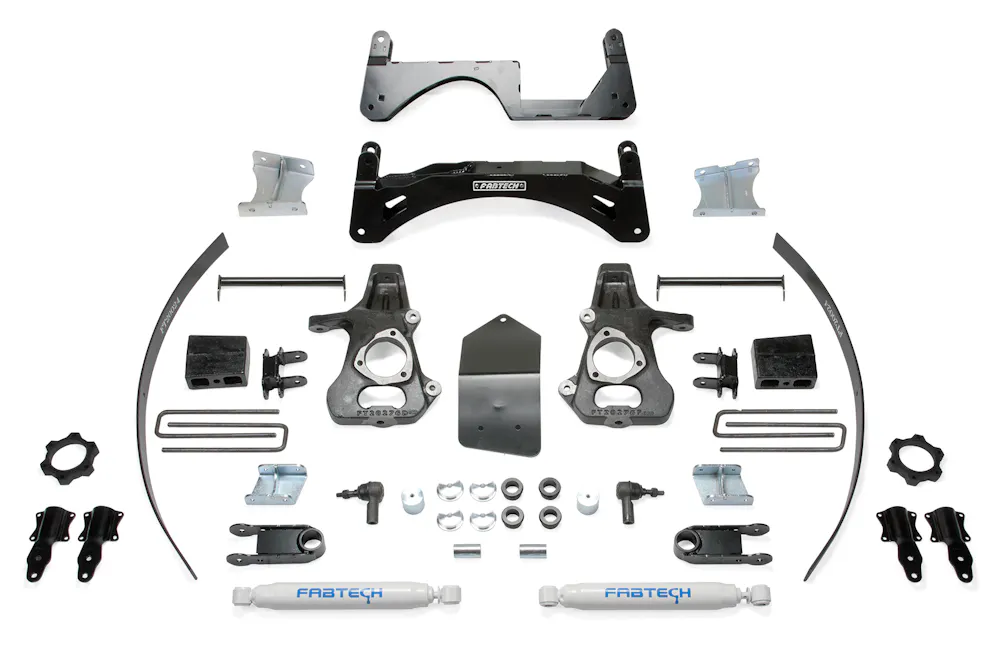

Our 6 Basic System for the factory Steel suspension has been designed utilizing our industry leading crossmember and spindle technology. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. Our 1/4 thick steel lower control arm crossmembers have been formed to fit to the bottom of the 2014 frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Steel component version keeping track width near stock and working properly with the Stablitrac? safety functions. The front differential is relocated with heavy duty brackets while a tightly formed 1/4 thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5 tall blocks and u bolts. The stock rear shocks are replaced with Performance shocks for increase damping.

TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.; 136. SOME VEHICLES MAY EXPERIENCE FRONT DRIVELINE VIBRATION ORDER FTS21192 CV DRIVESHAFT KIT.
