Fabtech · K1027

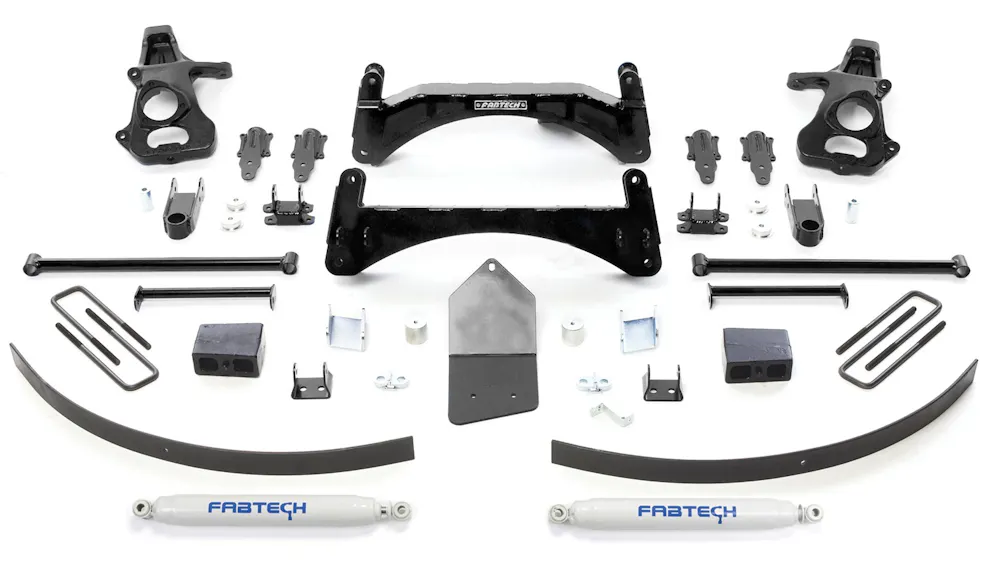

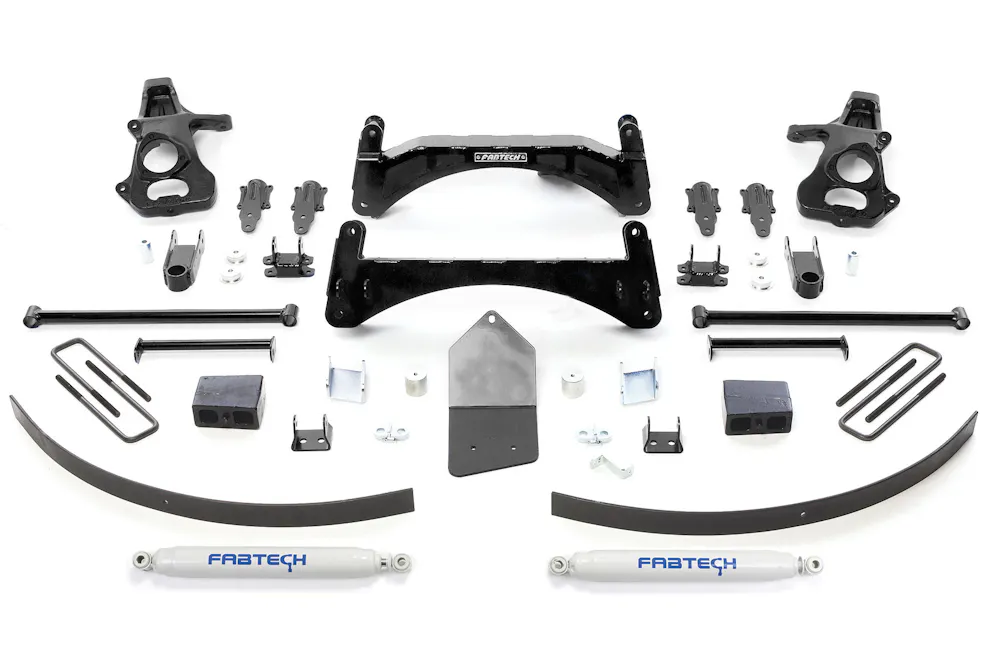

Our 6 Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35 tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4 thick steel skid plate. Rear suspension lift is accomplished via a block and add a leaf system.With two systems available, the Basic system features all the above componentry with a front coilover spacer system utilizing the factory coilover assembly for a stock like ride. The Performance system also offers the same componentry but with an upgrade to the Dirt Logic 2.5 or Dirt Logic 4.0 Adjustable Coilover shock in place of the factory front coilover assembly. Rear shock options include Performance shocks or Dirt Logic 2.25 shocks. Both systems have been properly designed to work with the factory Stabilitrak? safety functions without reprogramming the vehicles computer.

TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.
