EngineQuest · EQ-CH350AA
Part #: EQ-CH350AA
UPC: 810037940855
Log in for inventory
Notify me when this item is in stock.

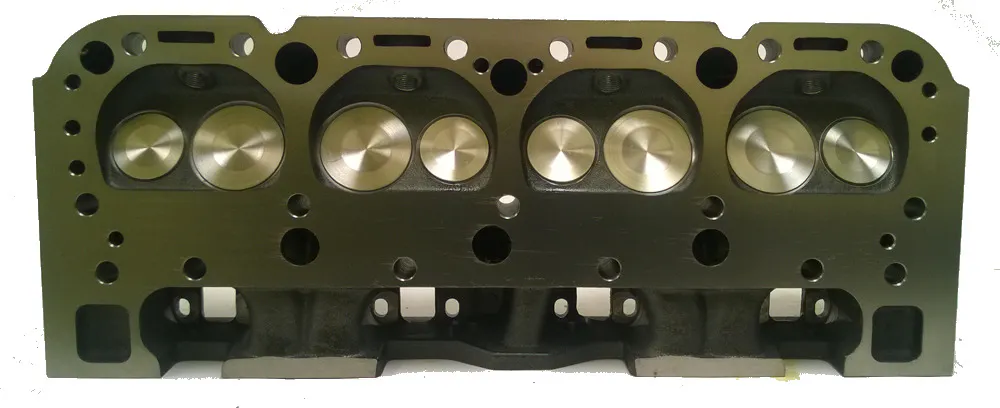

Description: Chevy 350 Cylinder Head - Assembled; EngineQuest Cylinder heads are manufactured to meet or exceed the OEM specifications. All assembled Cylinder heads are assembled in the USA.
Description:
Description
EngineQuest Cylinder heads are manufactured to meet or exceed the OEM specifications. All assembled Cylinder heads are assembled in the USA.
Features & benefits
- Highest grade of material used in manufacturing
- Thicker decks for greater strength
- Superior port finish for increased flow
- Improved flow design to resist cracking
Application summary
| Year | Make / model |
|---|---|
| 1969-1972 | Avanti II |
| 1977-1980 | Avanti II |
| 1977-1979 | Buick Century |
| 1977 | Buick Regal |
| 1977-1979 | Buick Skylark |
| 1969-1974 | Checker Aerobus |
| 1969-1970 | Checker Deluxe |
| 1969-1979 | Checker Marathon |
| 1969-1974 | Checker Taxicab |
| 1969-1975 | Chevrolet Bel Air |
| 1969-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1980 | Chevrolet C10 |
| 1982-1986 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1969-1986 | Chevrolet C10 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1969-1974 | Chevrolet C20 Pickup |
| 1969-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1969-1974 | Chevrolet C30 Pickup |
| 1969-1979 | Chevrolet C50 |
| 1969-1979 | Chevrolet C60 |
| 1979 | Chevrolet C70 |
| 1986 | Chevrolet C70 |
| 1969-1981 | Chevrolet Camaro |
| 1969-1980 | Chevrolet Caprice |
| 1985-1986 | Chevrolet Caprice |
| 1969-1973 | Chevrolet Chevelle |
| 1969-1981 | Chevrolet Corvette |
| 1985-1986 | Chevrolet Corvette |
| 1969-1979 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1975-1986 | Chevrolet G10 |
| 1970-1974 | Chevrolet G10 Van |
| 1975-1986 | Chevrolet G20 |
| 1970-1974 | Chevrolet G20 Van |
| 1975-1986 | Chevrolet G30 |
| 1970-1974 | Chevrolet G30 Van |
| 1969-1985 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1969-1974 | Chevrolet K10 Pickup |
| 1969-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1969-1974 | Chevrolet K20 Pickup |
| 1969-1986 | Chevrolet K20 Suburban |
| 1977-1986 | Chevrolet K30 |
| 1969-1974 | Chevrolet K30 Pickup |
| 1975-1986 | Chevrolet K5 Blazer |
| 1969-1972 | Chevrolet Kingswood |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1970-1977 | Chevrolet Monte Carlo |
| 1969-1979 | Chevrolet Nova |
| 1975 | Chevrolet P10 |
| 1977-1978 | Chevrolet P10 |
| 1973 | Chevrolet P10 Van |
| 1975-1986 | Chevrolet P20 |
| 1970-1974 | Chevrolet P20 Van |
| 1975-1986 | Chevrolet P30 |
| 1970-1974 | Chevrolet P30 Van |
| 1983-1986 | Chevrolet P60 |
| 1969-1972 | Chevrolet Townsman |
| 1970-1971 | Excalibur Phaeton |
| 1986 | Excalibur Phaeton |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1969-1974 | GMC C15/C1500 Pickup |
| 1969-1974 | GMC C15/C1500 Suburban |
| 1979-1986 | GMC C1500 |
| 1979-1986 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
Specifications
- GTIN
- 00810037940855
- Weight
- 54 lb
- Height
- 23.5 in
- Length
- 5 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- ENQ
- Warehouse brand code
- GBXC
- AAIA brand code
- GBXC
Attributes
- Accessory Bolt Holes Drilled
- Yes
- CNC-Machined Combustion Chamber
- No
- CNC-Machined Exhaust Runner
- No
- CNC-Machined Intake Runner
- No
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Combustion Chamber Style
- D SHAPE
- Combustion Chamber Volume (cc)
- 76CC - +/- 2CC
- Cylinder Head Finish
- Natural
- Cylinder Head Material
- Cast Iron
- Cylinder Head Style
- Assembled
- Damper Spring Included
- No
- Exhaust Port Location
- Standard
- Exhaust Runner Volume (cc)
- 60cc - +/- 2cc
- Exhaust Valve Diameter
- 1.5
- Exhaust Valves Included
- Yes
- Flow: Exhuast
- 144.5 CFM @.500
- Flow: Intake
- 225.8 CFM @.500
- Guideplates Included
- No
- Heat Crossover
- Yes
- Intake Port Location
- Standard
- Intake Runner Volume (cc)
- 178cc - +/- 2cc
- Intake Valve Angle
- Stock
- Intake Valve Diameter
- 1.94
- Intake Valves Included
- Yes
- Lock Style
- Steel
- Locks Included
- Yes
- Machined for O-Ring
- No
- Number of Springs Per Valve
- 1
- Oiling Style
- Pushrod
- Retainer Material
- Steel
- Retainers Included
- Yes
- Rocker Arm Nuts Included
- No
- Rocker Arm Studs Included
- No
- Rocker Arms Included
- No
- Spark Plug Style
- Straight
- Standard Pack
- Each
- Steam Holes Drilled
- No
- Title
- EngineQuest Chevy 350 Cylinder Head - Assembled
- Valve Cover Mounting Style
- PERIMETER
- Valve Guide Material
- Iron
- Valve Guides Included
- Yes
- Valve Seat Machine Style
- 3 Angle Cut
- Valve Seat Material
- Steel
- Valve Seats Machined
- Yes
- Valve Springs Included
- Yes
- Valve Stem Seal Style
- Metal Clad
- Valve Stem Seals Included
- Yes
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1972 Avanti II; 1977-1980 Avanti II; 1977-1979 Buick Century; 1977 Buick Regal; 1977-1979 Buick Skylark; 1969-1974 Checker Aerobus; 1969-1970 Checker Deluxe; 1969-1979 Checker Marathon; 1969-1974 Checker Taxicab; 1969-1975 Chevrolet Bel Air; 1969-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1975-1980 Chevrolet C10; 1982-1986 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1969-1986 Chevrolet C10 Suburban; 1975-1986 Chevrolet C20; 1969-1974 Chevrolet C20 Pickup; 1969-1986 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1969-1974 Chevrolet C30 Pickup; 1969-1979 Chevrolet C50; 1969-1979 Chevrolet C60; 1979 Chevrolet C70; 1986 Chevrolet C70; 1969-1981 Chevrolet Camaro; 1969-1980 Chevrolet Caprice; 1985-1986 Chevrolet Caprice; 1969-1973 Chevrolet Chevelle; 1969-1981 Chevrolet Corvette; 1985-1986 Chevrolet Corvette; 1969-1979 Chevrolet El Camino; 1969-1970 Chevrolet Estate; 1975-1986 Chevrolet G10; 1970-1974 Chevrolet G10 Van; 1975-1986 Chevrolet G20; 1970-1974 Chevrolet G20 Van; 1975-1986 Chevrolet G30; 1970-1974 Chevrolet G30 Van; 1969-1985 Chevrolet Impala; 1975-1986 Chevrolet K10; 1969-1974 Chevrolet K10 Pickup; 1969-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K20; 1969-1974 Chevrolet K20 Pickup; 1969-1986 Chevrolet K20 Suburban; 1977-1986 Chevrolet K30; 1969-1974 Chevrolet K30 Pickup; 1975-1986 Chevrolet K5 Blazer; 1969-1972 Chevrolet Kingswood; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1970-1977 Chevrolet Monte Carlo; 1969-1979 Chevrolet Nova; 1975 Chevrolet P10; 1977-1978 Chevrolet P10; 1973 Chevrolet P10 Van; 1975-1986 Chevrolet P20; 1970-1974 Chevrolet P20 Van; 1975-1986 Chevrolet P30; 1970-1974 Chevrolet P30 Van; 1983-1986 Chevrolet P60; 1969-1972 Chevrolet Townsman; 1970-1971 Excalibur Phaeton; 1986 Excalibur Phaeton; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1969-1974 GMC C15/C1500 Pickup; 1969-1974 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1979-1986 GMC C1500 Suburban; 1975-1978 GMC C25; ...
