Engine Pro / 17-6478-16
Part #: 17-6478-16
UPC: 846163106742
Loading...
Notify me when this item is in stock.

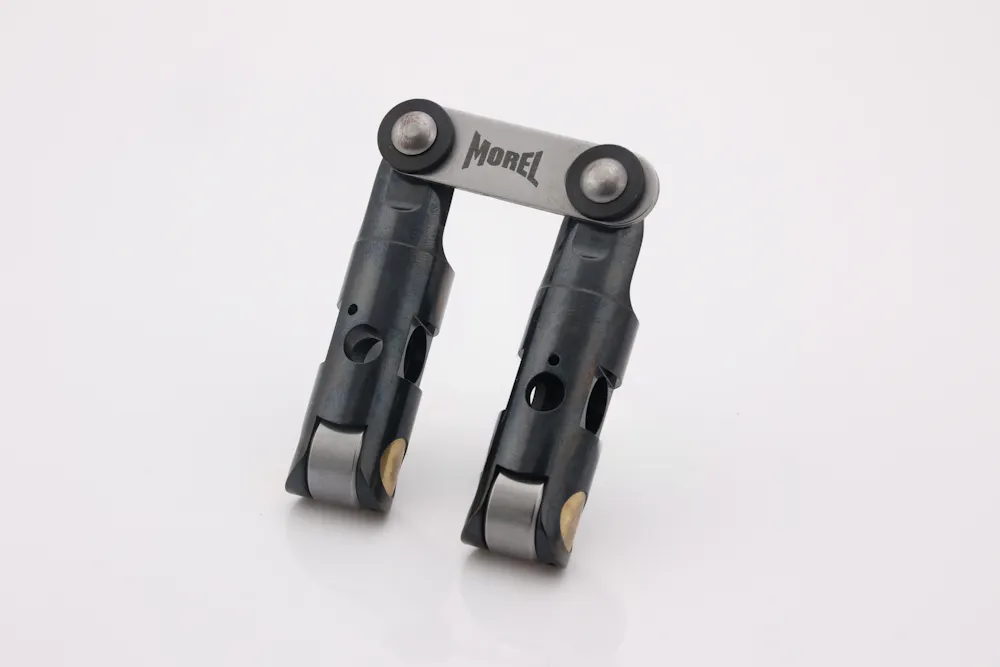

Description: Nitro Black Extreme Load Mechanical Tie-Bar Roller Lifters For Small Block Chevy Engines .180 Inch Left And Right Intakeake Offset Pushrod Seat With .842 Inch Body And .750 Inch Roller Wheel
Description:
Description
The Nitro Black Mechanical Lifters Are Made From A Billet Body With A Pinned Axle And Have 9000 + Rpm Capability. The Nitro Black Lifters Have An Axle Diameter Of .470 Inch With Full Time Pressurized Oiling. The Nitro Black Lifter Series Has Diamond-Like Coating (Dlc) For Less Friction And Wear Durability. These Lifters Have The Carrying Capacity Of A 1 Inch Lifter. This Series Is Recommended For All Aluminum Block Applications That Do Not Have Lifter Bore Bushings. These Lifters Have A .750 Inch Diameter Roller Wheel For .842 Inch Body Lifters And A .810 Inch Roller For .903 Inch Body Lifters And .850 Inch For .936 Inch Body Lifters. These Lifters Have A Special Break-In Lube Between The Axle And Roller Wheel And Should Not Be Washed With Solvent Prior To Installation. These Lifters Also Require A Break-In Period Of 25-30 Minutes Varying The Rpm From 1800-2200 Rpm. Recommended Spring Pressure 150-400 Lbs Seat Pressure 550-1000 Lbs Open Pressure
Features & benefits
- Billet Body With Pinned Axle And 9000 + RPM Capability
- Special Break-In Lube Between The Axle And Roller Wheel Should Not Be Washed With Solvent Prior To Installation
- These Lifters Have The Carrying Capacity Of A 1 Inch Diameter Lifter
- Diamond-Like Coating (DLC) For Less Friction, Wear And Durability
- Lifters Are Rebuildable
- Made In USA
- Recommended Spring Pressure 150-400 Lbs Seat Pressure And 550-1000 Lbs Open Pressure
- Requires A Break-In Period Of 25-30 Minutes Varying The RPM From 1800-2200 RPM
- Revolutionary Oil Wedge Design
- Special B624l Matrix Material Axle That Is .470 Inch Diameter With Full Time Pressurized Oiling
Information
Note: All Lifters With A Tie-Bar Are Designed To Be Installed In Either Retro-Fit Engines Or Engines Originally Equipped With Roller Lifters
Specifications
- GTIN
- 00846163106742
- Weight
- 6.5 lb
- Height
- 1.75 in
- Length
- 15.5 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- EPG
- Warehouse brand code
- FWFL
- AAIA brand code
- FWFL
Attributes
- RPM Capability
- 9000+
- Recommended Spring Open Pressure
- 550-1000
- Recommended Spring Seat Pressure
- 150-400
- Roller Diameter
- .750
Fitment status
This product is universal and will fit your application.
