Engine Pro · 17-5325-16
Part #: 17-5325-16
UPC: 846163075888
Log in for inventory
Notify me when this item is in stock.

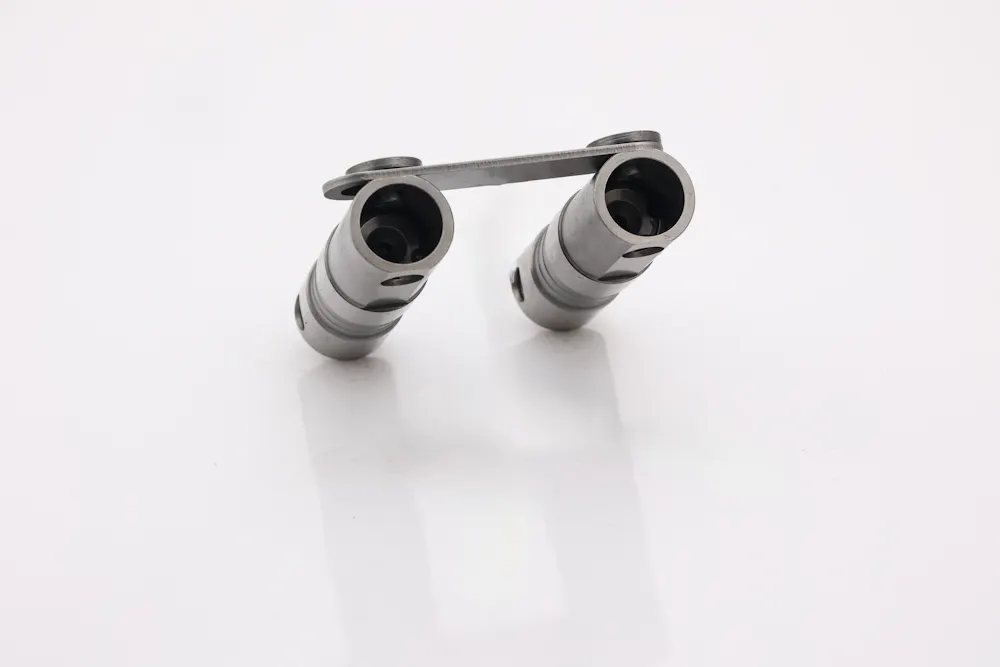

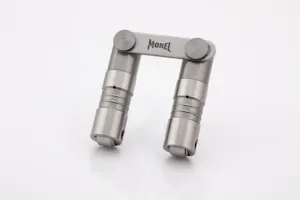

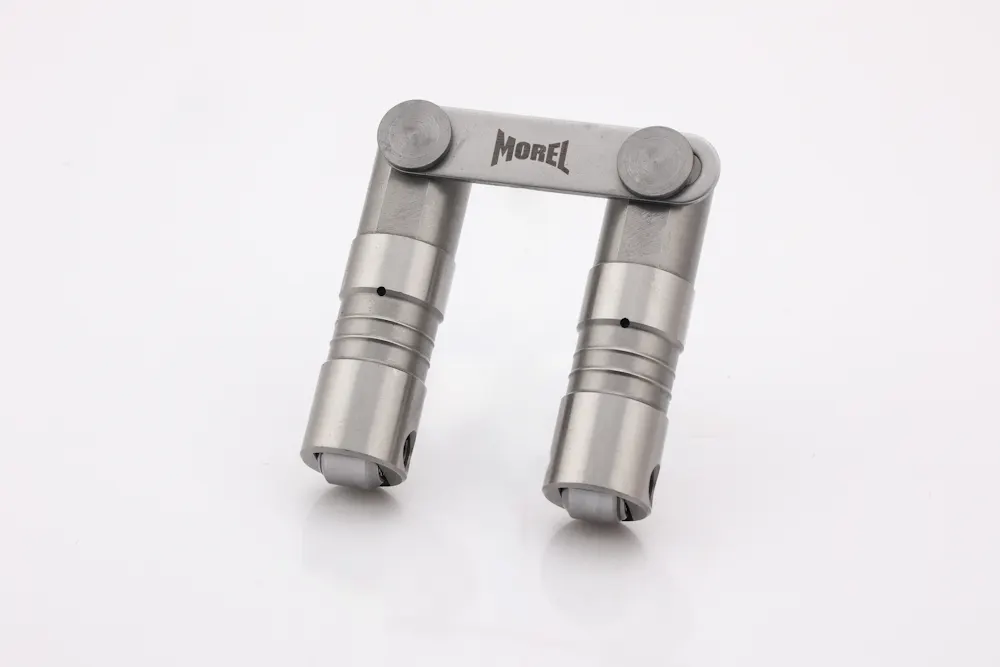

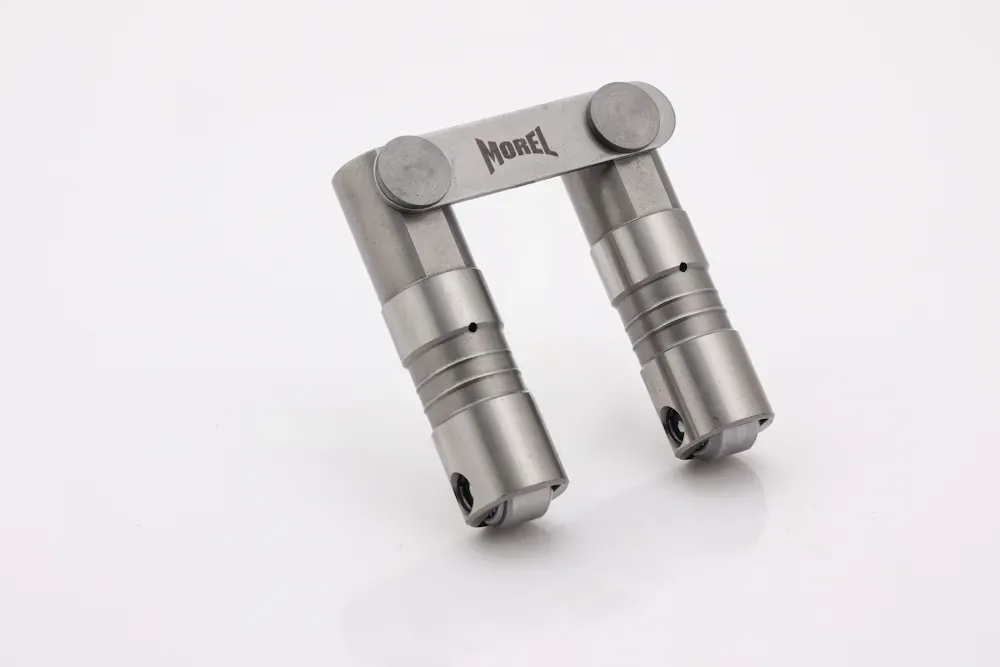

Description: Ford / Lincoln / Mercury Big Block Street Performance Hydraulic Roller Lifters; Ford / Lincoln / Mercury 332 CID / 352 CID / 360 CID / 361 CID / 390 CID / 391 CID / 406 CID / 410 CID / 427 CID / 428 CID Street Performance Tie-Bar Style Hydraulic Roller Lifters With .875 Inch Body And .700 Inch Roller Wheel
Description:
Description
Engine Pro's Street Performance Hydraulic Lifters Are Made From A Cold Formed Body With A Clipped Axle And Have 6500 Rpm Capability. These Lifters Have .120 Inch Plunger Travel And Have An 80% Fill Rate With The Test Oil. The Lifter Wheels In This Series Are .700 Inch Diameter. Recommended Spring Pressures: 100-180 Lbs Seat And 280-380 Lbs Open Pressure
Features & benefits
- .120 Inch Plunger Travel
- .700 Inch Diameter Lifter Wheel For Cam Designs Up To .370 Inch Lobe Lift
- Made From A Cold Formed Body With A Clipped Axle And Have A 6500 RPM Capability
- Made In USA
- Recommended Spring Pressure 100-180 Lbs Seat Pressure And 280-380 Lbs Open Pressure
- Updates Vintage Engines To A Modern Hydraulic Roller Lifter
Information
Note: All Lifters With A Tie-Bar Are Designed To Be Installed In Either Retro-Fit Engines Or Engines Originally Equipped With Roller Lifters
Application summary
| Year | Make / model |
|---|---|
| 1963 | Ford 300 |
| 1966-1968 | Ford Anglia |
| 1958-1959 | Ford Club |
| 1966-1970 | Ford Cortina |
| 1958-1971 | Ford Country Sedan |
| 1958-1971 | Ford Country Squire |
| 1958-1960 | Ford Courier Sedan Delivery |
| 1964-1971 | Ford Custom |
| 1958-1960 | Ford Custom 300 |
| 1964-1971 | Ford Custom 500 |
| 1958 | Ford Del Rio Wagon |
| 1958-1959 | Ford F-100 |
| 1964-1976 | Ford F-100 |
| 1975-1976 | Ford F-150 |
| 1958-1959 | Ford F-250 |
| 1964-1976 | Ford F-250 |
| 2008-2010 | Ford F-250 Super Duty |
| 1958-1959 | Ford F-350 |
| 1964-1976 | Ford F-350 |
| 2008-2010 | Ford F-350 Super Duty |
| 1975-1977 | Ford F-500 |
| 1958-1970 | Ford Fairlane |
| 1966-1970 | Ford Falcon |
| 1959-1967 | Ford Galaxie |
| 1962-1971 | Ford Galaxie 500 |
| 1964-1969 | Ford GT40 |
| 1965-1971 | Ford LTD |
| 1971-1973 | Ford M-400 |
| 1974 | Ford M-450 |
| 1970 | Ford Maverick |
| 1966-1970 | Ford Mustang |
| 1965-1974 | Ford P-350 |
| 1958-1971 | Ford Ranch Wagon |
| 1958-1959 | Ford Ranchero |
| 1966-1969 | Ford Ranchero |
| 1958-1959 | Ford Skyliner |
| 1960 | Ford Starliner |
| 1958-1960 | Ford Sunliner |
| 1958-1970 | Ford Thunderbird |
| 1968-1970 | Ford Torino |
| 1958-1960 | Ford Victoria |
| 1967 | Mercury Brougham |
| 1964-1967 | Mercury Caliente |
| 1966-1967 | Mercury Capri |
| 1961-1971 | Mercury Colony Park |
| 1964-1969 | Mercury Comet |
| 1961-1968 | Mercury Commuter |
| 1967-1970 | Mercury Cougar |
| 1963 | Mercury Country Cruiser |
| 1964-1970 | Mercury Cyclone |
| 1963-1966 | Mercury Marauder |
| 1969-1970 | Mercury Marauder |
| 1967-1970 | Mercury Marquis |
| 1961-1963 | Mercury Meteor |
| 1964-1968 | Mercury Montclair |
| 1968-1969 | Mercury Montego |
| 1961-1970 | Mercury Monterey |
| 1964-1968 | Mercury Park Lane |
| 1964-1967 | Mercury Villager |
| 1966-1967 | Mercury Voyager |
Specifications
- GTIN
- 00846163075888
- Weight
- 6.5 lb
- Height
- 1.75 in
- Length
- 15.5 in
- Width
- 9.5 in
- Life cycle
- Available to Order
- AAM brand code
- EPG
- Warehouse brand code
- FWFL
- AAIA brand code
- FWFL
Attributes
- Category
- Camshafts and Valvetrain
- Grade Type
- Performance
- Lifter Type
- Hydraulic Roller
- Material
- Billet Steel
- Maximum Outside Diameter
- .875
- RPM Capability
- 6500
- Recommended Spring Open Pressure
- 280-380
- Recommended Spring Seat Pressure
- 100-180
- Roller
- Yes
- Roller Diameter
- .700
- Series
- Street Performance Hydraulic Roller Lifters
- Subcategory
- Lifters
