Engine Pro / 08-2036T-9-005G
Part #: 08-2036T-9-005G
UPC: 846163095985
Loading...
Notify me when this item is in stock.

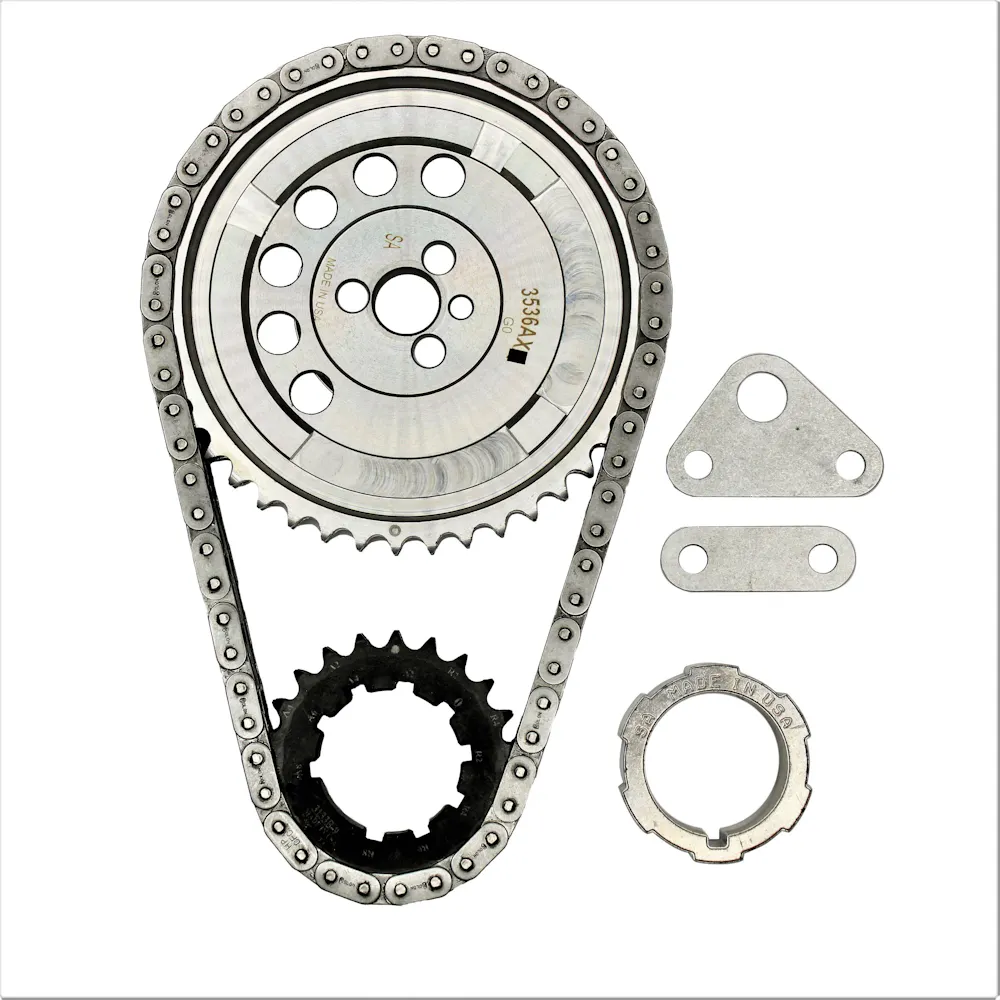

Description: Cadillac / Chevrolet V8 LS2 / LS3 Premium Billet .250 Roller Timing Chain Set; Cadillac / Chevrolet 6.0L / 6.2L / 364 CID / 376 CID V8 3-Bolt 4 Sensor Cam Sprocket Premium Billet .250 Inch Roller IWIS German Timing Chain Set Reduced .005 Inch Center Distance With Torrington Roller Bearing
Description:
Description
In the high stakes world of engine building and machine work, the parts you choose are critical to your success. That’s why leading industry professionals turn to Engine Pro® brand parts for their renowned unmatched quality, reliability and profitability. Engine Pro® products are crafted by experts, for experts, ensuring top-tier performance and durability. Our unwavering commitment to excellence means our parts not only meet but exceed industry standards, delivering superior value. Choose Engine Pro® for exceptional performance and durability that give you the competitive edge you need.
Features & benefits
- 0.250 Inch Seamless Roller IWIS German Chain Features Acoustically Balanced For Excellent Wear Resistance, Designed For High Speed Applications
- CNC Billet Steel Cam Sprocket
- Cam Timing Can Be Advanced Or Retarded 1, 2, 3, Or 4 Degrees
- CNC Heat Treated Steel 9-Keyway Crank Sprocket Markings of 2, 4, 6 & 8 Results In 1, 2, 3, 4 Degrees of Cam Advance or Retard
- Coated in Rust Preventative
- Meets or Exceeds O.E.M. Performance
- Center Distance Reduced .005 Inch
- Press Fit Torrington Roller Thrust Bearing Included
Application summary
| Year | Make / model |
|---|---|
| 2006-2007 | Cadillac CTS |
| 2007 | Cadillac Escalade |
| 2006 | Chevrolet Corvette |
Specifications
- GTIN
- 00846163095985
- Weight
- 4.3 lb
- Height
- 1.75 in
- Length
- 9.75 in
- Width
- 6.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- EPG
- Warehouse brand code
- FWFL
- AAIA brand code
- FWFL
Attributes
- Camshaft Sprocket Material
- Billet Steel
- Crankshaft Sprocket Material
- Steel
- Gaskets Included
- No
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 4
- Maximum Advance at Crankshaft
- 8
- Maximum Retard At Camshaft
- 4
- Maximum Retard at Crankshaft
- 8
- Mounting Hardware Included
- No
- Roller
- Yes
- Roller Diameter
- .250
- Sprockets Included
- Yes
- Tensioner Included
- No
- Thrust Bearing Included
- Yes
- Thrust Washer Included
- No
- Timing Chain Type
- Double Roller
- Timing Marks
- Yes
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2007 Cadillac CTS; 2007 Cadillac Escalade; 2006 Chevrolet Corvette
